Scienscope X-ray View X1800 SMT machine
,X-ray inspection machine for SMT line
,X1800 X-ray machine with warranty
-
Brand NameScienscope X-ray View X1800
-
Model NumberX-ray View X1800
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery TimeDelivery: 5-8 Working days, or considering the quantity
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

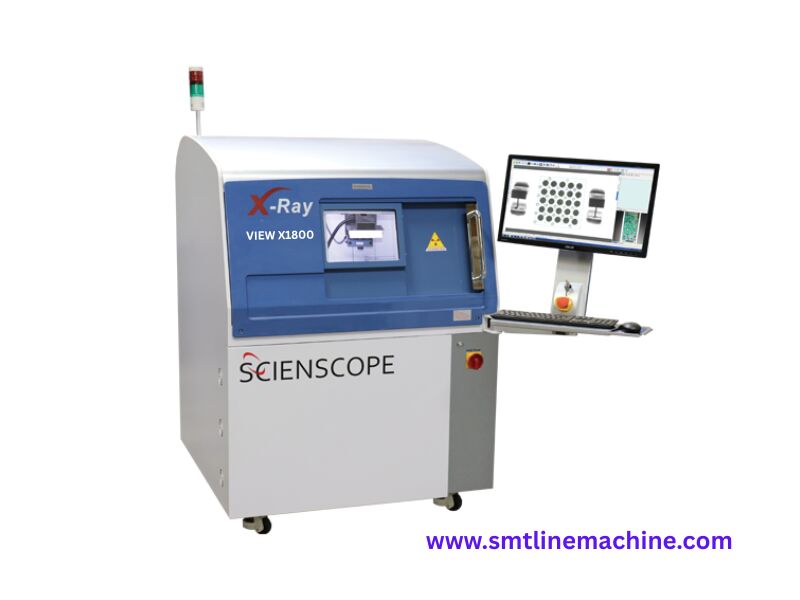

Scienscope X-ray View X1800

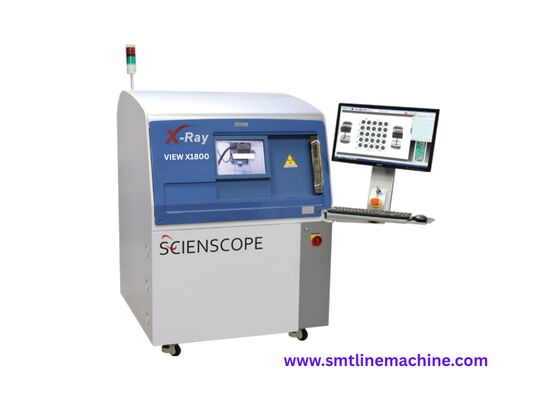

Scienscope X-ray View X1800
The Scienscope X-ray View X1800 is a versatile X-ray inspection system, expertly crafted for the thorough examination of diverse components and assemblies, with a particular emphasis on printed circuit boards. This machine excels in PCB inspection x-ray and BGA x-ray tasks, delivering advanced capabilities at a competitive price.
The Scienscope X-ray View X1800 empowers users to perform comprehensive PCB inspection x-ray and BGA x-ray analyses, pinpointing defects, assessing assembly integrity, and guaranteeing overall product reliability without the need for physical disassembly.

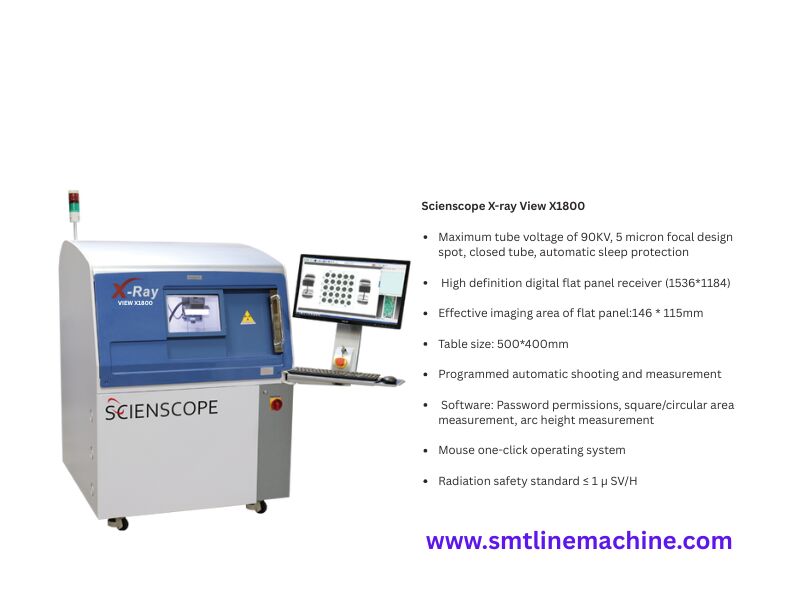

Technical Specifications
| Whole Machine | |
|---|---|
| Model | ViewX1800 |
| Weight | 800KG |
| Size | L1100*W1200*H1530(mm) |
| Power Supply | 50-60Hz/220V |
| Air Supply | Not Required |
| Total Power | 1.2KW |
| X-ray System | |
| X Tube Max Voltage | Closed tube 90KV |
| X Tube Angle | 40° |
| X Tube Current | 0.256mA |
| X Tube Focal Spot | 5μm |
| Imaging | |
| Main Camera Type | HD digital flat panel |
| Effective Imaging Area | 146*115mm |
| Pixels | 96μm |
| Main Camera Resolution | 1536*1184 |
| External Function | |
| Barcode | Optional |
| Link MES System | Optional |
| Safety | |
| Auto Safety Access Control | Door cannot be opened when X-ray is activated (electromagnetic induction) |
| Radiation Safety Standard | ≤1μsv/h |
Applications
This system is widely adopted across various sectors for quality assurance and inspection purposes. Key applications include:
- Electronics Inspection: Specifically engineered for high-resolution BGA x-ray analysis and PCB inspection, examining BGAs, connectors, and encapsulated components to ensure the highest standards of electronic assembly.
- Material Analysis: Conducting detailed inspections of aluminum die castings, molded plastics, and ceramics to identify structural imperfections.
- Aerospace and Automotive: Ensuring the reliability of critical components and assemblies through rigorous X-ray examination.
- Pharmaceuticals: Validating product consistency and detecting foreign contaminants to maintain product safety.
- Counterfeit Detection: Identifying substandard or fraudulent components, safeguarding product authenticity.
Key Features
- High-Resolution Imaging: Featuring a micro-focus X-ray tube (up to 90KV, 5-micron spot) coupled with a high-definition digital flat panel detector for exceptionally clear imaging.
- Tilting Functionality: Providing oblique angle viewing to enhance inspection versatility and access hard-to-reach areas.
- Large Inspection Area: Accommodating a wide array of sample sizes with its generously sized table.
- Software Suite: Equipped with intuitive software for automated image capture, precise measurement, and in-depth analysis, including BGA void detection.
- Safety: Constructed with a robust steel-lead-steel enclosure to ensure full radiation containment and operator safety.
Advantages
- Detailed Inspection: Delivering high-resolution images that enable the precise identification of defects and anomalies. Perfect for thorough PCB inspection x-ray, ensuring the integrity of solder joints and component placement.
- Versatility: Well-suited for a diverse range of applications and industries, offering broad applicability.
- User-Friendly: Featuring an intuitive interface and automated functions, simplifying the inspection workflow.
- Cost-Effective: Providing advanced X-ray inspection capabilities at an affordable price point, maximizing value.
- Comprehensive Analysis: Offering a full suite of software tools for detailed measurement and analysis, enhancing inspection accuracy.
About the Product
The Scienscope X-Scope 1800 is a robust and adaptable instrument for anyone requiring detailed internal imaging and analysis of components and assemblies.
Contact Information:
So, if you're in the market for equipment like this, don't hesitate to get in touch! We are committed to providing reliable products that earn our customers' trust. Contact us at +8613537875415 or Lizzy@smtlinemachine.com. We are located in Xintian Industrial Area, Baoan, Shenzhen City, China.
So, if you're in the market for equipment like this, don't hesitate to get in touch! We are committed to providing reliable products that earn our customers' trust. Contact us at +8613537875415 or Lizzy@smtlinemachine.com. We are located in Xintian Industrial Area, Baoan, Shenzhen City, China.
Packaging and Delivery Information
- Delivery: Expect your order to arrive within 5-8 business days, though this timeframe can vary based on the quantity ordered.
- Minimum Order: We accept orders for a single machine or mixed orders to suit your needs.
- Transportation: Products are shipped either in bulk or via containers, depending on the order size and destination.
- Payment Terms: Flexible payment options are available, including L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
- Price: Prices are negotiable to ensure you receive the best possible value.
- Packaging: We offer both standard export boxes and robust hardwood packages to ensure your order arrives safely and securely.
