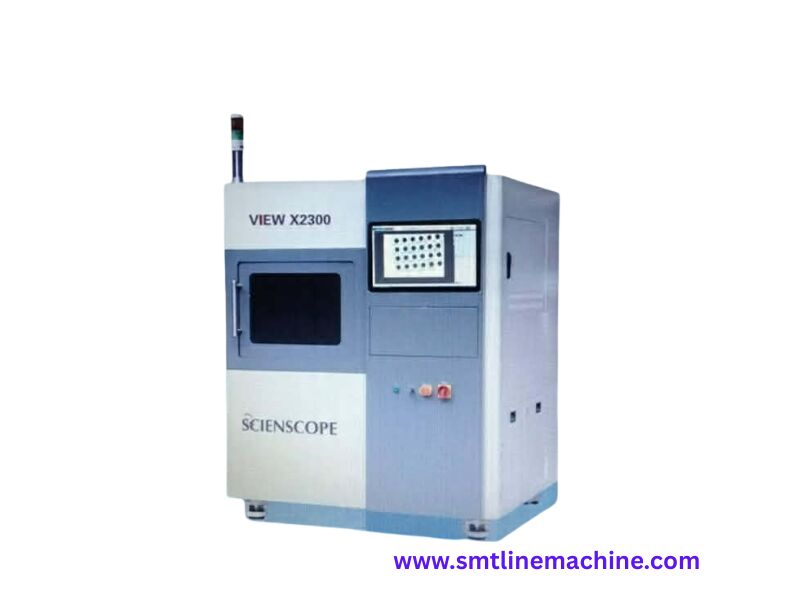

Scienscope Offline X-RAY View X2300
Scienscope Offline X-RAY View X2300
The Scienscope Offline X-RAY View X2300 is a standalone X-ray inspection system crucial for ensuring quality and pinpointing defects in various stages of manufacturing.
Designed to non-invasively peer inside components and assemblies, this system provides detailed insights without the need for physical disassembly.

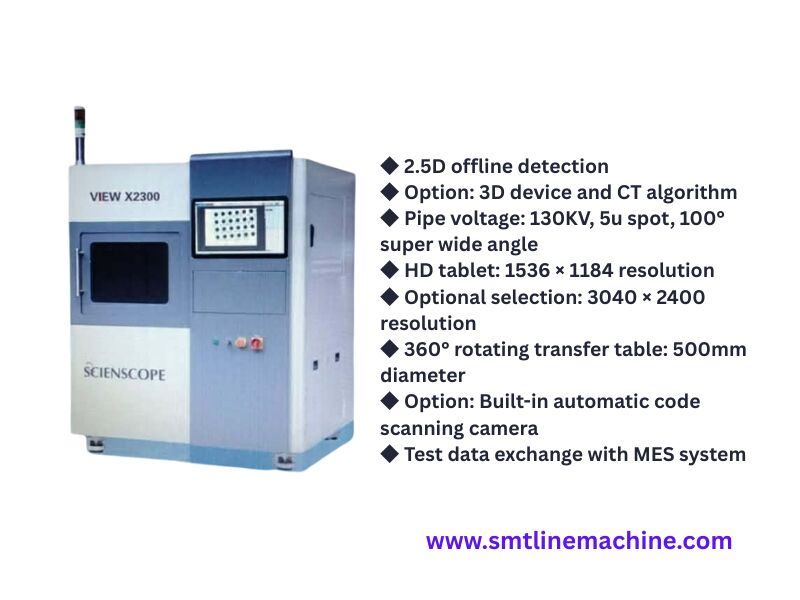

Technical Specifications
| X-ray Tube (X Tube) | |
|---|---|
| Tube Type | Transmission closed tube |
| Tube Voltage (kV) | 130 |
| Machine Power | 1.5 kW |
| Tube Current (µA) | 300 |
| Flat Panel Detector | |
| Pixel Resolution | 1536 × 1184 |
| Tilt Angle | 70° |
| Main Specifications | |
| Stage Size (mm) | 500 (diameter) |
| Stage 360° Rotation | Yes |
| X, Y, Z-axis Travel (mm) | 670 × 520 × 400 |
| Detection Range (mm) | Turntable detection range diameter 500mm |
| External Dimensions (L × W × H) (mm) | 1510 × 1530 × 1870 |
| Weight (kg) | 1550 |
| Operating System | Windows 11 |
| Power Supply | AC110-220 V VAC50-60 Hz |
| Radiation Safety | <1 µSv/h |

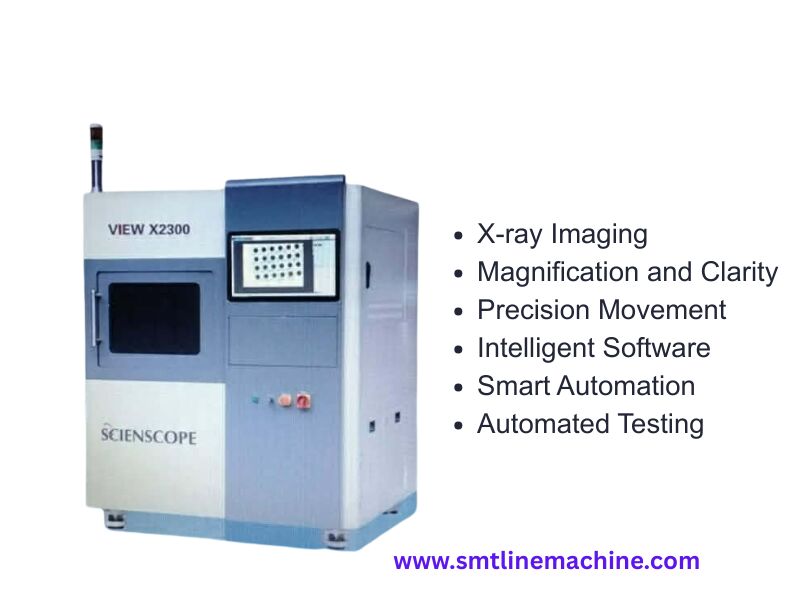

Key Features
X-ray Imaging
The system employs a reliable X-ray source, often the Thermo Scientific PXS 10, operating at 130kV and 0.15mA, to generate high-penetration images.
Magnification and Clarity
Offers powerful magnification capabilities with optical zoom up to 200x and digital zoom extending to 1200x. The high-resolution camera, typically 1920×1080, ensures clear and detailed visuals.
Precision Movement
Features a precise 4-axis table, usually with dimensions around 320 × 250 mm. It allows for extensive movement with X and Y travel ranges of 490 mm and 400 mm, respectively, and a tilt range of ±70° for comprehensive viewing angles.
Intelligent Software
Operates using software on a Windows XP platform, incorporating a built-in measurement tool.
Smart Automation
Advanced models may include self-learning AI, high-definition color cameras, and enhanced BGA (Ball Grid Array) analysis tools to improve defect detection and reduce false positives.
Automated Testing
CNC system automates testing, generates reports, and integrates with MES for streamlined quality control.
Applications
- Quality assessment of multi-layered PCBs, ensuring structural integrity and proper connections
- Identifying voids or air pockets within materials, which can compromise the strength and reliability of components
- In-depth analysis of semiconductor devices to detect manufacturing flaws
- Verification of Through-Hole Technology (THT) barrel fill to ensure proper soldering
- Safety and quality checks on lithium batteries, critical for preventing failures
Advantages
- Non-Destructive Analysis: Enables thorough inspection without damaging the test subject
- High-Definition Imagery: Delivers sharp and detailed images, facilitating accurate identification of defects
- Versatile Use: Adapts to a wide array of inspection tasks across different industries
About Our Product
Selecting our Scienscope X-Scope 2300 means choosing a partner with a strong background in X-ray technology. We focus on providing affordable X-ray options that maintain high quality and effectiveness. The X-Scope 2300 demonstrates this by delivering excellent accuracy, efficiency, and reliability.
Packaging and Delivery Information
- Delivery: Expect your order to arrive within 5-8 business days, though this timeframe can vary based on the quantity ordered
- Minimum Order: We accept orders for a single machine or mixed orders to suit your needs

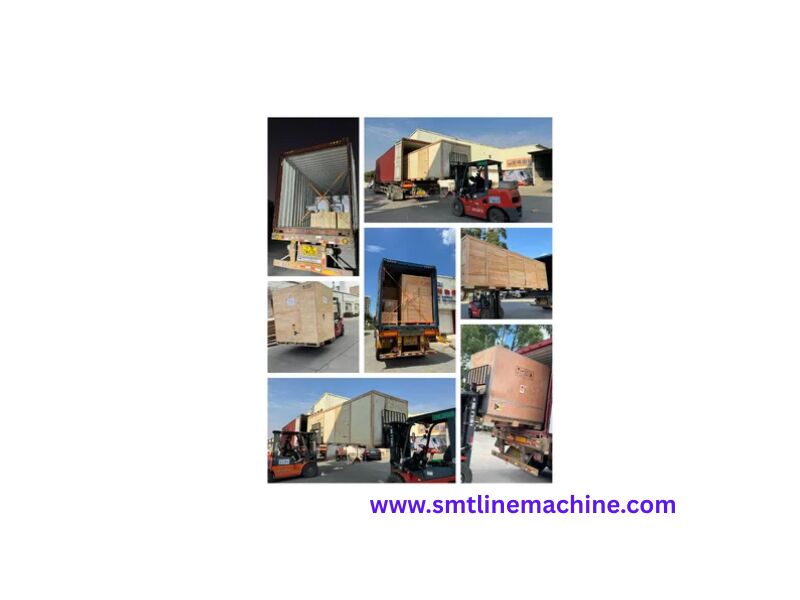

- Transportation: Products are shipped either in bulk or via containers, depending on the order size and destination
- Payment Terms: Flexible payment options are available, including L/C, D/A, D/P, T/T, Western Union, and MoneyGram
- Price: Prices are negotiable to ensure you receive the best possible value
- Packaging: We offer both standard export boxes and robust hardwood packages to ensure your order arrives safely and securely
