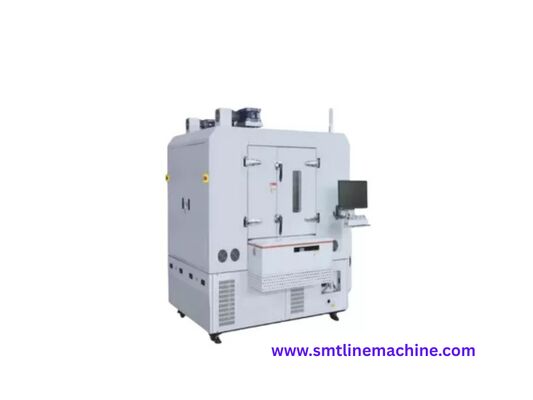

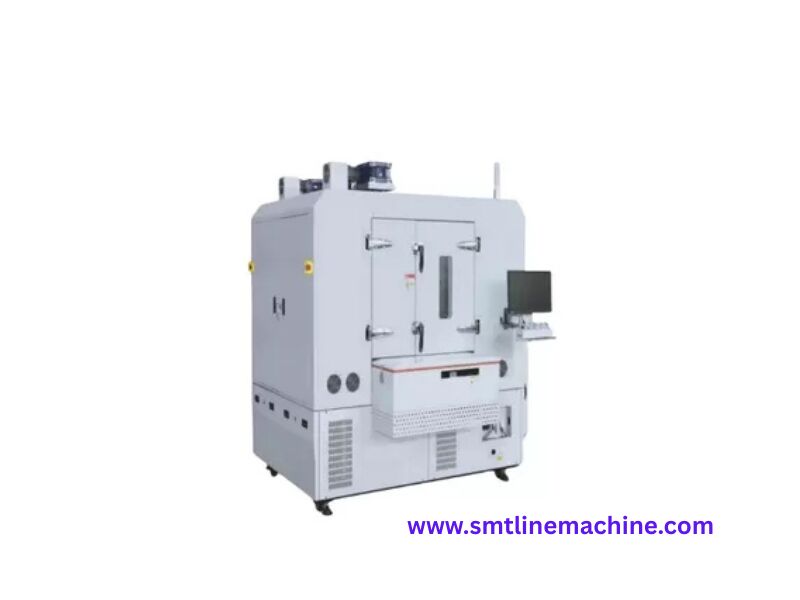

Vertical Curing Oven
Vertical Curing Oven
A VCO, or vertical curing oven, is used for curing and heating electronic materials, such as semiconductors. The process is efficient because the Vertical Curing Oven (VCO) uses circulating hot air to maintain the temperature needed for PCBA (Printed Circuit Board Assembly).
This Vertical Curing Oven is specially designed to work seamlessly alongside the production process. Its spacious design eliminates the need for manual loading and unloading of parts, saving time and effort.
Our Vertical Curing Oven can handle more boards in a smaller area, making it an excellent choice for facilities with limited space or those requiring a clean room environment.
Available Machine Specifications
| Feature | KTX-250 | KTX-450 | KTX-650 |
|---|---|---|---|
| Dimension (mm) | L1700W1920H2150 | L2100W2120H2150 | L2900W2320H2150 |
| Weight (Approx.) | 1500kg | 1800kg | 2100kg |
| Max. PCB Size (W*L) | 300*250 mm | 400*450 mm | 600*650 mm |
| Product Weight (Max.) | 3kg/layer | 3kg/layer | 3kg/layer |
| Component Height | 25.4mm | 25.4mm | 25.4mm |
| PCB Process Edge | 5mm | 5mm | 5mm |
| Number of Layers | 60 layers | 60 layers | 60 layers |
| Conveyor Height | 900±30mm | 900±30mm | 900±30mm |
| Min. Output | 12s/pcb&pallet | 12s/pcb&pallet | 12s/pcb&pallet |
| Entrance & Exit | In-line | In-line | In-line |
| Lifting System | Servo motor | Servo motor | Servo motor |
| Rail Width Adjustment | Manual/Automatic | Manual/Automatic | Manual/Automatic |
| Setting Temperature (Max.) | 250℃ | 250℃ | 250℃ |
| Heating System | 8 heating modules | 8 heating modules | 8 heating modules |
| Heating Power | 8*6KW | 8*8KW | 8*9KW |
| Temporary control accuracy | ±1℃ | ±1℃ | ±1℃ |
| Inner Temp. Difference | Less than ±2℃ | Less than ±2℃ | Less than ±2℃ |
| N2 Configuration | Optional | Optional | Optional |
| Cleanroom Class | Optional | Optional | Optional |
| Remarks | Non-standard customizable | Non-standard customizable | Non-standard customizable |

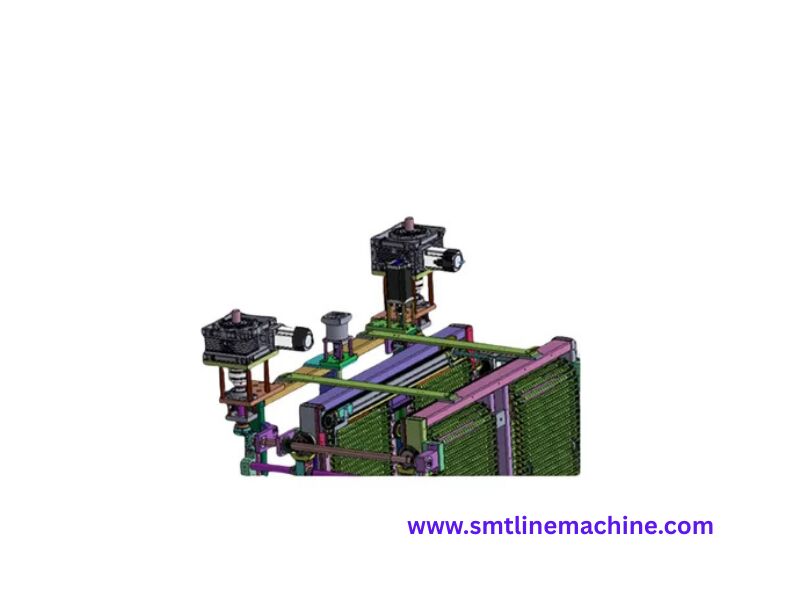

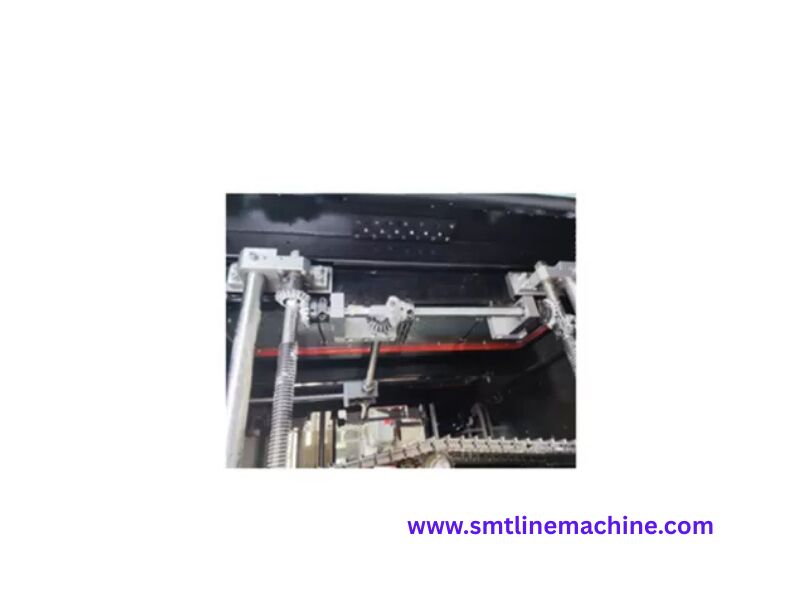

Servo motors provide the SMT VCO system with precise and powerful vertical movement, enabling it to handle heavy loads with rapid response times.
Our SMT VCO system runs smoothly and reliably using a special high-temperature optical fiber. This technology provides accurate spotting and guidance for SMT PCBs, eliminating concerns about jams or board drops due to motor or mechanical issues. The system automatically resets after each board, ready for the next operation.

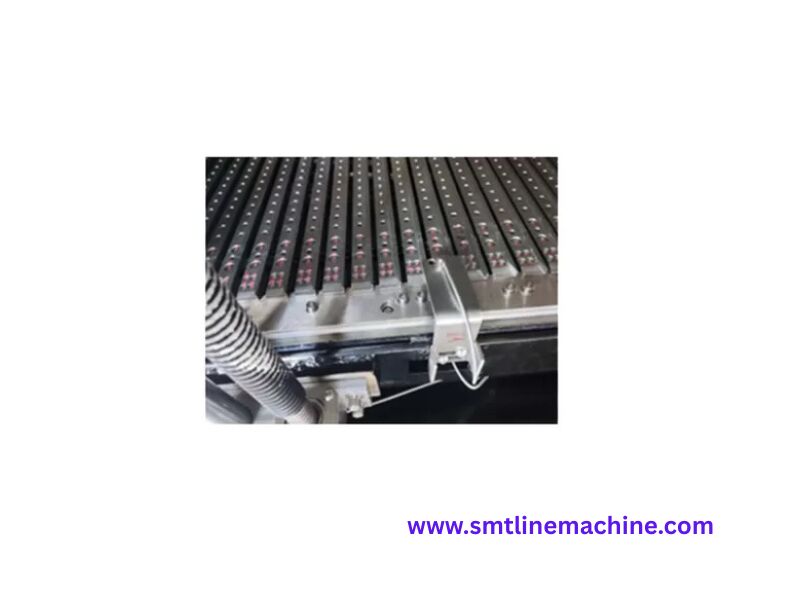

Our patented transport system features specialized slots that clamp onto the support bar, maintaining chain stability and preventing tangles. This design eliminates SMT PCB jams and accidental drops, ensuring reliable and efficient operation.
Why Choose Us?
Choosing the right SMT vertical curing oven supplier is critical for your business. We offer a complete package of value, reliability, and affordability.
As a direct supplier of SMT vertical curing ovens, we maintain complete control over our supply chain, ensuring you receive competitive pricing without sacrificing quality. Our machinery is built to last using high-quality components and rigorous testing procedures.
With buyers from numerous countries already benefiting from our SMT vertical curing oven equipment, you can be confident in making a sound investment. From initial consultation to ongoing support, we're committed to providing a seamless experience.
Choose us for SMT VCO machinery that delivers exceptional performance, lasting value, and a proven track record of customer satisfaction.
Global Trust and Recognition
Trust is the cornerstone of our global reputation. This trust allows us to forge strong, lasting relationships with clients worldwide.
It's the driving force behind our success and the reason why customers continue to choose us as their preferred partner for SMT VCO equipment.
Professional Training for Peak Performance
To ensure seamless operation and provide exceptional assistance to our valued customers, we are committed to ongoing professional training.
This training equips our team with the knowledge and skills necessary to efficiently manage all operational aspects and expertly address any SMT machinery inquiries from our customers.
About Our Company
We're dedicated to ensuring your SMT vertical curing oven orders are handled with care and precision, arriving quickly and in top condition.
This commitment reflects our core values of quality, reliability, and customer satisfaction. Looking ahead, we are driven to become a top global supplier of SMT Machinery, constantly innovating and striving to exceed expectations in every aspect of our business.
We want to be known not just for our products, but for our unwavering dedication to our customers' success.
