Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans

Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans

Products - SMT Line Machine
  • High Light

    Wave Solder Infeed PCB Conveyor

    ,

    PCB Conveyor With Cooling Fans

    ,

    Wave Solder Outfeed Conveyor

  • Component Clearance
    TOP<30mm，BOT＜75mm
  • Dimensions
    2000mm*1500mm*1800mm
  • Pcb Max Size
    800*360mm
  • Pcb Min Size
    50X50mm
  • Power
    Maximum 220V
  • Quality
    100% Tested
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE
  • Model Number
    Wave solder cooling unloader belt conveyor
  • Minimum Order Quantity
    1
  • Packaging Details
    woodbox
  • Delivery Time
    5 days
  • Supply Ability
    negotiation

Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans

  • Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans
  • Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans
  • Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans
  • Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans
  • Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans
Get Price Contact Now

Application

The Wave Solder Outfeed Conveyor is used to unload PCBs from the inclined conveyors of wave solder and to then lower the soldered boards to a standard conveyor height.Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans 0

Outstanding Features
1. This wave solder outfeed conveyor is intended for discharging PCB boards that have undergone wave soldering process.
2. Both ends of this wave solder unloader conveyor can be adjusted by lead screw.

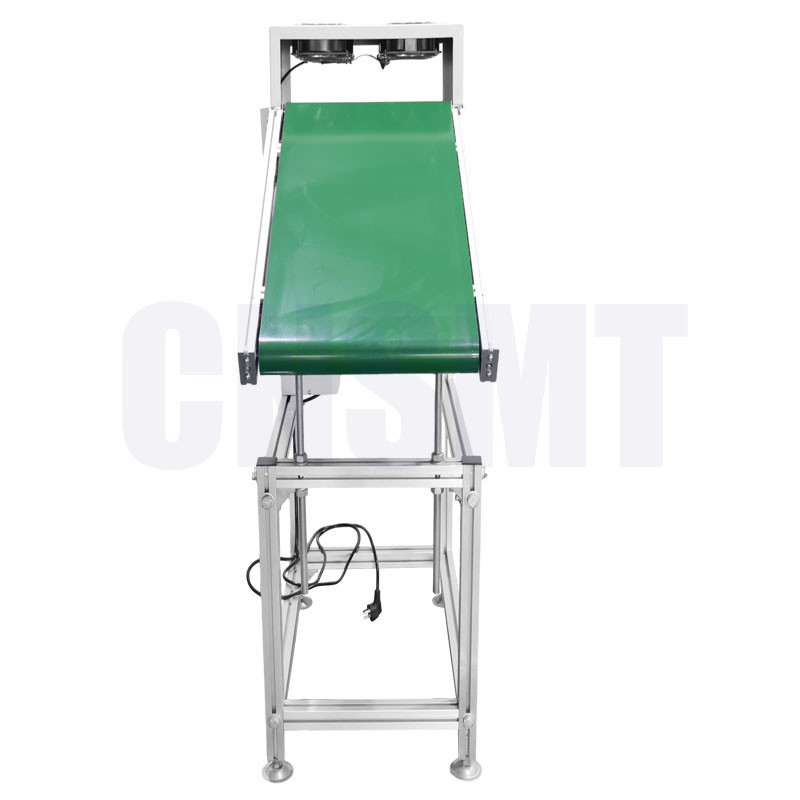

3. An anti-slip belt is applied for stable transfer. Plus, the conveyor speed can be reset.

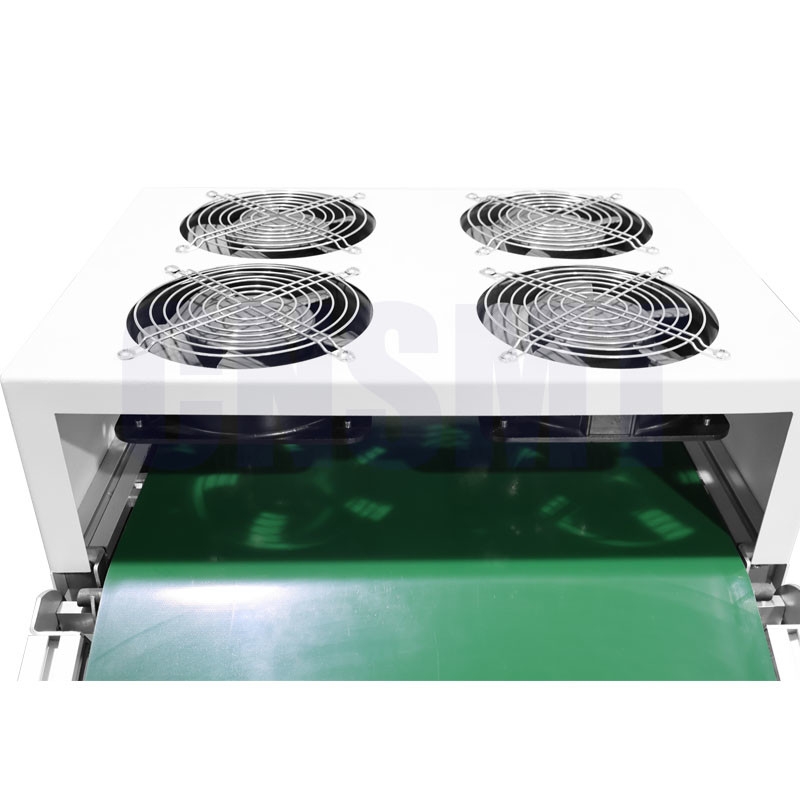

4. Fans are installed above the belt to expedite the cooling of circuit boards.Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans 1

Technical Parameters






Items Specifications
Conveyor motor 220V, DPG, 40W
Conveyor width 0-300mm
Conveyor speed 0-1.8 meters/minute, adjustable



Our Wave solder cooling unloader belt conveyor is a wave unloading system that accepts PCBs from the wave (on edge rail) at an incline angle and then re-angles the PCB to a decline conveyor to return the PCB back to SMEMA height. The standard version uses 3mm ESD edge belts to transfer PCBs. Our HD series is for pallet transfer and uses our heavy duty ESD timing belts. Pallets are still transferred on 3mm edge but the belts have a greater durability for heavier weighted pallets.Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans 1

Detail:

Brand Name CNSMT
Place of Origin China
Certification CE
Minimum Order Quantity 1
Delivery Time 5days
Price Negotiation
Color Computer Grey
Packaging Details Wooden Box
Type Automatic



Customized Services for SMT Line Machine:

- Customized Branding with CNSMT logo or branding on the machine

- Different Models available for different production needs

- Optional CE certification for international standards compliance

- Minimum order quantity of 1 unit to cater to small and medium scale production needs

- Competitive pricing with flexible negotiation options

- Secure packaging in wooden boxes for safe transportation

- Fast delivery within 5 days to meet urgent production requirements

- High supply ability of 100 units to meet large scale production demands

- Available in a sleek Computer Grey color to match modern production facilities

- Made in China, ensuring high quality and cost-effective production

- Flexible delivery terms including EXW, FOB, and CIF to suit different shipping preferences

- Fully automatic operation for efficient and time-saving production process

- Low power consumption of 600W for energy efficiency

- Optional PCB mini loader without magazine for more compact and space-saving design
