SMT Juki Feeder Calibration Jig 50X CCD Camera 220 Volts

SMT Juki Feeder Calibration Jig 50X CCD Camera 220 Volts
SMT Juki Feeder Calibration Jig 50X CCD Camera 220 Volts

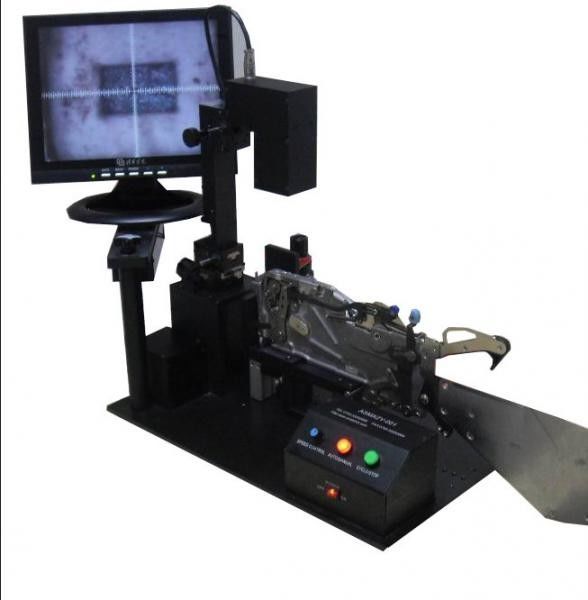

Large Image :  SMT Juki Feeder Calibration Jig 50X CCD Camera 220 Volts

Product Details:
Place of Origin: JAPAN
Brand Name: JUKI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Woodenbox
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union,paypal

SMT Juki Feeder Calibration Jig 50X CCD Camera 220 Volts

Description
Machine Type: Feeder Calibration Machine Usage: For Feeder Correction / Can Use Any Type Of Feeder
Net Weight: 35 Kilograms Gross Weight: 45 Kilograms
Power Usage: 220 Volts Air: 5 Kilograms Per Cm2
High Light:

SMT Juki Feeder Calibration Jig

,

50X CCD Camera Feeder Calibration Jig

,

220 Volts Feeder Calibration Machine

Juki Feeder Calibration Jig







The Juki feeder calibration jig is a feeder calibration machine that is used in most SMT assembly. If you are looking for quality Juki feeder calibration jigs, you have come to the right place!



This feeder calibration machine is easy to use and easy to assemble. With its compact body design, you will not have a hard time placing it anywhere. The machine measures 500 x 350 x 500 mm only, so it will not take too much space.



Dimensions and Details:



Machine Type Feeder calibration machine
Usage For feeder correction / can use any type of feeder
Size 500 x 350 x 500 mm (L/W/H)
Net weight 35 Kilograms
Gross weight 45 Kilograms
Power Usage 220 Volts
Air 5 Kilograms per cm2



Specifications & More Details About The Juki Feeder Calibration Jig



  • The Juki feeder calibration jig is a very user-friendly feeder correction machine that can be easily used by an operator with minimal training. It is fully optimized and uses high precision technology for a more improved work result every single time.

  • It is known for its precise work that can easily detect errors in feeders. It can accurately measure height, position, pressure and more.

  • It comes with a 10 inch LED clear view monitor.

  • LED light lamp for better eye protection.

  • 50X CCD Camera

  • Can continuously monitor feeder quality to improve high quality material rate.

  • Works with a wide variety of feeders like the following:

  • Fuji CP6

  • Yamaha

  • Sanyo

  • Panasonic

  • Universal

  • Sony

  • Juki

  • Samsung



  • Can monitor and adjust X and Y Axis effectively

  • Camera axis adjustment is available

  • Power supply 220 V

  • Equipped with a black and white cross reference cursor

  • Step function and automatic functions are available

  • Equipped with a feeder control feature

  • Feeder control tape:

  • 8 x 2 mm

  • 4 mm

  • 16 * 12 * 24 * 8 mm



The Juki feeder calibration jig is very easy to use even by an entry level operator. To use it, you may request for a video tutorial or you can also ask for a live demo of the machine via online or you can also visit our warehouse for you to see it personally.



To know more about the Juki feeder calibration jig, and how to place an order for it, below are the different questions asked by our past customers.

Frequently Asked Questions



Question: I would like to place an order for the Juki feeder calibration jig. Where are you exactly located?

Answer: If you are ready to place an order for the Juki feeder calibration jig, please send us an email regarding the number of machines that you need, as well as your name and shipping address.



Please take note that we offer big discounts for orders of more than one quantity.



Once we receive your email, we will send you a quote together with the shipping cost.



We are located in Shenzhen, China. If you want to pick up your machine instead of shipping, we can also arrange that.



Questions: Do you have a minimum order quantity?

Answer: No we don’t. We can ship your order even if you will just order one machine. We can also make suggestions on what our customers order together with the Juki feeder calibration jig so that you can maximize your shipping cost.



Question: Does the Juki feeder calibration jig come with an English Manual?

Answer: Yes. Since majority of our customers are outside China, we made sure that our machines come with an English manual for better understanding.



We also offer free technical support that will be conducted by our professional team of Engineers who can also speak in English.

Question: What happens if I need technical assistance with my Juki feeder calibration jig in the future? Can you still cover that for free?

Answer: Yes. Also, if your machine is still under warranty, if you need spare parts, we can also send it for free. Otherwise, we can ship it at a discounted cost.



Question: What are the payment options for International Customers? Will you require a down payment for orders?

Answer: Here are the different payment options we have for international customers:

  • Bank transfer

  • Telegraphic Transfer

  • Credit Card

  • PayPal



To confirm your orders, you must pay at least 30% of the total cost. Once we receive your down payment, we will do the final quality check on your machine to make sure that it will reach you with tip top condition.



Once done with the quality check, which usually takes 2 to 3 working days upon receipt of your payment, we will notify you that your machine is ready for shipping. You must settle the balance of your order before we arrange the shipping.



Shipping takes 10 to 15 working days, depending on your actual shipping location. We will include the exact information in our email for the shipping days.



Question: I just need the actual machine of the Juki feeder calibration jig without the monitor. Is that possible?

Answer: Yes, we can provide you with just the actual machine only and without the monitor. We will send you a quote for that.

Question: Do you also offer training for our operators who will be using the Juki feeder calibration jig?

Answer: If you need training after placing an order for the Juki feeder calibration jig, Yes we can do that. But take note that the machine comes with a video tutorial and free technical support. If you need further training than the ones already included, let us know.



These are the different questions asked by our customers regarding the Juki feeder calibration jig. If you do not see the information that you are looking for, kindly let us know, so that we can answer it for you directly.



Here at CNSMT, we are committed in bringing you the best SMT machines and the best quality of service before and after sales. Just let us know what you need, and we will try our best to deliver.
