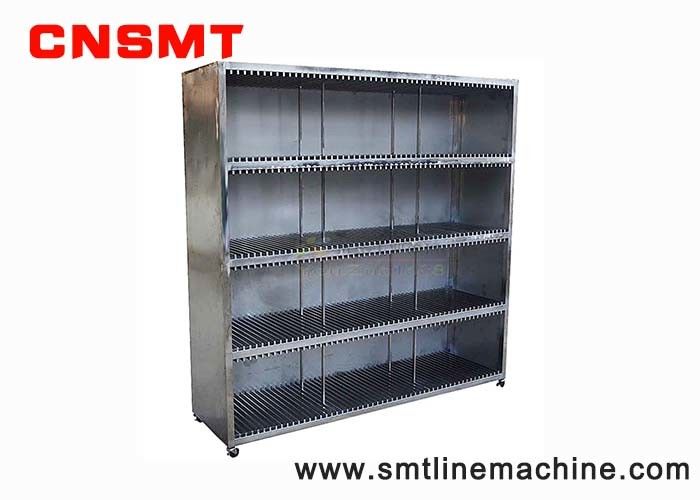

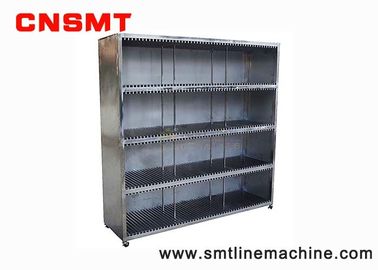

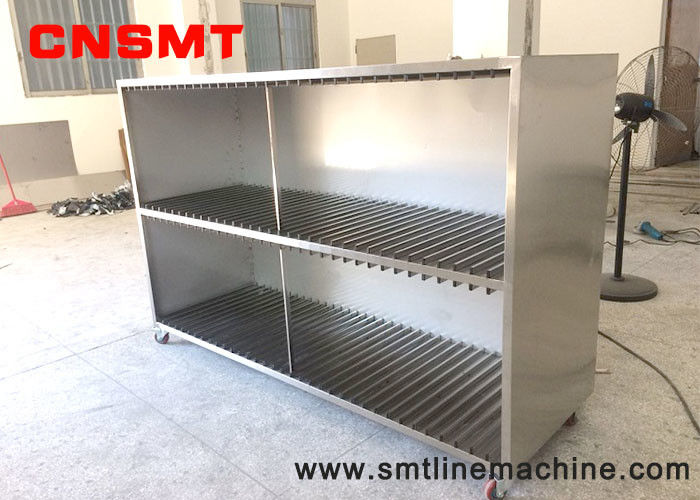

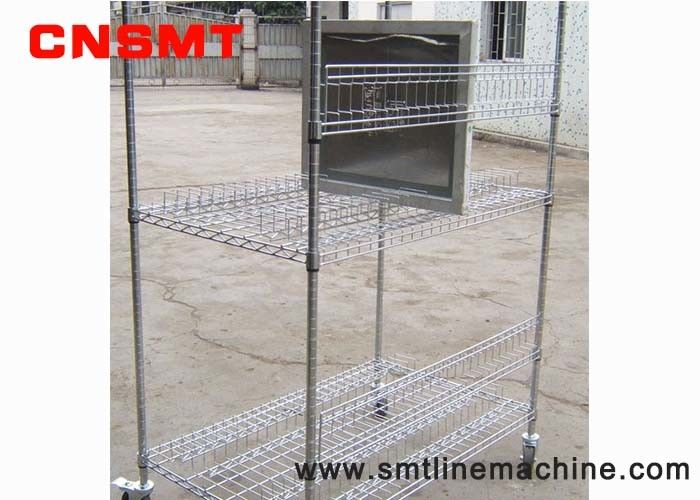

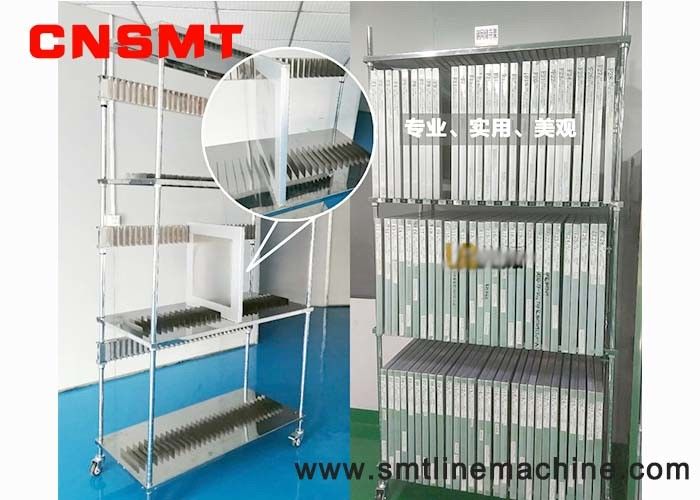

SMT STENCIL STORAGE CART Manufacturer in China
CNSMT is a leading company that manufacturer SMT stencil storage trolley in China, we are the one-stop shop of smt stencil cart supplier worldwide,
To be honest, we export hunderds of these stencil rack per year, and we accept customiz all different kinds of smt stencil trolley, we can make all the size and type that you need.Please ask us for a quote if you are interesting our product!
This smt stencil trolley cart will save large space in your smt production line factory, if your smt line have a lot of smt stencils and not too much space for storage them, then this stencil rack is necceary for you
Material:202/304/209 stainless steel material
Scope of use: for screen printing steel mesh storage / turnover
Non-standard products: This product is mostly customized for customers, and the size specifications are set according to the customer's steel mesh size, thickness, and storage quantity.
Specification style: It is sealed by stainless steel plate and can be taken with door.
SMT stainless steel mesh cabinet is widely used in SMT processing, home appliances, light industry, electronics and other production enterprises,
The SMT STENCIL STORAGE CART has anti-bending, anti-aging, acid and alkali resistance, oil resistance, high temperature resistance, non-toxic and odorless, high bearing strength, easy to clean, make the SMT steel mesh stacked neatly, easy to manage.
The product can be sized according to the customer's steel mesh size, thickness and storage quantity, so as to achieve the most reasonable loading,
Effective use of plant space, increase steel mesh storage capacity, can be used in various warehouses, production sites and other occasions, saving production costs,
SMT steel grids help to complete the generalized and integrated management of the storage of production items, which is more in line with the environmental requirements of SMT dust-free workshops and production management
SMT SMT STENCIL STORAGE CART, SMT STENCIL STORAGE CART frame, steel mesh cabinet, non-calibrated to make various specifications
1. Estimated outer size: This size parameter is calculated and slightly deviated from the actual product size, all of which are cabinets without doors. If there is a door, the depth (width) of the size will be 15-30mm more. And the acrylic board inside the door is all installed by the customer (to prevent transportation damage).
| L1560 * W670 * H1340mm (can put steel mesh 650 * 550 * 35mm60 two layers) |
| L1410 * W670 * H1340mm (can hold steel mesh 650 * 550 * 30mm60 bit two layers) |
| L1710 * W750 * H1680mm (can put steel mesh 736 * 736 * 40mm in two layers of 60 positions) L1160 * W750 * H1680mm (can put steel mesh 736 * 736 * 40mm in two positions of 40 layers) L1560 * W750 * H1680mm (can put steel mesh 736 * 736 * 35mm60 bit two layers |
| L1110 * W485 * H965mm (can put net 370 * 470 * 20mm60 two layers) |
| L1560 * W435 * H1260mm (can put net 420 * 520 * 35mm60 two layers) |
| L1110 * W540 * H1510mm (can put net 420 * 520 * 20mm90 three layers) |
2. The number of layers that can be put: 2 layers, the number of steel meshes that can be stored in each layer: 20 ~ 30PCS, the total number of two layers is 40 ~ 60PCS
3. Guide slot method: vertical insertion,
4. Specification: A. Groove depth: 20mm, B. Groove width: 25 ~ 45mm, C. Groove length: 650mm, which is also the specification of the length of one side of the steel mesh, D: Grid pitch: 10mm can be customized according to customer requirements
5. Main material: 201 #/304 stainless steel tube and stainless steel plate, tube material specification: 30 * 30, stainless steel plate thickness: 1.0mm,
6. Carrying weight: 450KG for whole vehicle, 225KG for each layer
7. Caster size: 3 inch caster 12. Tube thickness: 1.0mm ± 8c
8. Doors: There are two types, one is the double door, the other is the left and right sliding doors, and the materials are made of acrylic board
