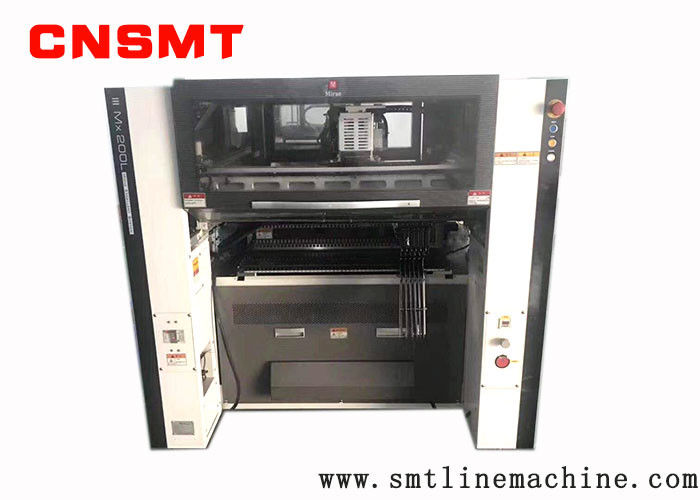

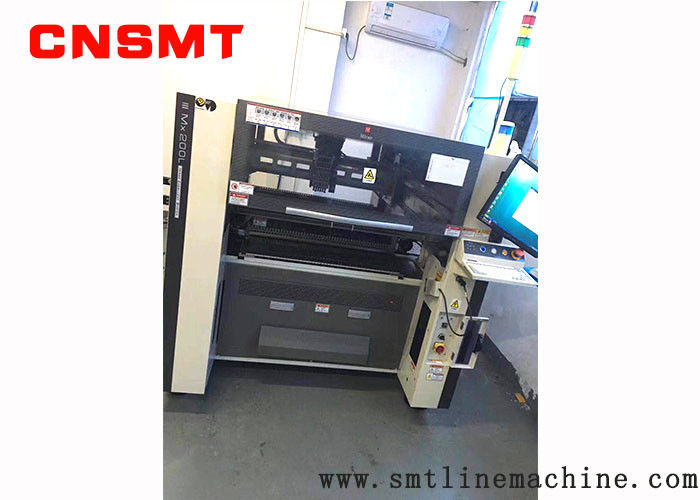

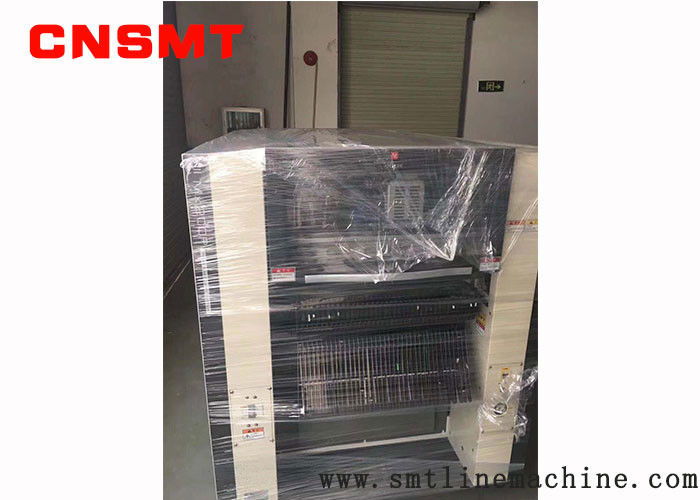

High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P

High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P
High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P
High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P

Large Image :  High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P

Product Details:
Place of Origin: China
Brand Name: CNSMT
Certification: CE
Model Number: Mirae MX200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Woodenbox
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 10pcs/day

High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P

Description
Product Name: Mirae MX200l Dimensions: 1,450 X 1,850 X 1,500
Voltage:: 110V/220V Weight: 1660Kg
Lead Time: 1-2days Application: Smt Pick And Place Machine
High Light:

smt assembly machine

,

smt aoi machines

CNSMT MX200 MX200L MX200P smt line pick and place machine support 1200mm led different size smt used machine

CNSMT MX200 MX200L MX200P smt line pick and place machine support 1200mm led different size smt used machine


Keyword
smt meaning
best pick and place machine
smt process flow chart pdf
smt machine price
smt machine manufacturers
smt machine programming
smt inspector
smt assembly machine
pick and place machine programming
solder paste stencil printer
solder dipping equipment
used electronics manufacturing equipment
pick and place service
dek stencil printer
used assembly equipment
used pick and place equipment
manual smt stencil printer
smt feeder types
what is smt in hindi
smt manufacturing process flow
electronic manufacturing equipment auction
smt flow chart
manncorp linkedin
single phase reflow oven
pick and place machine for pcb assembly
pcb solder paste printer
le40v pick and place price
manncorp reflow oven manual
smt speed
smt kaizen


Specification:



Korea Future Mounter Mx200
Future Mx200 CPH (IPC 9850) 23,000 CPH
Future Mx200 HEAD 6 Module
Future Mounter Mx200 Board Size 410×460×5.0mm
Future Mx200 Component Size 0201mm - 20mm
Future Mx200 Dimension Size (W × D × H), Cover Only 1, 200 × 1, 900 × 1,500


Future mirae placement machine MX200, future mirae placement machine MX200. Future mirae placement machine MX200

First, technical parameters:

(A), placement speed:

Mx200L:

IPC9850 standard: 21,000 CPH (0.171 sec/chip);

Theoretical value: 23,000 CPH (0.157 sec/chip).

Mx200LP:

IPC9850 standard: 15,000 (QFP 1,200) CPH (0.240 sec/chip);

Theoretical value: 17,000 CPH (0.212 sec/chip).

(B), the number of placement nozzles:

Mx200L : 6 Modules

Mx200LP: 4 Modules + 1 Precision

(B), placement accuracy:

Mx200L : CHIP: ±0.050mm;

Mx200LP: CHIP: ±0.050mm; OFP: ±0.025mm

(4), component mounting range:

Mx200 : Metric: 0603 ~ □ 18mm × 10mm (H: component height)

Mx200P: Metric: 0603 ~ □ 50mm × 20mm (H: component height) (rectangle: 90mm × 30mm) / 0402mm option

(5), substrate size:

Mx200L/ Mx200LP:

Standard size (L × W × T): 1200 × 460 × 5.0mm (option)

Substrate weight: 2.0KG

(6) Number of feeders:

Mx200L/ Mx200LP:

Feeder No.100pcs (8mm Feeder Benchmark)

(7), machine weight:

Mx200L/ Mx200LP:

Machine Weight: 1,200 kg

(eight), power supply

Mx20L0/ Mx200LP:

Power: 200/208/220/230/240/380/400/415/430V50/60HZ

(9), rated power

Mx200L/ Mx200LP:

Power rating: 3KVA

(10), using air pressure

Mx200L/ Mx200LP:

Air pressure: 0.54Mps

(11) Air consumption:

Mx20L0:

Air consumption: Standard status: 180NI/min

Mx200LP:

Air consumption: Standard status: 160NI/min

(12), machine size:

Mx200/ Mx200P:

Machine Size (W × D × H): 1,600 × 1,900 × 1,500mm

(12), operating language:

Mx200L/ Mx200LP:

Chinese/English/Korean


5. Manufacuture of SMT FEEDERS AND NOZZLES
4. BUY AND SELL USED EQUIPMENT1. SMT FULL LINE SOLUTIONService:5.WE sell and buy used equipmentS long-term4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request2. Most orders ship within 1~7days after payment1. We ship to world wideShipment:Delivery time:Within 1~3 working daysPackaging details:VACUUM&WOODENBOXPackaging & Shipping3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER

6. WE HAVE PROFESSIONAL ENGINEER TEAM
Company Information:
Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005
1. registered capital of 6 million yuan and more than 60 employees.
2. The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
3. Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.
4. The sales volume of products reached more than 200 units in half a year.
5. Our philosophy: integrity, strength first, wholeheartedly for the customer.
6. Our company adhering to the customer first, service-oriented business philosophy,
benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.

High Placement Accuracy Smt Line Pick And Place Machine CNSMT MX200 MX200L MX200P 0

Business Scope:
1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,,SIEMENS,ASSEMBLON,Mirae, SONY,...
2.SMT Full-auto printer&semi-auto printer
3.SMT reflow oven& wave solder machine
4.SMT loader and unloader
5.SMT conveyor
6.AOI, SPI
7.SMT peripheral equipment.
8.Insert machine
9.Machine spare parts such as feeders nozzles
10.Full line solution service
