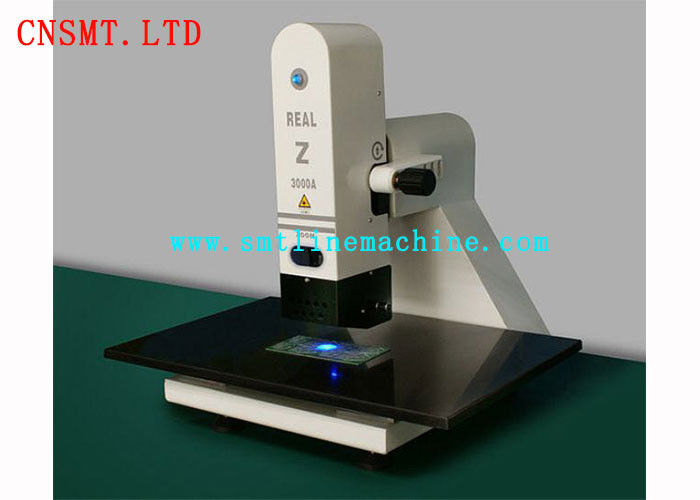

REAL-Z-3000A 2D SPI German Thickness Gauge Non-contact Solder Paste Inspection 2D Solder Paste Thickness Test
REAL-Z-3000A 2D SPI German Thickness Gauge Non-contact Solder Paste Inspection 2D Solder Paste Thickness Test
Specification:
Product details of 2D solder paste thickness gauge
First, product features
1, a good operation interface, easy to operate
2, the method of measuring the software, eliminating the error caused by PCB deformation, can compensate for the impact of green oil and copper thickness on the volume results
3, granite platform, wear-resistant, not deformed, not easy to generate static electricity
4, dense hanging grid as a measurement reference, instant calibration measurement results
5, easy to measure large size PCB
6, equipment design life of more than 10 years
7, automatic standby protection laser generator, life cycle several times
Second, product features
1, with a fully enclosed precision grating as a measurement reference, instant calibration measurement results, full closed-loop feedback, high precision. The measurement system does not depend on a wear-resistant screw motor, which has good precision retention and low failure rate.
2, using the relative measurement method to eliminate the error of PCB deformation, can compensate for the error caused by the thickness of green oil and copper foil.
3, large measuring range, can directly measure the double panel, can also measure the depth of the V-Cut groove other than the solder paste, components, BGA solder ball height.
4, granite measuring platform, wear-resistant, not easy to deform, no static electricity, can measure the PCB area.
5, integrated solid base, good rigidity. Adjustable level shock absorber feet.
6, large-scale stepless zoom optical lens, high magnification, suitable for large pads to 0201, 01005, 0.2mm fine pitch IC, BGA, CSP, etc., flexibility.
7. When the measuring laser beam is applied to the surface to be measured, the optical lens automatically focuses on the surface to be measured. The focal length automatically remains the same after zooming.
8, laser generator with automatic standby protection, life cycle several times. Laser brightness adjustment is convenient.
9, color camera, easy to identify the various features on the PCB. Can take pictures and videos. Hot swappable USB interface.
10, long-life LED lighting, color can be switched to PCB board measurement of various colors. Lighting brightness adjustment is convenient.
11. Monitor and analyze several production lines at the same time. It has group management and one-button switching function of the tested products. Each production line is counted separately. Each product can have independent judgment standards and option settings, and it can be judged automatically or not.
12. Real-time refresh statistical parameters and charts, with automatic calculation functions such as average value, standard deviation, Cpk, non-performing rate, distribution map, trend chart, X bar-R control chart, flexible setting of statistical time period, automatic generation and printing Complete report.
13. Optional measurement of length, width, angle, ratio, side length, area, coverage, volume, weight and automatic judgment.
14. Raw data can be exported in Excel or text format.
15, automatic save function, suddenly power off without losing data. With a general-purpose computer, the installation is easy without the need to change the hardware.
16. The operation and software interface is simple and the measurement speed is fast.
Third, the product parameters
| 1, measurement principle: relative method, scale reference |
| 2. Resolution: 0.001 mm |
| 3. Absolute accuracy: ≤0.003% |
| 4, repeatability: ≤0.01% |
| 5, green oil and copper foil error compensation: support |
| 6, PCB deformation error elimination: support |
| 7, range: 30 mm |
| 8, optical magnification: 50 - 360X continuous stepless zoom |
| 9, field of view: 10 x 7.5 - 1.2 x 0.8 mm on-demand adjustment |
| 10, the maximum can accommodate: PCB 400 x 600 mm |
| 11, the smallest measurable components: 0201, 01005, 0.2mm fine pitch IC, BGA / CSP |
| 12, lighting color: white, green, blue and fully off can be switched |
| 13, the life of the lighting source: ≥ 1 million hours |
| 14, laser wavelength and power: 650nm, micro power <5mW |
| 16, laser life: 5 - 10 times longer than lasers without standby function |
| 17, video output interface: USB |
| 18, video resolution: 640 x 480 |
| 19, the total video pixels: 300,000 |
| 20, video type: color image |
| 21, multi-production line sharing: support |
| 22, SPC statistical function: bad judgment, average, standard deviation, Cpk, non-performing rate, distribution map, trend chart, X bar-R control chart, etc. |
| 23, power and power consumption: power supply through the USB interface, 2.5W low power consumption |
| 24, hot plugging: support |
| 25, weight and shape: 60kg, W600 x D550 x H650 mm |
| 26, hardware: CPU: Intel P4 1.4G or more 2G or more recommended) Memory: 256M or more 512M or more recommended) Port: 1 or more COM port, 2 or more USB2.0 interface graphics card: mainstream brand, and Direct9, 32M or more Memory |
27, operating system: Microsoft Windows XP
