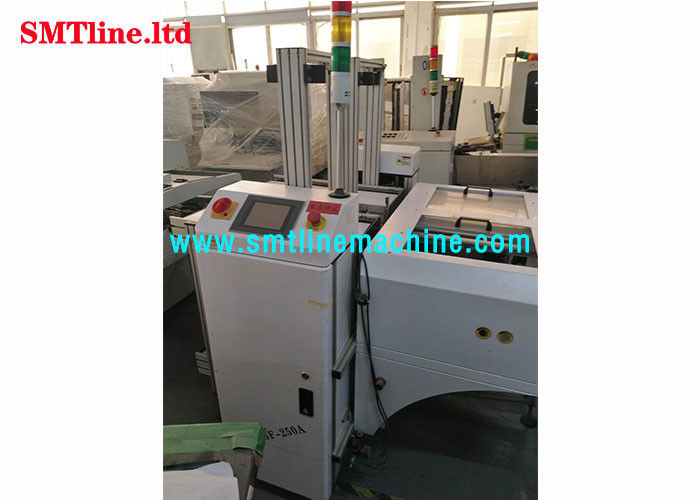

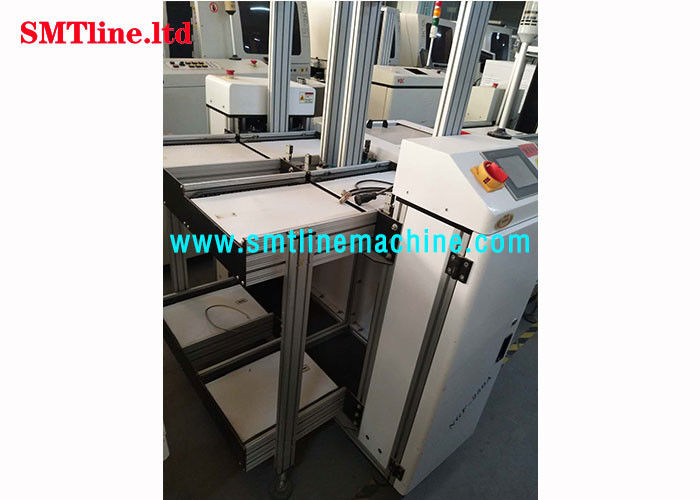

Stable SMT Line Machine Magazine Loader Pcb Transfer Machine Simple Operation

  • Stable SMT Line Machine Magazine Loader Pcb Transfer Machine Simple Operation
  • Stable SMT Line Machine Magazine Loader Pcb Transfer Machine Simple Operation
Place of Origin china
Brand Name CNSMT
Certification CE
Model Number SMT Magazine Loader
Minimum Order Quantity 1
Price negotiation
Packaging Details woodenbox
Delivery Time 5-7 work days
Payment Terms T/T, Western Union
Supply Ability 10pcs/day
Product Details
Brand CNSMT MODEL SMT Magazine Loader
Weight 200KG Lead Time IN Stork
Packing BOX CONdition Working
POWER 110V/220 PAYMENT TERM T/T, Paypal, Westernunion Are All Allowed
High Light

smt assembly equipment

,

smt assembly machine
Leave a Message
Product Description

online SMT Magazine Loader ok NG Loader and unloader pcb transfer machine new and used

Quick Detail

Steel body, firm and stable;
Microcomputer control card control system, stable and reliable work;
Touch screen display operation, convenient man-machine dialogue, simple operation;
Multiple acoustooptic alarm functions;
The lifting step distance of the material rack can be set according to PCB thickness.
Humanized design ensures that the PCB board is not broken and improves the output capacity.
It covers an area of 0.9 meters.



Feature



Product Name:  SMT Magazine Loader
Used for: SMT FULL LINE ASSEMBLY
Warranty: 1 Year
Shipment by air
Delivery Time: 1-2Days
Our Main Market Whole of the world


Stable SMT Line Machine Magazine Loader Pcb Transfer Machine Simple Operation 0

Type of Model
JH - 900.
External dimension (L*W*H)
900 * 865 * 1578 mm
Control system
Touch screen + control card
Conveyor width
50-250 - mm
Substrate size
50 * 50-350 * 250 mm
Suitable for basket size
355 * 320 * 563 mm
PCB substrate thickness
0.4 mm - 0, 5 mm
Running cycle time
5 seconds
altitude
910 + 30 mm
Transport direction
L to the left goes to R or R to the right goes to L
PCB transport mode
manipulator
Transportation speed
100 ~ 1000 mm/min
The use of air compressor
4-6 KGF/cm2
The total power
100 w.
Normal power consumption
40 w
The weight of the
190 kg
Electrical requirements
2-phase 220V 50/60hz (optional: 2-phase 220V 50/60hz)
