Digital High Speed SMT Line Machine AOI Solder Paste Inspection Machine

  • Digital High Speed SMT Line Machine AOI Solder Paste Inspection Machine
  • Digital High Speed SMT Line Machine AOI Solder Paste Inspection Machine
  • Digital High Speed SMT Line Machine AOI Solder Paste Inspection Machine
Place of Origin china
Brand Name cnsmt
Certification CE
Model Number classic1008
Minimum Order Quantity 1
Price 10000USD/PCS
Packaging Details woodenbox
Delivery Time 5-7 work days
Payment Terms T/T, Western Union
Supply Ability 10pcs/day
Product Details
Brand Cnsmt MODEL Dc6510
Weight 800KG Lead Time IN Stork
Packing Woodenbox CONdition Working
POWER 220V 110V PAYMENT TERM T/T, Paypal, Westernunion Are All Allowed
High Light

smt assembly equipment

,

smt aoi machines
Leave a Message
Product Description

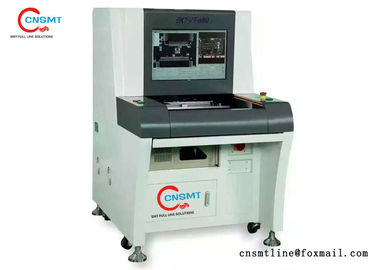

SMT Online and Offline AOI SPI PCB solder paste test machine from cnsmt



Attachment 1:Specification



Attachment 2: On-line 3D Color SPI Advantage:

1. PMP based on white light,height resolution is 0.3um

2. Digital High Speed CCD 5M Pix,with large FOV,support high speed inspection

3. Dual 3D Projection (Single optional) avoid shadow and reflection

4. High accuracy and repeatability

5. Auto warp detect

6. 2 Marks/Board or 2 Marks/Array

7. Solder paste or red gum detection

8. 2D/3D true color image

9. Gerber 274D/X,CAD,Offline program,Bare Board Teach

10. Powerful SPC



Attachment 2: On-line 3D Color SPI Advantage:

1. PMP based on white light,height resolution is 0.3um

2. Digital High Speed CCD 5M Pix,with large FOV,support high speed inspection

3. Dual 3D Projection (Single optional) avoid shadow and reflection

4. High accuracy and repeatability

5. Auto warp detect

6. 2 Marks/Board or 2 Marks/Array

7. Solder paste or red gum detection

8. 2D/3D true color image

9. Gerber 274D/X,CAD,Offline program,Bare Board Teach

10. Powerful SPC



Attachment 2: On-line 3D Color SPI Advantage:

1. PMP based on white light,height resolution is 0.3um

2. Digital High Speed CCD 5M Pix,with large FOV,support high speed inspection

3. Dual 3D Projection (Single optional) avoid shadow and reflection

4. High accuracy and repeatability

5. Auto warp detect

6. 2 Marks/Board or 2 Marks/Array

7. Solder paste or red gum detection

8. 2D/3D true color image

9. Gerber 274D/X,CAD,Offline program,Bare Board Teach

10. Powerful SPC



Types Items Specifications



Inspection

 Camera Digital High Speed CCD 5M Pix
Light Ring R/G/B LED and White LED
FOV 32mm*32mm(20μm)
Speed Per FOV <0.6s
Detect Solder/Red gum: Volume,Area,Height,Shape,Shift,Bridge,Overflow
Defect None.Shift.More.Less.Bridge.Pull.Shape.Gold finger.Height.Overflow
Height Range 10~400um
Area Range 0.15mm×0.15mm~10mm×10mm
Height Accuracy on a Certificated Target 1μm
Height/Area/Volume Repeatability on a Certificated Target <1μm 3sigma
GR&R <10%
Software OS Windows 7
Vision Spec. Dual 3D Projection(Single optional)avoid shadow and reflection
UI GUI/Easy use,support English/Chinese/Big5
Result 2D/3D true color
MARK 2 Marks/Board or 2 Marks/Array, support bad mark
Program Gerber 274D/X CAD,Offline program,Bare Board Teach
SPC Offline SPC Support
Chart Any Time Chart
Histogram/Control/Compare chart Volume,Area,Height,Shift
Export Excel,Jpg,Bmp
Hardware PCB Transmit System Bottom-up fix; Auto transmit and width correct based on SMEMA;Height: 900±20mm
PCB Size 50mmx50mm 330mmx250mm
PCB Thickness 0.3mm~3mm
Max PCB Warp <2mm
X,Y Platform Motion Servo Motor Control
Position Accuracy <1μm
Speed 700mm/s
Control system Computer Industrial computer:Intel 4 core/8G DDR/500G HD
Display Output 19 inch LCD
Others Machine Dimensions 100cmx100cmx155cm
Weight About 600 KG
Power Supply AC220V±10%,50/60Hz,1200W
Working Environment Temperature: 10-40℃,Humidity: 30-80%RH

Attachment 2: On-line 3D Color SPI Advantage:

1. PMP based on white light,height resolution is 0.3um

2. Digital High Speed CCD 5M Pix,with large FOV,support high speed inspection

3. Dual 3D Projection (Single optional) avoid shadow and reflection

4. High accuracy and repeatability

5. Auto warp detect

6. 2 Marks/Board or 2 Marks/Array

7. Solder paste or red gum detection

8. 2D/3D true color image

9. Gerber 274D/X,CAD,Offline program,Bare Board Teach

10. Powerful SPC
