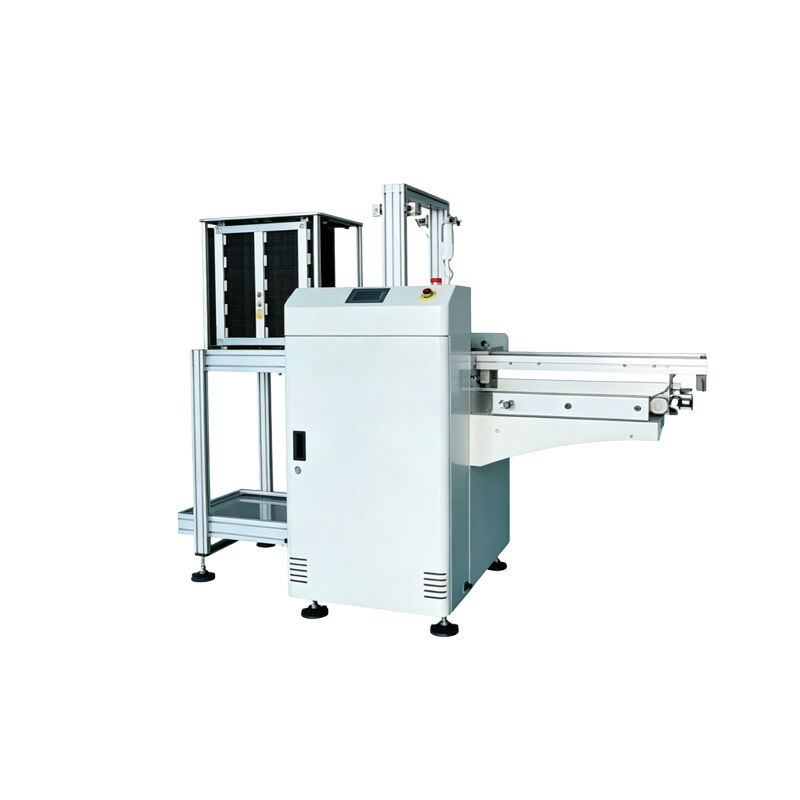

PCB fully automatic cutting and feeding machine
PCB Fully Automatic Cutting and Feeding Machine
Advanced automation equipment designed for SMT coating production lines, available in large and small frame sizes to suit various manufacturing requirements.
Key Features
- PLC + touch screen control system with fault sound and light alarm
- Menu display interface for easy operation
- Equipped with SMEMA communication signal port
Application Fields
- Consumer Electronics: PCB production for mobile phones, earphones, smart wearables
- Home Appliances: Control boards for TV, air conditioner and small household devices
- New Energy: Battery protection boards, charging pile & energy storage PCBs
- Industrial Control & Security: Mainboards for controllers, cameras and access control
- Automotive Electronics: Vehicle control, lamp and automotive circuit boards
- Communication Equipment: Router, switch and 5G module PCB SMT lines
Technical Specifications
| Parameter | HN-L450 Automatic Elevator | HN-F180 Automatic Flipping Machine |
|---|---|---|
| Work Direction & PCB Edge Space | Left L ↔ Right R; PCBA process edge ≥ 5mm | |
| Transport Height & Component Clearance | 920 ± 20mm: 100mm above and 90mm below chain surface | |
| Conveying Speed | 2-5m/min | 8-13m/min |
| Transmission & Width Adjustment | Stepper motor, electrically adjustable track width (50-460mm) | |
| Drive Type | Motor + chain driven lifting | Motor + synchronous belt driven flipping |
| Equipment Stroke | Lifting height 450mm | Flip 180° |
| Overall Dimensions | L640×W1000×H1350 (mm) | L640×W1100×H1350 (mm) |
| Air Pressure & Power Supply | ≥0.4Mpa, AC220V 50-60Hz | |
| Power Consumption & Weight | 0.8KW, Approximately 180Kg | |
| Control Mode & Communication | PLC + touch screen, SMEMA communication signal port | |
The PCB fully automatic cutting and receiving machine serves as core automation equipment for SMT production lines. Featuring high-quality rack structure and intelligent PLC control system, it ensures stable and precise operation while eliminating jamming, deviation, and scraping issues. This automated solution effectively replaces manual loading/unloading, reducing labor costs and improving production line efficiency.
This equipment offers strong compatibility with various PCB specifications and thicknesses, supporting non-standard customization for multiple industries including consumer electronics, new energy, automotive electronics, and industrial control. With simple operation, comprehensive safety protection, and low failure rate, it ensures continuous stable operation. The manufacturer provides reliable quality, cost-effective solutions, and complete pre-sales selection, on-site debugging, and lifelong after-sales maintenance services.
Safety Precautions
Standardized Safety Operation: Operators must be proficient in equipment procedures. Never insert hands or tools into work areas during operation to prevent pinching hazards and ensure production safety.
Electrical & Abnormal Protection: Install equipment on level surface with reliable grounding and stable power supply. Avoid operating with wet hands. Immediately press emergency stop for board jamming, abnormal noise, or errors. Never operate with faults.
Daily Maintenance: Regularly clean guide rails, transmission wheels, sensors, and other core components. Unauthorized parameter changes or circuit modifications by non-professionals are prohibited to maintain equipment accuracy and extend service life.
Service & Support
Whole Machine Warranty: All equipment undergoes strict testing before shipment. Standard warranty covers free maintenance and part replacement for non-human damage during warranty period.
On-site Installation & Training: Free on-site installation and debugging with one-on-one operator training covering equipment operation, parameter settings, daily maintenance, and basic troubleshooting.
Lifetime Technical Support: Lifelong free technical consultation, operation guidance, and upgrade services. Support for non-standard customization and production line adaptation. Quick after-sales response minimizes downtime.
Customer Feedback
"The CNSMT fully automatic PCB cutting and feeding machine runs stably with precise loading/unloading without jamming, effectively saving labor. Equipment debugging is simple, after-sales technical response is timely, and on-site training is comprehensive. Quick online guidance for minor issues, attentive quality assurance service, outstanding cost-effectiveness."
Frequently Asked Questions
Can the device adapt to multi-size PCBs?
Yes, customizable and compatible with circuit boards of different thicknesses and widths. Non-standard boards can be customized to different models.
Yes, customizable and compatible with circuit boards of different thicknesses and widths. Non-standard boards can be customized to different models.
What causes frequent board jamming?
Board deformation, incorrect track width, or dust accumulation on sensors. Resolve by cleaning sensors and fine-tuning track width.
Board deformation, incorrect track width, or dust accumulation on sensors. Resolve by cleaning sensors and fine-tuning track width.
Can equipment integrate with existing SMT lines?
Standard models compatible with general SMT assembly lines. Old production lines can be retrofitted and connected as needed.
Standard models compatible with general SMT assembly lines. Old production lines can be retrofitted and connected as needed.
How long is warranty? How to purchase accessories?
Complete machine warranty with free replacement parts for non-human damage. Guaranteed original factory price spare parts supply.
Complete machine warranty with free replacement parts for non-human damage. Guaranteed original factory price spare parts supply.
What if I don't know how to operate?
On-site installation training upon arrival, remote guidance for future malfunctions, and quick after-sales assistance provided.
On-site installation training upon arrival, remote guidance for future malfunctions, and quick after-sales assistance provided.
