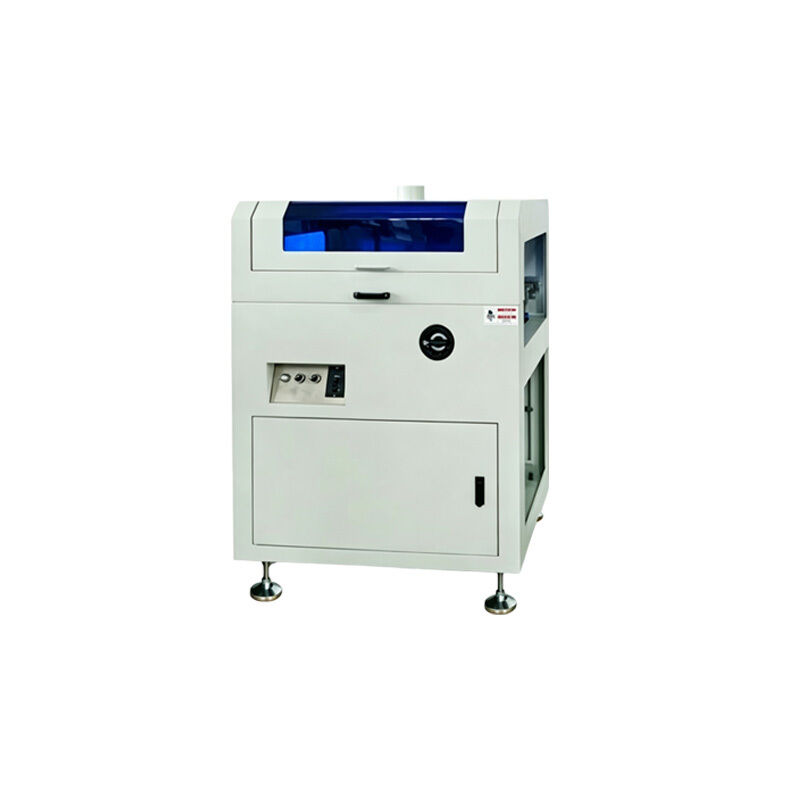

New Energy High-end PCB coating Conveyor
New Energy High-end PCB Coating Conveyor
Advanced conveyor system designed for SMT coating production lines, curing furnace production lines, and non-standard equipment production lines in the new energy sector.
Key Features
- Special single-chip control card module with equipment length specifications of 0.5m and 0.8m
- Track amplitude adjustment with drive mechanism and manual width adjustment
- Long-term track adjustment without bell mouth phenomenon
- Optional upper lampshade and rotating layer return track
Product Specifications
- Detection Principle: Pressure differential airtight leak detection technology for accurate PCB leak identification
- Product Advantages: Easy touch screen control, quick tooling change, multi-channel synchronous testing
- Application Customization: Suitable for energy storage and power battery PCB modules with non-standard fixture customization
Technical Specifications
| Specification | Small Material Frame | Large Frame |
|---|---|---|
| Work Direction & PCB Edge Space | Left → Right (standard), Right → Left (optional); PCBA process edge ≥ 5mm | Left → Right (standard), Right → Left (optional); PCBA process edge ≥ 5mm |
| Transmission Chain | Black nylon flat engineering chain | |
| Motors | 3 sets of fixed speed motors and 1 set of brake motors | |
| Material Frame Size | 355×320×565 mm | 535×530×565 mm |
| Maximum PCBA Board Size | L50×W50 - L330×W250 mm | L50×W50 - L525×W460 mm |
| Material Frame Lifting | Ball screw, cast aluminum integrated lifting platform | |
| Overall Dimensions | Send: 1330×780×1200 mm Received: 1750×780×1200 mm |
Send: 1800×1120×1350 mm Received: 2520×1120×1350 mm |
| Air Pressure & Power Supply | ≥0.4Mpa, AC 220V 50-60Hz | |
| Power Consumption & Weight | 0.5KW, approx. 240Kg | 0.5KW, approx. 290Kg |
| Control Mode & Communication | PLC + display control touch screen, SMEMA communication signal port | |
Our factory specializes in new energy high-end PCB conveyors, circuit board seal leak detectors, and PCB automatic linking conveyor equipment. Using differential pressure testing principles, we accurately identify potential gas leaks in circuit board packaging. Our coating conveyors run stably and are suitable for sealing testing of various circuit board types including new energy and SMT applications.
Safety Instructions
- Operate at rated voltage with proper grounding; avoid operating electronic controls with wet hands
- Maintain gas source pressure within standard equipment range; overpressure supply is strictly prohibited
- Power off and relieve pressure before maintenance; non-professionals should not disassemble gas circuits or main control components
After-Sales Service Guarantee
- Complete machine warranty with free maintenance and part replacement for non-human faults
- Quick response to fault reports with remote troubleshooting guidance and on-site inspection for complex issues
- Lifetime cost-price spare parts supply with regular maintenance consultation and equipment calibration services
Customer Feedback
New energy PCB coating conveyor features high precision and stable data for energy storage circuit boards. Quick after-sales provides timely commissioning and maintenance. Reliable performance and considerate service win good reviews and repeat orders.
Certifications
CNSMT specializes in manufacturing new energy PCB coating conveyors. With mature craftsmanship, our precise and stable equipment suits leakage inspection for energy storage & power battery PCBs. Cost-effective products sell well worldwide with comprehensive after-sales support including commissioning, technical support, and maintenance.
