PCB automatic loader machine
,SMT line PCB loader
,fully automatic PCB loading system
-
Place of OriginCHINA
-
Brand NameCNSMT
-
CertificationCE-flipper machine-elevator
-
Model NumberHN-L10
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

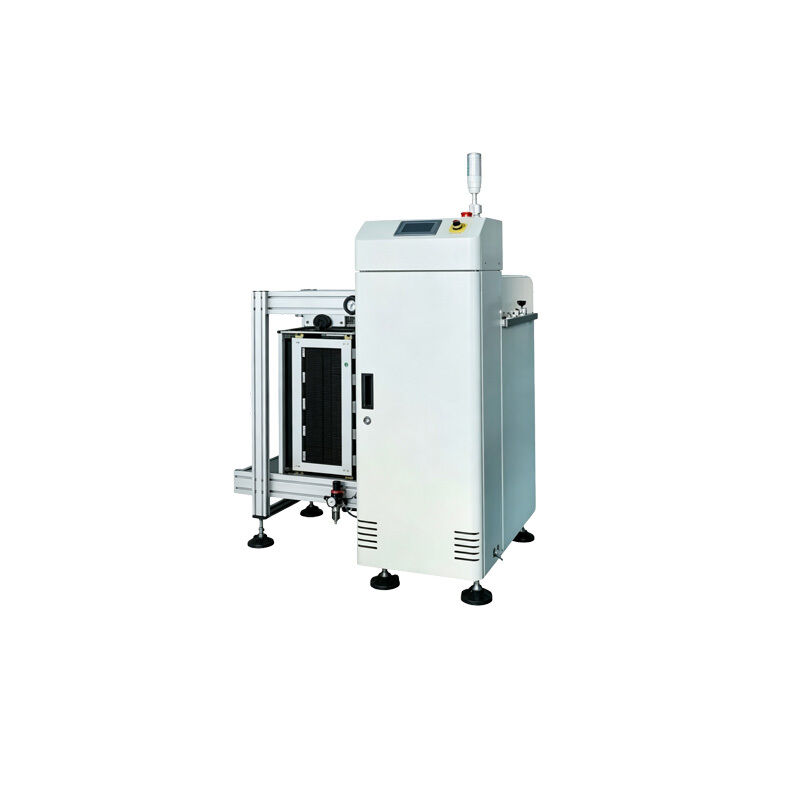

PCB fully automatic loader
PCB Fully Automatic Loader
Advanced automation equipment for SMT production lines, designed for efficient PCB handling and feeding operations.
Scope of Application
Ideal for SMT coating production lines, available in both large and small frame sizes to accommodate various production requirements.
Key Features
- PLC + touch screen control system with intuitive menu display
- Fault detection with sound and light alarm system
- Equipped with SMEMA communication signal port for seamless integration
Application Fields
The PCB fully automatic loader machine serves multiple industries including 3C consumer electronics, automotive electronics, industrial control power supply, medical electronics, security smart home, and new energy photovoltaics. It integrates with SMT surface mount, DIP plug-in, AOI inspection, PCB process and finished product testing production lines, connecting seamlessly with printing machines and surface mount equipment to enable automatic PCB feeding operations.
Technical Specifications
| Parameter | Small Frame Machine | Large Frame Machine |
|---|---|---|
| Work Direction & PCB Edge Space | Left → Right (standard), Right → Left (optional); PCBA process edge ≥ 5mm | Left → Right (standard), Right → Left (optional); PCBA process edge ≥ 5mm |
| Conveying Height & Max Component Height | 920±20mm, Less than 45mm (customizable) | 920±20mm, Less than 45mm (customizable) |
| Transmission System | Black nylon flat engineering chain | |
| Motor Configuration | 3 fixed speed motors + 1 brake motor | |
| Material Frame Size | 355×320×565 mm | 535×530×565 mm |
| Maximum PCB Size | L50×W50 - L330×W250 mm | L50×W50 - L525×W460 mm |
| Lifting Mechanism | Ball screw with cast aluminum integrated lifting platform | |
| Overall Dimensions (Send/Receive) | Send: 1330×780×1200 mm Receive: 1750×780×1200 mm |
Send: 1800×1120×1350 mm Receive: 2520×1120×1350 mm |
| Power Requirements | ≥0.4Mpa air pressure, 220V 50-60Hz power supply | |
| Power Consumption & Weight | 0.5KW, ≈240Kg | 0.5KW, ≈290Kg |
| Control System | PLC + display control touch screen, SMEMA communication port | |
The SMT circuit board automatic loader is essential automation equipment for SMT production lines. This specialized PCB feeding machine automates circuit board feeding processes, perfectly adapting to solder paste printing machines and connecting seamlessly with SMT production equipment to achieve continuous, unmanned PCB feeding operations.
With stable operation and precise alignment, the PCB feeding machine effectively replaces manual loading, eliminating operational errors and electrostatic damage while significantly improving production line efficiency. The system supports mass production of standard circuit boards and can be customized for non-standard PCB automatic feeding requirements, accommodating various irregular and special-sized PCB boards with strong adaptability.
Our models cover mainstream integrated SMT PCB loader styles, combining automatic board loading, receiving, and continuous feeding functions in a compact structure. The equipment supports fast line changing and debugging, making it suitable for SMT production lines across multiple industries including 3C electronics, automotive electronics, industrial control, and medical applications.
Safety Precautions
- Do not reach into the board feeding area during operation
- Familiarize with emergency stop button locations
- Maintenance requires power-off operations
- Unauthorized equipment modification is strictly prohibited
- Regular inspection of accessories is required
After-Sales Service
- Complete machine warranty coverage
- Free on-site debugging and training
- 24/7 technical support and Q&A
- Quick troubleshooting assistance
- Long-term supply of original factory parts
Customer Feedback
Customers report that CNSMT automatic SMT PCB loaders run stably and connect well with solder paste printers, significantly improving feeding efficiency. Custom non-standard designs fit production lines perfectly. The after-sales team provides prompt responses and timely on-site commissioning. Excellent cost performance has led to long-term cooperation and repeat purchases for capacity expansion.
Frequently Asked Questions
- Cardboard and suction board instability: Caused by suction cup leakage, board warping, or height parameter setting deviations resulting in empty suction or multiple board suction
- Inaccurate alignment and feeding deviation: Due to loose belts, abnormal guide rail spacing, dirty sensors, or misaligned feeding with printing machines
- Abnormal start/stop operation: Resulting from photoelectric induction failure, insufficient air pressure, or unexplained shutdown/continuous empty board delivery
- Lifting stuttering and abnormal noise: Caused by lack of lubrication in screws, dust accumulation on guide rails, or excessive load on lifting motors
Certifications
CNSMT specializes in manufacturing automatic SMT PCB loaders, including SMT board handling machines, printing-machine matching feeders, customized non-standard equipment, and integrated loading-unloading models. Our machines are widely used in 3C, automotive electronics, and industrial control industries, selling worldwide with competitive pricing. We provide complete after-sales service and customized solutions for SMT manufacturers.
