PCB automatic feeding platform
,SMT line feeding machine
,PCB feeder with warranty
-
Place of OriginCHINA
-
Brand NameCNSMT
-
CertificationCE- Entering the board platform
-
Model NumberHN-C80
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

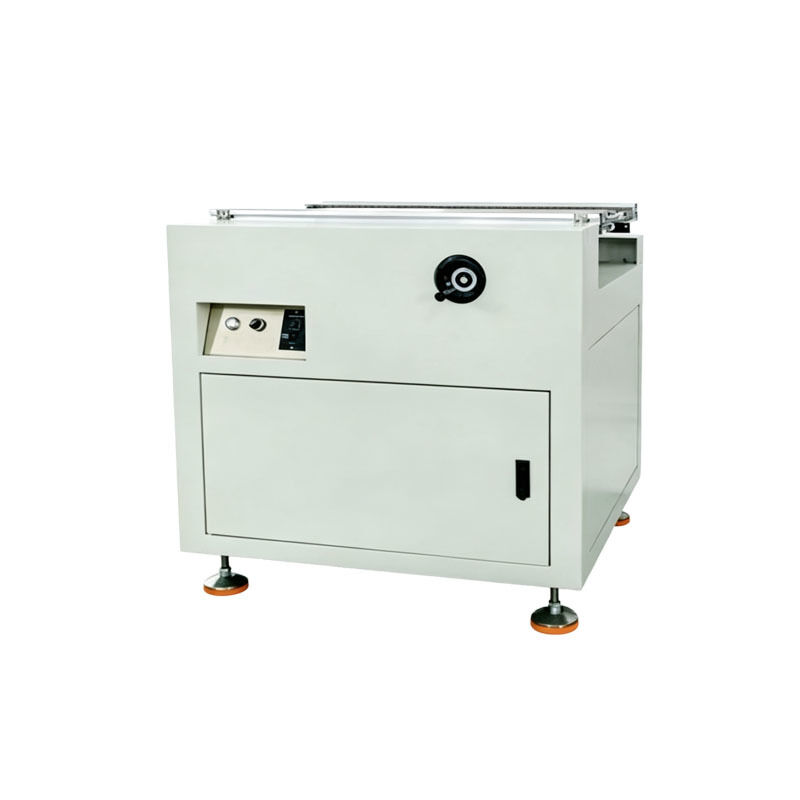

Auto PCB Conveyor for Coating machine
Suitable for SMT coating production lines, curing furnace production lines, and non-standard equipment production lines
special single-chip control card module, the equipment length specification can be 0.5m, 0.8m;
The track amplitude adjustment adopts the drive mechanism of the adjusting seat, and the width is manually adjustedto ensure that the track is adjusted for a long time without the phenomenon of bell mouth.
Optional function
The automatic pcb conveyor can be equipped with an optional upper lampshade, and the rotating layer returns to the track
| TECHNICAL PARAMETER | ||
| specification | Small material frame up and down plate machine | Large frame loading and unloading machine |
| Work direction and PCB edge space | Left L → Right R (standard), (right R → left L optional); PCBA process edge ≥ 5mm | |
| transmission chain | Adopting black nylon flat engineering chain | |
| Transmission motor and lifting motor | 3 sets of fixed speed motors and 1 set of brake motors | |
| Material frame size | 355*320*565 (mm) | 535*530*565 (mm) |
| Applicable PCBA board maximum size | L50*W50-L330*W250 (mm) | L50*W50-L525*W460(mm) |
| Material frame lifting | Ball screw, cast aluminum integrated lifting platform | |
| Push plate cylinder | PCB board push rod cylinder, domestic material frame clamping cylinder | |
| Overall dimensions | Send:L1330*W780*H1200(mm) | Send:L1800*W1120*H1350 (mm) |
| Received:L1750*W780*H1200 (mm) | Received:L2520*W1120*H1350 (mm) | |
| Equipment air pressure and power supply | ≥0.4Mpa,交流220V 50-60Hz | |
| Total power consumption and weight of the equipment | 0.5KW, Approx.240Kg | 0.5KW, Approx.290Kg |
| Control mode and communication port | PLC+display control touch screen, SMEMA communication signal port | |
The PCB automatic pcb conveyor is a core supporting equipment at the front end of the SMT production line, also known as the SMT automatic loading machine, PCB loading machine, PCB automatic pcb conveyor , SMT feeding machine. It is an essential equipment for electronic surface mount production, mainly used to automate the PCB board transfer, loading, and feeding processes, replace manual board placement, and effectively improve the automation efficiency and production standardization of the production line.
This fully automatic pcb conveyor is a classic frame type loading machine structure, which runs smoothly and delivers boards accurately. It can orderly transport PCB boards inside the frame, eliminating problems such as offset, missing boards, and jamming. The equipment is equipped with an intelligent control system, which is easy to debug and has strong compatibility. It can seamlessly connect with various SMT assembly lines and adapt to multiple specifications of material frames and PCB boards.
The equipment has the advantages of anti-static, flexible board feeding, and anti scraping, which can effectively protect precision circuit boards and ensure production yield. Supporting 24-hour continuous stable operation, significantly reducing labor costs and operational errors, with high cost-effectiveness and strong durability, it is widely used in industries such as consumer electronics, new energy, industrial control communication, etc. It is the preferred equipment for enterprise SMT production line automation upgrade.
Safety usage guidelines
Strictly follow the operating procedures when operating the PCB automatic feeding table and SMT automatic pcb conveyor . When the equipment is running, it is forbidden to insert hands and tools into the transmission and board feeding areas, and it is strictly prohibited to power on and disassemble the machine for debugging. The PCB automatic pcb conveyor needs to be placed flat, reliably grounded, and the working environment should be kept dry and dust-free. Overloading and non-standard material frame plate operations are prohibited. If the equipment alarm occurs, it should be immediately stopped and the power should be cut off for troubleshooting.
After sales warranty service
The entire range of PCB board machines and automatic pcb conveyor enjoy a complete machine warranty. During the warranty period, non human caused faults can be repaired and replaced free of charge. Lifetime one-on-one technical guidance, installation and commissioning, and operation training are provided, with fast after-sales response and efficient resolution of equipment failures, reducing production losses.
Daily maintenance and repair
Regularly clean the track and probe, inspect the circuit and accessories, and regularly add lubricating oil. Non professionals are prohibited from disassembling the equipment without authorization. After sales personnel can be contacted for on-site maintenance and debugging to ensure the long-term stable operation of the equipment.
Automatic pcb onveyor accurately and smoothly, matching coating production lines well with low failure rate. Timely after-sales finishes commissioning and troubleshooting. Durable equipment and good service gain favorable comments and repeat orders.
CNSMT specializes in R&D of PCB/SMT automatic pcb conveyor with years of industry experience and solid technical capability. Our well-crafted equipment delivers stable, accurate feeding to fit diverse SMT lines, selling well domestically and overseas at cost-effective prices to cut clients’ procurement costs. Supported by full after-sales including commissioning, training and maintenance, we welcome inquiries and cooperation.
