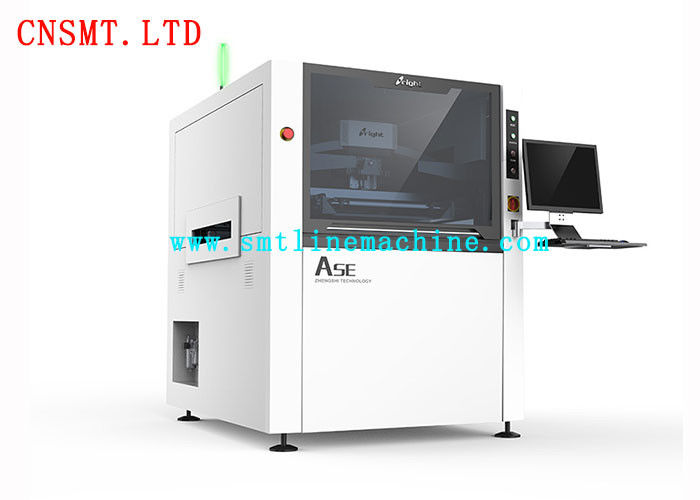

Transport Speed 1500mm/s SMT Stencil Printer Right Full Auto Ase Automatic Solder Paste Printing Presses
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Right | MODEL | Ase |
|---|---|---|---|
| Weight | 1000kg | Lead Time | 1-2days |
| Packing | Wooden BOX | PAYMENT TERM | T/T, Paypal, Westernunion Are All Allowed |
| Delivery Term | Exw Fob Cif... | Machine Dimensions | 1220（L）×1355（W）×1500（H）mm |
| Control Method | PC Control | Power Input | AC:220±10%,50/60HZ1F3KW |
| High Light | smt stencil machine,solder paste printer |
||
Product Description
Right full auto Ase automatic solder paste printing presses smt stencil printer Transport Speed Max 1500mm/s(Programmabl
Right full auto Ase automatic solder paste printing presses smt stencil printer Transport Speed Max 1500mm/s(Programmabl
Specification:
| Model | Ase | ||
| Item | |||
| Min Size | 470×370mm | ||
| Screen Frames | Max Size | 737×737mm | |
| Thickness | 25~40mm | ||
| PCB Min Size | 50×50mm | ||
| PCB Max Size | 400×340mm | ||
| PCB Thickness | 0.4~6mm | ||
| PCB Warpage | <1% | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | ||
| Transport Speed | Max 1500mm/s(Programmable) | ||
| Board Location | Support System | Magnetic Pin/Up-down table adjusted/support block | |
| PCB | Clamping System | Side clamping,vacuum nozzle | |
| Printer Head | Two independent motorised printhead | ||
| Squeegee Speed | 6~200mm/sec | ||
| Squeegee Pressure | 0~15kg | ||
| Squeegee Angel | 60°/55°/45° | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Stencil Separation Speed | 0.1~20mm/sec (Programmable) | ||
| Cleaning System | Dry ,Wet,Vacuum (Programmable) | ||
| Table Adjustment Ranges | X:±10mm;Y:±10mm;θ:±2° | ||
| Machine | |||
| Repeate Position Accuracy | ±0.01mm | ||
| Printing Accuracy | ±0.025mm | ||
| Cycle Time | <7s(Exclude Printing & Cleaning) | ||
| Product Changeover | <5Min | ||
| Air Required | 4.5~6kg/cm2 | ||
| Power Input | AC:220±10%,50/60HZ1F3KW | ||
| Control Method | PC Control | ||
| Machine Dimensions | 1220(L)×1355(W)×1500(H)mm | ||
| Machine Weight | Approx:1000kg | ||
Packaging & Shipping
Packaging details:VACUUM&WOODENBOX
Delivery time:Within 1~3 working days
Shipment:
1. We ship to world wide
2. Most orders ship within 1~7days after payment
3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
4.100%T/T before shipment OR 30%T/TADVANCE,Banlance 70% before shipment, after we shipped the goods, we will email you the shipping information
5.WE sell and buy used equipmentS long-term
Service:
1. SMT FULL LINE SOLUTION
2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER SUPPLIER
3. AI INSERT MACHINE, SMT PERIPHERY EQUIPMENT SUPPLIER
4. BUY AND SELL USED EQUIPMENT
5. Manufacuture of SMT FEEDERS AND NOZZLES
6. WE HAVE PROFESSIONAL ENGINEER TEAM
