DEK Horizon 02i – The Complete FAQ Guide
This complete guide covers everything important about the DEK Horizon 02i.
Through this guide, you can understand everything about the DEK Horizon 02i and this printer machine's reliability for production factory/business.
Since the DEK Horizon 02i is a reliable and efficient screen-printer used in the SMT production industry, it is a reliable option for adding to the production factories.
Below we have answered all the queries regarding the DEK Horizon 02i and the benefits it's efficiency and reliability offered in the production world.
So before you purchase the DEK Horizon 02i, you can look into this guide for a better and clear understanding of the DEK Horizon 02i.
| Standard configuration | specification |
| Machine alignment ability | >2Cpk @ +/- 12.5μm, 6 Sigma # |
| Process calibration capability | >2Cpk @ +/- 20μm, 6 Sigma # |
| cycle | 10 secs (9 secs with HTC option) |
| Maximum printing area | 510mm*(X)X508.5mm(Y) |
| ISCANTM machine control | Using CAN bus network motion control |
| operating system | Windows XP |
| Operation interface | Color TFT touch screen display, keyboard and trackball DEK's Instinctiv software. The machine can be installed on the left or right side. |
| camera | Eagle Eye 750 digital camera, using IEEE 1394 interface, multi-channel, LED lighting, FOV 5mm x 8.5mm |
| Camera positioning | Rotating motor and encoder with 4 micron resolution |
| Squeegee pressure mechanism | Software control, motorized, with closed loop feedback |
| Template positioning | Automatic loading into the squeegee drip tray |
| Template alignment | Via electric drives X, Y and theta |
| scraper | (Including 1 set) Clamp double-cultivation edge scraper |
| Mould | Magnetic mold pin |
| 19mm diameter x15 | |
| 4mm diameter x15 | |
| Mold deviation monitoring | Pass the verification of the squeegee pressure feedback tool setting |
| HMI | On-line and off-line FMI includes |
| Connectivity | RJ-45LAN (networking) and USB2 interface available |
| Three-color signal light | Programmable alarm sound |
| Temperature/humidity sensor | Process environmental monitoring |
| Temperature/humidity sensor | Process environmental monitoring |
| Transportation System | specification |
| Types of | One piece of 3mm round head transport belt, front rail fixed |
| ESD compatibility | Black conveyor belts and guide rails have a surface resistivity greater than 10 |
| Width adjustment | Programmable maneuvering rear track |
| Transmission direction | Left to right, right to left, left to left, right to right |
| Substrate processing size (minimum) | 50mm(X)X40.5mm(Y) |
| Substrate processing size (maximum) | 510mm (times) * x508.5mm (Y) |
| Substrate thickness | 0.2mm to 6mm |
| Substrate weight (maximum) | 1 kg |
| Substrate warpage | Up to 8mm including substrate thickness |
| Substrate fixture | Patented Overhead Clip |
| Substrate processing function | One piece of 3mm round head transport belt, front rail fixed |
| Substrate bottom clearance | Programmable from 3mm to 42mm |
| Process parameters | specification |
| Printing pressure | 0 kg 20 kg |
| Printing speed | 2mm/sec to 300mm/sec |
| Printing gap | 0mm to 6mm |
| Substrate separation | Speed: 0.1mm/sec to 20mm/sec, distance from 0mm to 3mm |
| vision | specification |
| visual system | Cognex |
| Benchmark recognition | Automatic benchmark learning, find and capture combined with 0.1mm benchmark |
| Reference point | 2 or 3 |
| Benchmark type | Synthetic benchmark teaching or unique pattern recognition |
| Base size | 0.1mm to 3mm |
| Reference position | Substrate anywhere |
| Baseline error recovery | Automatically adjust the lighting |
| Operating environment | specification |
| temperature | 10oto35oC (50oto 95oF) |
| humidity | 30% to 70% relative humidity (non-condensing) |
| service | specification |
| Voltage | 100 volts to 240 volts +/- 10%. Single phase 50/60Hz |
| 115V maximum current | 20 amp vacuum pump |
| No vacuum pump required for 6 amps | |
| 230V maximum current | 10 amp vacuum pump |
| 3 amps without vacuum pump | |
| Overcurrent protection | External circuit breakers, ≤ 25 amps need to be installed in the line machine supply |
| Gas source | It is ISO 8573.1 standard quality level 2.3.3 |
| Pressure from 5 bar to 5 liters/min 8 rods | |
| Machine weight | 775 kg box |
| 615 kg unboxing | |
| Machine size | 2060 mm x 1500 mm 1570 mm |

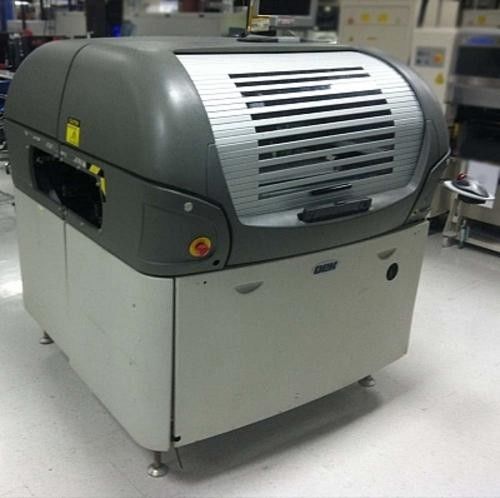

It is a modern and fully automatic stencil printer machine used in the production industries and other SMT production line machines.
The DEK Horizon 02i serves as a highly efficient printer machine that makes the screen printing process very convenient and professional while manufacturing products.
The DEK Horizon 02i consists of industry-leading technology.
Due to this technology present in this screen printer, the DEK Horizon 02i offers various benefits to the manufacturing industry.
Some such benefits include:
With all these benefits of the DEK Horizon 02i, it can be easily said that this screen printer is a more advanced and reliable machine for printing purposes.
Moreover, it also makes the DEK Horizon 02i a highly reliable screen printer in the SMT production line machines.
While the DEK Horizon 02i is a highly reliable screen printer machine, it also offers a huge production capability to the users.
With this printer's modern technology that adds value to the production, the DEK Horizon 02i also comes with an enormous production capability.
Along with the huge production capability, the DEK Horizon 02i also has high flexibility in its performance.
The presence of this flexibility and production capability, the DEK Horizon 02i is the perfect option to be a part of the fast-paced development market.
Since the DEK Horizon 02i manages large-scale manufacturing and production processes, it is a suitable screen printer for large production processes.
Hence, the DEK Horizon 02i is a must-have screen printing machine for all the larger production managing favorites/industries.
As a result, if you manage large-scale production business, then the DEK Horizon 02i can be a reliable and helpful screen printer machine that offers efficient and high-value performance.
While the performance and operation options present in a DEK Horizon 02i are wide, it also has some basic specifications.
These specifications determine the major working of the DEK Horizon 02i screen-printer.
They include:
Different suppliers offer the DEK Horizon 02i with different ratios of these features.
So the features configuration depends on the type of DEK Horizon 02i you purchase.
With the modern and advanced DEK Horizon 02i technology, this screen printer machine offers a highly automated production.
With this automated production, users can easily minimize operational disruptions while using the DEK Horizon 02i.
Moreover, this efficiency also makes the DEK Horizon 02i offer options for reducing the product transition time.
Maximum, the DEK Horizon 02i can offer a product transition time reduction of two minutes, making its production more controlled and valuable.
The DEK Horizon 02i is a modern screen printer machine that comes with top-notch technology.
Moreover, the DEK Horizon 02i is also a suitable printer machine that offers easy operation and large-scale production.
The DEK Horizon 02i includes various modern and advanced features and options for the operation to offer these features efficiently.
Some of the advanced DEK Horizon 02i screen-printer operations include:
While some companies manufacture and supply the DEK Horizon 02i with some of these features/operations, they mostly depend upon where you purchase the DEK Horizon 02i screen-printer.
Since the DEK Horizon 02i is a relatively new printer machine in the SMT line, a reliable machine can be used by anyone.
Whether it is a skilled worker or an unprofessional printer operator, the DEK Horizon 02i can be easy to control for anyone. It comes with new intuitive software that is easy to program for anyone.
This software is also operator friendly, making it suitable for anyone to understand how it can be operated smoothly.
Altogether, there are no usage limits or complications that only professional/technical operators can handle.
While many suppliers can offer you the DEK Horizon 02i at decent rates, you must look for good quality along with good rates.
For this, it's important to look for the manufacturers and suppliers of SMT machines that focus on offering high-quality manufacturing with complete satisfaction.
One such highly reliable and trustworthy supplier of DEK Horizon 02i is CNSMTLine.
Since CNSMTLine offers the best quality components and manufacturing for the DEK Horizon 02i, you can trust that their printer will serve as a durable option.
Moreover, the machine warranty and efficient performance also make the CNSMTLine a reliable DEK Horizon 02i supplier to trust.
Our products are sold all over the world, you can rest assured.
