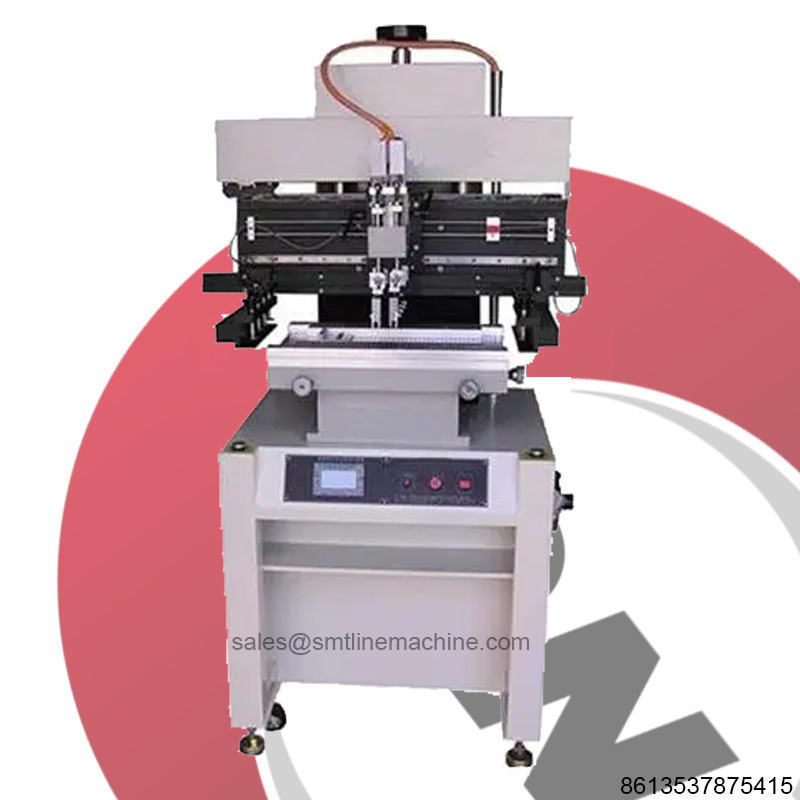

Semi Auto Solder Paste SMT Stencil Printer PLC Control For Led Production Line
Brand | CNSMT | MODEL | SMT Led Screen Printer |
---|---|---|---|
Weight | 300KG | Lead Time | IN Stork |
Packing | BOX | CONdition | Working |
POWER | 110V/220 | PAYMENT TERM | T/T, Paypal, Westernunion Are All Allowed |
High Light | solder paste printer,stencil printer machine |
cnsmt supply Low Cost Semi-auto smt solder paste printer and stencil printer for led line product
Quick Detail
This product features:
1 Use guide rails and variable frequency motor to drive the blade holder to ensure printing accuracy.
2 The printing blade can be rotated 45 degrees upwards to facilitate the cleaning and replacement of the printing plate and scraper.
3 The blade holder can be adjusted back and forth to select the appropriate printing position.
4 The combination printing platen has a fixed groove and PIN, which is easy to install and adjust. It is suitable for single and double-sided printing.
5 The school edition adopts stencil net movement, combined with printing (PCB) X, Y, Z. Calibration is quick and easy.
6 Using PLC and touch screen control, simple, convenient and more suitable for human-machine dialogue. The inverter controls the printing speed.
7 can be set to one-way and two-way, a variety of printing methods.
8 has an automatic counting function to facilitate production statistics.
9 Scraper angle adjustable, steel scraper, rubber scraper are suitable.
10 The man-machine interface has a screen protection function to protect the service life of the human-machine interface.
11 With a unique program design, the printing blade holder is easy to adjust.
12 Press speed can be digitally adjusted and controlled.
Feature
Product Name: | ySmt semi-auto Solder Paste Printer |
Used for: | PCB Screen Printing Stencil Machine |
Warranty: | 1 Year |
Shipment | by air |
Delivery Time: | 1-2 Days |
Our Main Market | Whole of the world |
model | CN-3245 | CN-3265 | CN-32125 | CN-32155 |
Printing area | 320×450mm | 320×650mm | 320×1250mm | 320×1550mm |
Substrate size | 320×400mm | 300×600mm | 300×1200mm | 300×1500mm |
The thickness of the substrate | 0.2-2.2mm | 0.2-2.2mm | 0.2-2.2mm | 0.2-2.2mm |
Fixed printing position | PCB Outer Or Pin Positioning | PCB Outer Or Pin Positioning | PCB Outer Or Pin Positioning | PCB Outer Or Pin Positioning |
Bedplate fine-tuning | Front/Back±10mm R/L±10mm | Front/Back±10mm R/L±10mm | Front/Back±10mm R/L±10mm | Front/Back±10mm R/L±10mm |
Printing precision | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
Machine repeatability | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
The minimum distance between | 0.35mm | 0.35mm | 0.35mm | 0.35mm |
The use of air compressor | 4-6Kgf/Cm2 | 4-6Kgf/Cm2 | 4-6Kgf/Cm2 | 4-6Kgf/Cm2 |
Use the power supply | 220V 50/60Hz 100W | 220V 50/60Hz 100W | 220V 50/60Hz 100W | 220V 50/60Hz 100W |
Machine size L * W * H | 900×900×1650mm/ | 900×1000×1650mm/ | 900×1650×1650mm/ | 900×2000×1650mm/ |
Machine weight | 350Kg | 350Kg | 350Kg | 350Kg |
interface | English/chinese | English/chinese | English/chinese | English/chinese |
Application
Printing table area
300X400mm
Frame size
370X470mm, 420X520mm, 550X650mm
Board size
250X330mm
Substrate thickness
0.2-2. Omm
Fixed position of printing
PCB Outer Or Pin Positioning
Platen fine-tuning
Front/back ±10mm R/L ±10mm
Printing accuracy
±0.05mm
Machine repeatability
±0.02mm
Minimum spacing
0.35mm
Use air pressure
4-6kgf/cm2
using electric
Single phase 220V, 50/60Hz, 100W
Machine size
L900XW900XHl650mm
Machine weight
About 250kgs
1. Use the servo system for easy and accurate positioning.
2. The precision guide rail and Panasonic inverter motor are used to drive the blade holder to ensure the printing accuracy.
3. The printing scraper can be rotated 45 degrees upwards for easy cleaning and replacement of the printing plate and scraper.
4. The blade holder can be adjusted forward and backward to select the appropriate printing position.
5. The combined printing platen has a fixed groove and a PIN, and is easy to install and adjust. It is suitable for single and double panel printing.
6. The school edition adopts stencil net movement, combined with printing (PCB) X, Y, Z. Calibration is quick and easy.
7. The use of Sanling FX series PLC and touch screen control is simple and convenient for human-machine dialogue.
8. Can be set to one-way and two-way, a variety of printing methods.
9. With automatic counting function, convenient production statistics.
10. Scraper angle adjustable, steel scraper, rubber scraper are suitable.
11. The touch screen has a screen saver function, and the time can be arbitrarily adjusted to protect the life of the touch screen.
12. Wipe network alarm function, easy to scrub the stencil on time, to ensure print quality.
13. Using AE's unique programming, the print blade holder is easy to adjust.
14. Press speed display, can be adjusted.
