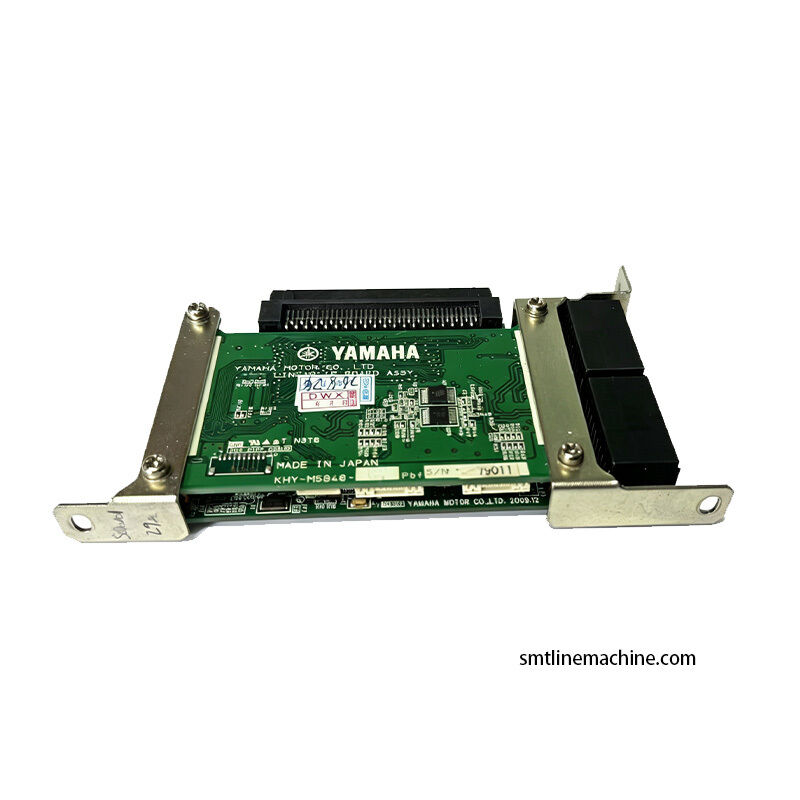

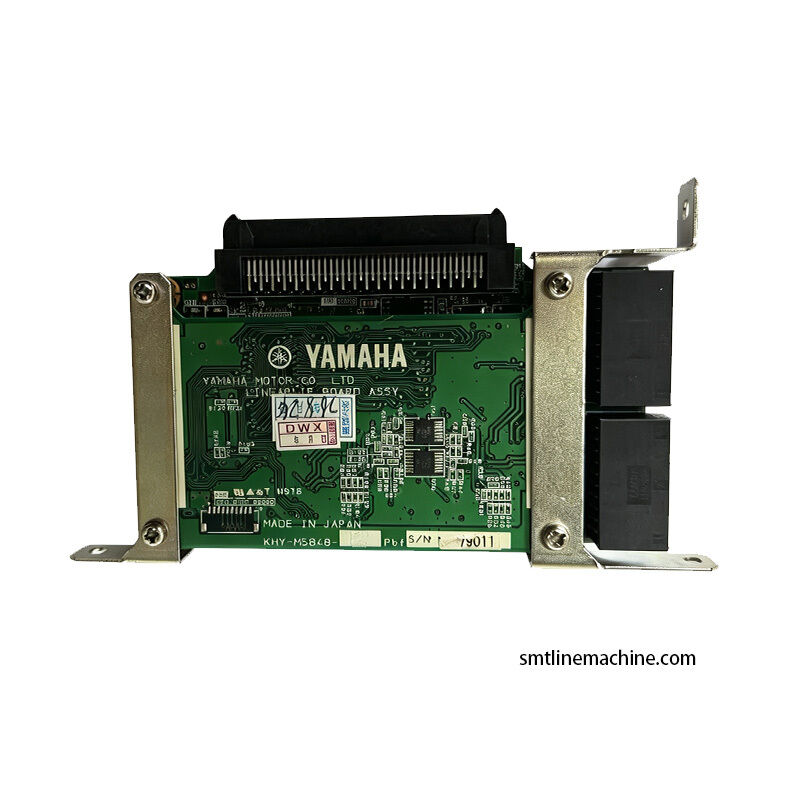

KHY-M5848-020 KHY-M5848-021 YAMAHA Z Servo Board For YG12 YS12 SMT Mounter
-
Highlight
YAMAHA Z Servo Board for YG12
,YAMAHA Z Servo Board for YS12
,YAMAHA SMT Mounter Servo Board
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KHN-M5848-020
-
Model NumberKHY-M5848-020
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,
KHY-M5848-020 KHY-M5848-021 YAMAHA Z Servo Board For YG12 YS12 SMT Mounter
YAMAHA Z Servo Board for YG12/YS12 SMT Mounter
KHY-M5848-020 and KHY-M5848-021 YAMAHA Z Servo Board is a dedicated head Z-axis servo driver board designed for YAMAHA YG12 and YS12 SMT mounters. This board integrates control chips and signal circuits to drive the Z-axis motor of the mounting head, serving as a core spare part for equipment maintenance and replacement.
Technical Specifications
| Part Number | KHY-M5848-020 / KHY-M5848-021 |
|---|---|
| Product Name | Servo Board/Head Driver Board |
| Applicable Equipment | YAMAHA YG12 YS12 SMT Mounter |
| Function | Receive main control commands, drive Z-axis motor of mounting head, precisely control nozzle lifting motion to complete component picking and mounting |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Core Functions
- Z-axis Motor Drive: Independently control nozzle lifting servo motor of mounting head
- Precise Position Control: Guarantee nozzle displacement accuracy under high-speed working condition
- Real-time Signal Communication: Exchange motion commands and status feedback with mainboard
- Compact Installation: Equipped with metal bracket for direct assembly on mounting head
Product Overview
YAMAHA KHY-M5848 Z Servo Board is compatible with YG12 and YS12 high-speed SMT mounters. This dedicated drive board for mounting head Z-axis features compact size with mounting bracket, driving nozzle lifting motor to ensure stable and precise component picking and mounting. It serves as a common maintenance spare part for YG12/YS12 models.
