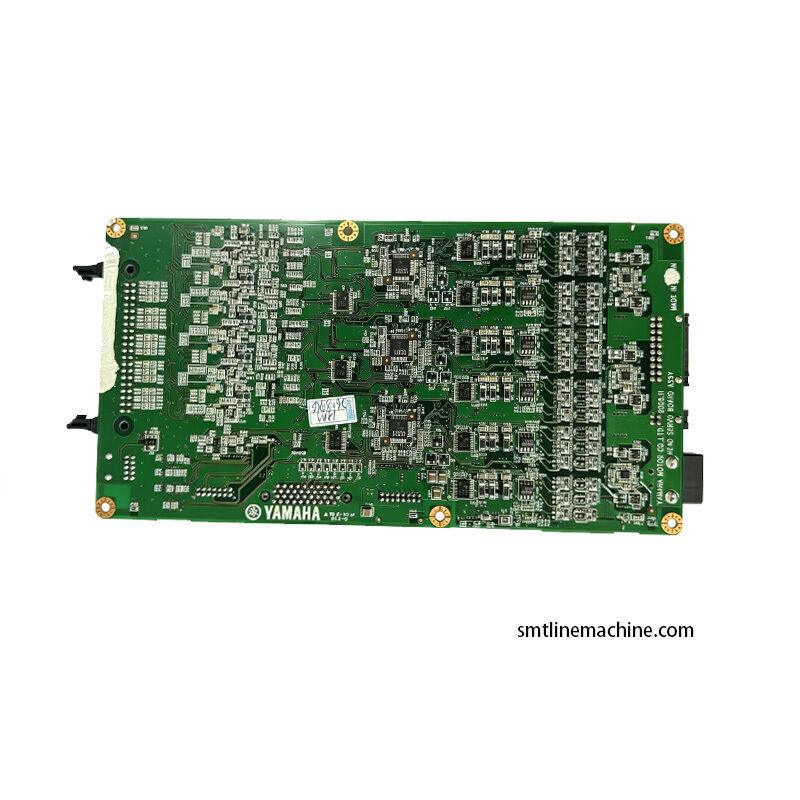

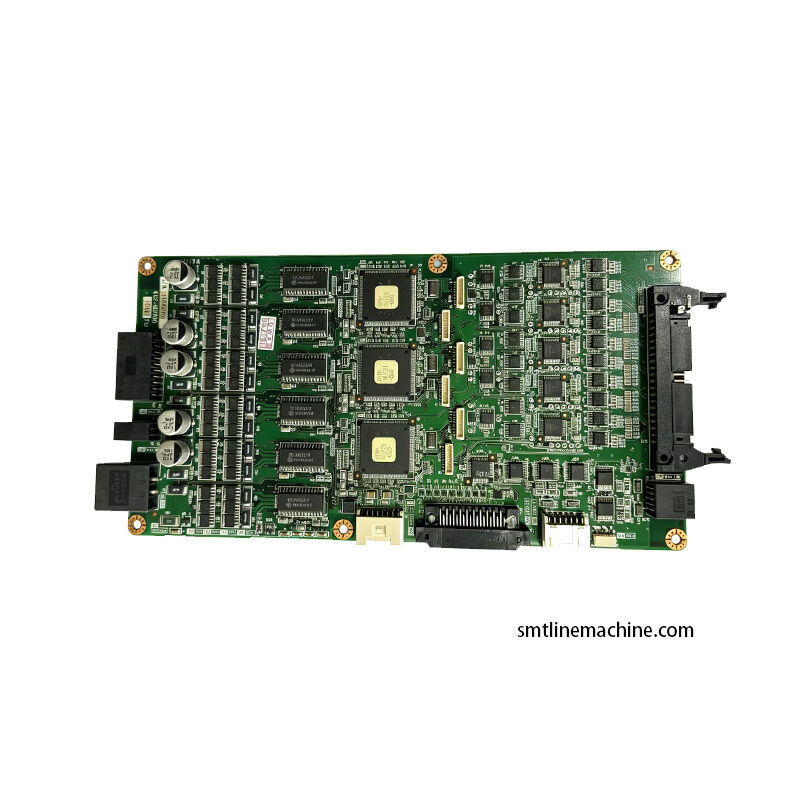

KKE-M5804-010 KKE-M5890-020 YAMAHA Head Servo Board For YS24 SMT Mounter
-
Highlight
YAMAHA head servo board
,YS24 SMT mounter parts
,KKE-M5804-010 servo board
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KKE-M5804-010
-
Model NumberKKE-M5804-010
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,
KKE-M5804-010 KKE-M5890-020 YAMAHA Head Servo Board For YS24 SMT Mounter
YAMAHA Head Servo Board for YS24 SMT Mounter
KKE-M5804-010 KKE-M5890-020 YAMAHA Head Servo Board is a dedicated head servo driver board for YAMAHA YS24 high-speed SMT mounter. Equipped with multi-channel driver chips and main processors, it undertakes servo drive and motion control for multi-axis motors of the mounting head. This board serves as the core control component of the mounting head and is a commonly used spare part for equipment maintenance.
Technical Specifications
| Part Number | KKE-M5804-010 (KKE-M5890-020) |
|---|---|
| Product Name | Head Servo Board / Head Servo Driver Board |
| Applicable Equipment | YAMAHA YS24 High-speed SMT Mounter |
| Function | Receive motion commands from the system mainboard, drive multiple sets of servo motors such as Z-axis and R-axis of the mounting head, precisely control the up-down movement and rotation angle of nozzles, and complete component picking, alignment and mounting actions. |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Core Functions
- Multi-axis Servo Drive: Synchronously control multi-channel Z/R axis motors of mounting head
- High-precision Motion Control: Accurately respond to position and angle commands for high-speed mounting
- High-speed Signal Interaction: Real-time communication with system mainboard for motion data transmission
- Stable Industrial Output: Adapt to long-term non-stop high-speed production in workshop
Product Overview
YAMAHA KKE-M5804-010 Head Servo Board (KKE-M5890-020) is compatible with YS24 high-speed SMT mounter and serves as the core driver board of the mounting head. Built-in multi-channel drive units, it can synchronously control Z-axis and R-axis servo motors of the mounting head to accurately execute component picking and mounting actions. Featuring fast response and stable operation, it is an essential replacement spare part for YS24 maintenance.
