Highlight
YAMAHA Servo Board YS24
,YAMAHA Servo Board YSM10
,SMT Mounter Servo Board
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KHN-M5840-020
-
Model NumberKHN-M5840-020
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,

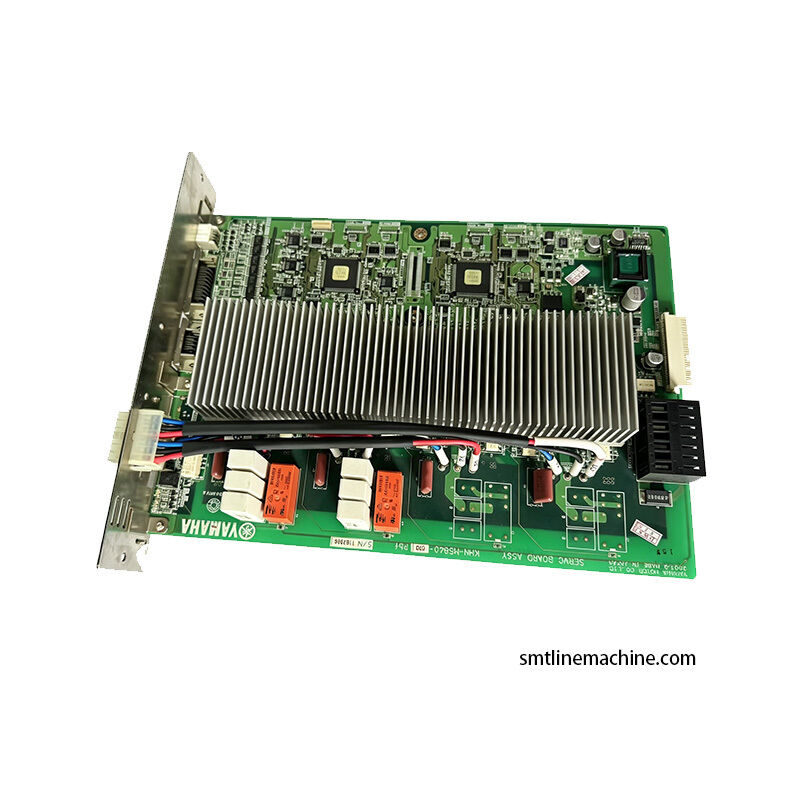

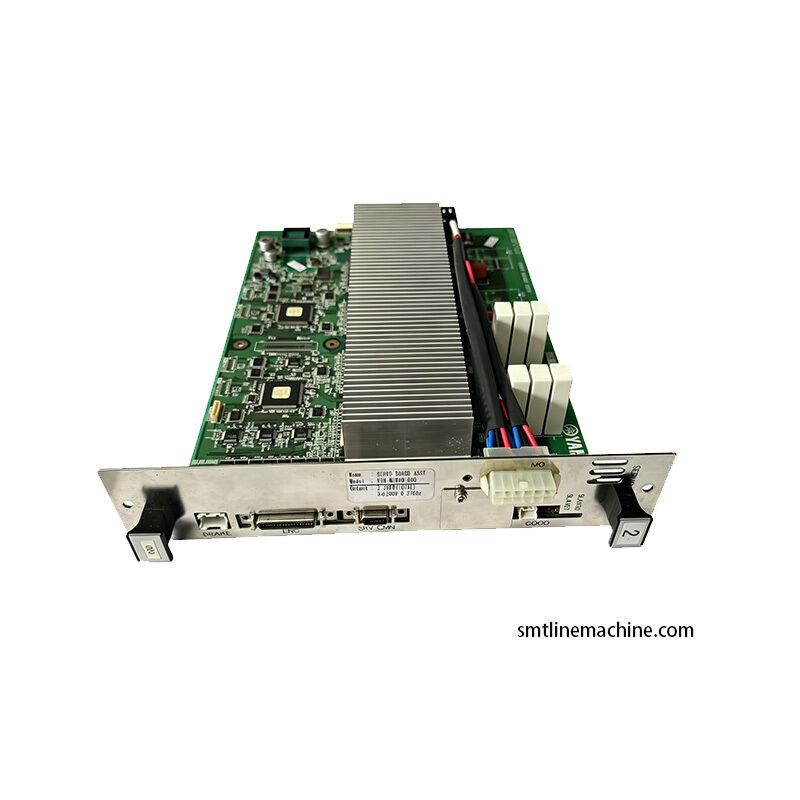

KHN-M5840-020 YAMAHA Servo Board For YS24 YSM10 SMT Mounter
KHN-M5840-020 YAMAHA Servo Board For YS24 YSM10 SMT Mounter
This cabinet servo driver board is designed for YAMAHA YS24 and YSM10 SMT mounters. Equipped with high-power drive circuitry and a large heat sink, it controls servo motors for base axes including XY axis and conveyor systems. As the core component for basic machine motion, it is widely used for equipment maintenance and replacement.
Technical Specifications
| Part Number | KHN-M5840-020 |
|---|---|
| Product Name | Servo Board / Cabinet Servo Board |
| Applicable Equipment | YAMAHA YS24 / YSM10 High-speed SMT Mounter |
| Function | Receives motion commands from system mainboard, drives base axis motors including XY moving platform and conveyor, controls high-precision platform displacement for PCB transmission and mounting positioning |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Core Functions
- High-power Drive for Base Axes: Drives high-load motors of XY platform and conveyor systems
- Precise Motion Positioning: Ensures positioning accuracy during high-speed platform movement
- Efficient Heat Dissipation: Built-in large heat sink for stable continuous high-power output
- High-speed Communication: Real-time signal transmission with CPU board to synchronize machine motions
Product Overview
The YAMAHA KHN-M5840-020 Servo Board is compatible with YS24 and YSM10 high-speed SMT mounters, serving as the base axis drive board within the machine control cabinet. Featuring high-power drive circuitry and integrated heat sink technology, it primarily drives XY platform and conveyor motors to guarantee fast and accurate machine positioning. Its reliable performance makes it an essential spare part for mounter maintenance operations.
