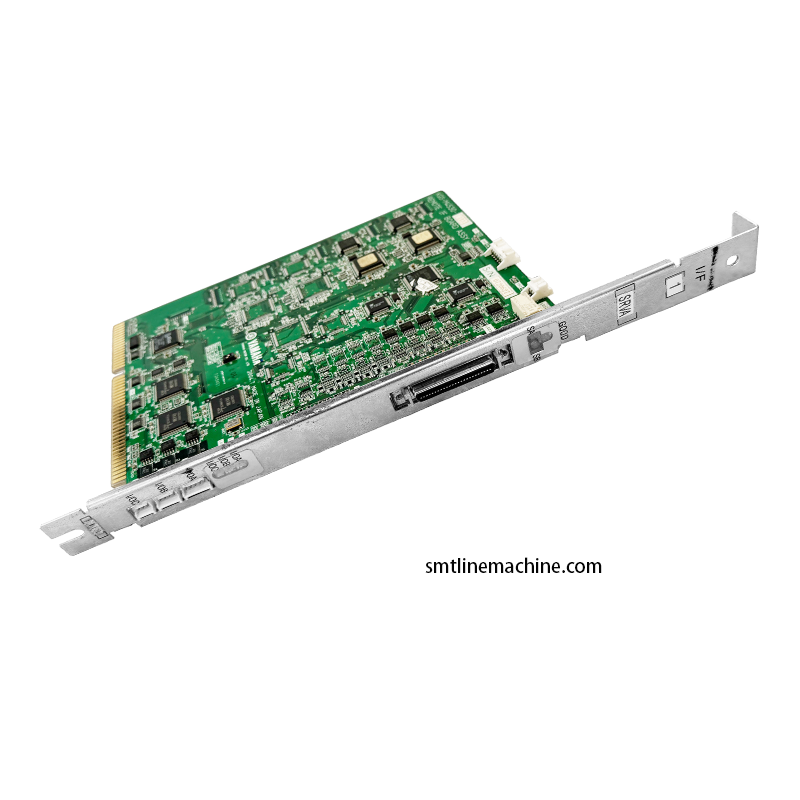

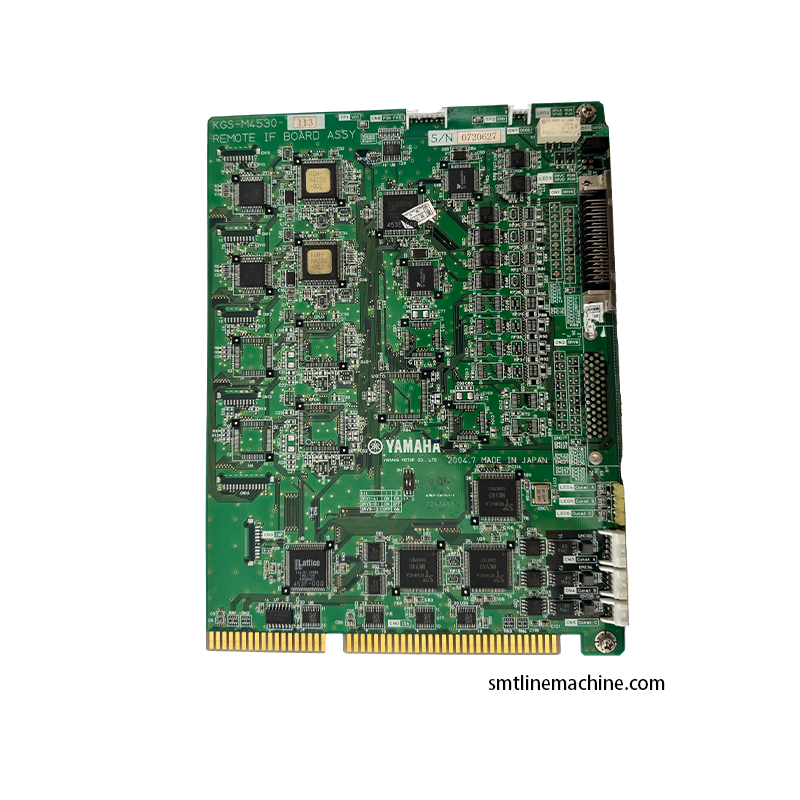

KGS-M4530-113 Remote IF Circuit Card Original Communication Spare Part For YAMAHA YG100 Mounter
-
Highlight
YAMAHA YG100 mounter remote IF card
,original YAMAHA communication spare part
,KGS-M4530-113 remote circuit card
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE- KGS-M4530-113
-
Model NumberKGS-M4530-113
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
KGS-M4530-113 Remote IF Circuit Card Original Communication Spare Part For YAMAHA YG100 Mounter
KGS-M4530-113 Remote IF Circuit Card
Original Communication Spare Part For YAMAHA YG100 Mounter
This remote IF circuit card is a core signal interaction component exclusively designed for YAMAHA YG100 placement equipment. It integrates multi-channel signal processing chips with anti-interference circuit layout, serving as the critical transmission medium between the machine mainboard and external peripheral modules.
Technical Specifications
| Part Number | KGS-M4530-113 |
| Product Name | YAMAHA Industrial Equipment Interface Control Board Remote IF Circuit Card For YG100 SMT Mounter |
| Applicable Equipment | YAMAHA YG100 universal medium speed chip placement machines for PCB mass assembly production |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Installed within the electrical cabinet of YG100 series mounters, this signal interaction card manages data transfer between the host control unit and external operation modules. It converts peripheral operation instructions into identifiable digital signals for the main system while synchronously feeding back equipment running state data. The industrial interface control board promptly detects abnormal communication signals to minimize unexpected shutdown risks during extended PCB assembly operations.
Core Functions
- Multi-channel independent communication circuits ensure smooth bidirectional data transmission between peripherals and main unit without signal delay
- Multi-layer solder mask protected PCB substrate resists workshop oil and dust contamination, extending the replacement cycle
- Original standard golden finger and port definition support direct plug-and-play installation without rewriting machine control programs
- Built-in filter voltage stabilization circuit module reduces electromagnetic interference to stabilize overall equipment communication
CNSMT supplies fully tested original KGS-M4530-113 remote IF circuit cards compatible with YAMAHA YG100 mounters. The reliable data transmission capability eliminates communication breakdown risks in mass PCB manufacturing, reducing equipment overhaul frequency for production facilities. This SMT communication circuit board maintains sufficient inventory to support fast global delivery for daily equipment maintenance and spare parts storage.
Contact Information
Phone: +8613537875415 (Huang)
Email: Lizzy@smtlinemachine.com
Address: Xintian Industrial Area, Baoan, Shenzhen City, China
