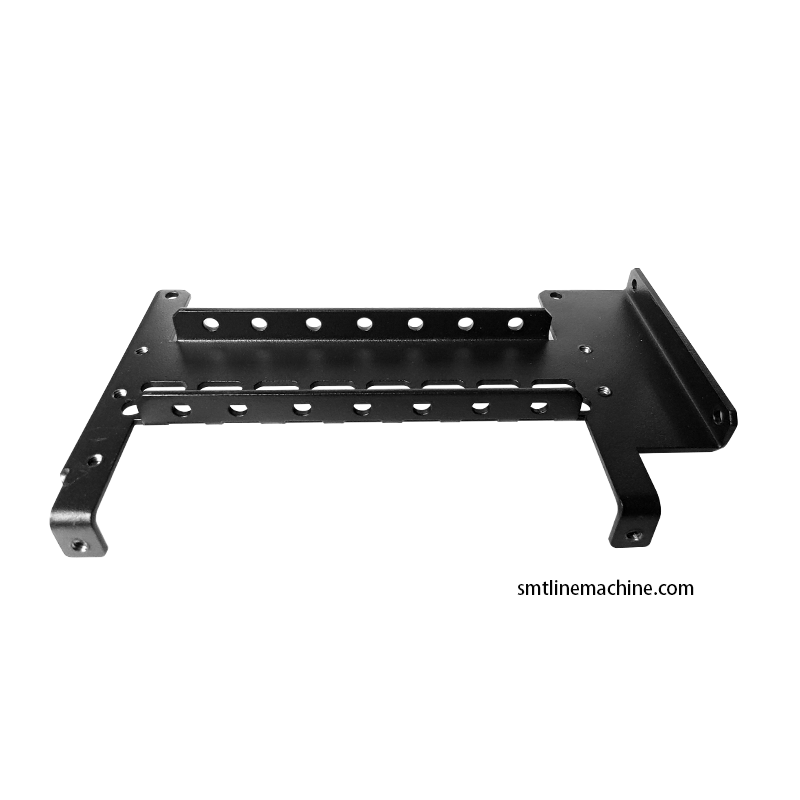

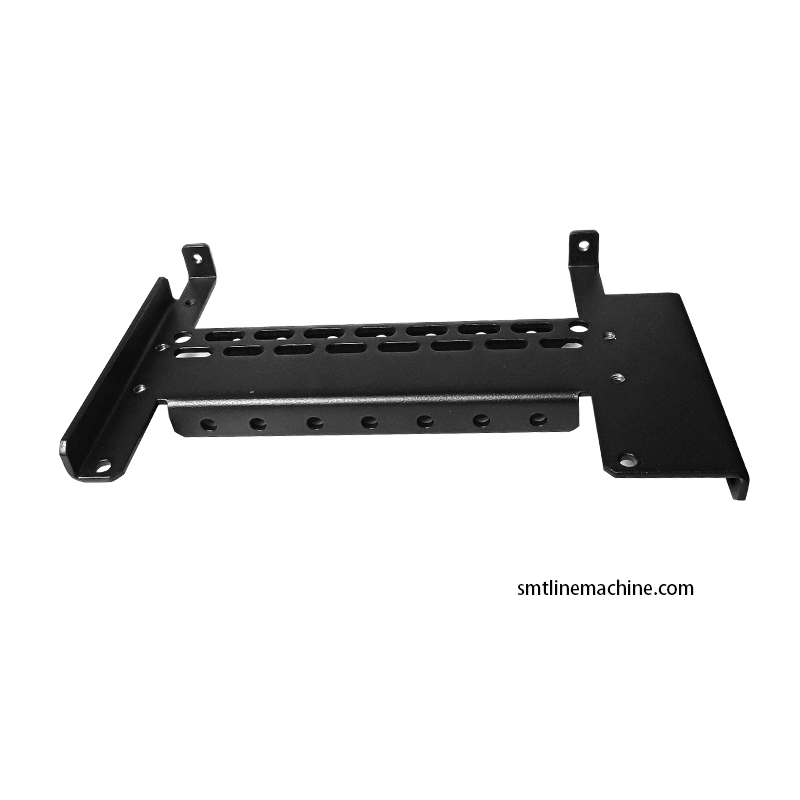

KGB-M71W7-00X KV8-M71W7-00X Head Solenoid Valve Bracket for YAMAHA yv100xg
-
Highlight
YAMAHA yv100xg solenoid valve bracket
,YAMAHA head solenoid valve bracket
,YAMAHA spare parts solenoid valve
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE- K40-M7133-000
-
Model NumberK40-M7133-000
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
KGB-M71W7-00X KV8-M71W7-00X Head Solenoid Valve Bracket for YAMAHA yv100xg
YAMAHA KGB-M71W7-00X KV8-M71W7-00X Head Solenoid Valve Bracket
KGB-M71W7-00X and KV8-M71W7-00X are matched upper and lower fixing brackets dedicated to the head solenoid valve assembly of YAMAHA YV100XG mounters. The two aluminum alloy workpieces form an integrated mounting frame via positioning holes, undergoing precision CNC cutting and anti-corrosion black oxidation treatment.
They lock the entire set of UP/DOWN buffer solenoid valves installed on the placement head, disperse vibration load generated during high-speed cyclic placement, prevent valve displacement and air pipe loosening, and maintain stable air circuit signal transmission for long-term continuous production.
Technical Specifications
| Part Number | KGB-M71W7-00X/KV8-M71W7-00X |
|---|---|
| Product Name | YAMAHA Head Solenoid Valve Bracket |
| Applicable Equipment | YAMAHA YV100X YV100XG series high-speed SMT placement machines |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Installed on the inner cavity of YV100XG placement head, jointly clamping the 55W and 56W solenoid valve modules. Restrict the horizontal and vertical displacement of the valve body during high-speed reciprocating movement, avoid air tube interface leakage caused by vibration.
Keep vacuum and blow air supply unobstructed, reduce abnormal throwing defects induced by unstable air pressure, and extend the service cycle of solenoid valves and connected air pipelines on SMT production lines.
Core Functions
- Matched pair with original positioning hole layout for direct replacement without modification across all YV100X XG machines
- High-strength aluminum alloy substrate delivers outstanding anti-deformation and shock resistance to resist cracking under frequent vibration
- Hard anodized surface coating blocks solder dust and workshop oil contamination to slow aging and rust
- Layered clamping limiting structure locks solenoid valve assembly firmly and sharply cuts air tube loosening and air leakage failures
CNSMT supplies brand new matched KGB-M71W7-00X KV8-M71W7-00X head solenoid valve brackets for YAMAHA YV100XG SMT mounters. Reliable clamping and vibration isolation stabilize air circuit operation and lower abnormal component dropping rate. Complete paired kits are in stock to support rapid global shipment for head overhaul and daily spare part replenishment.
