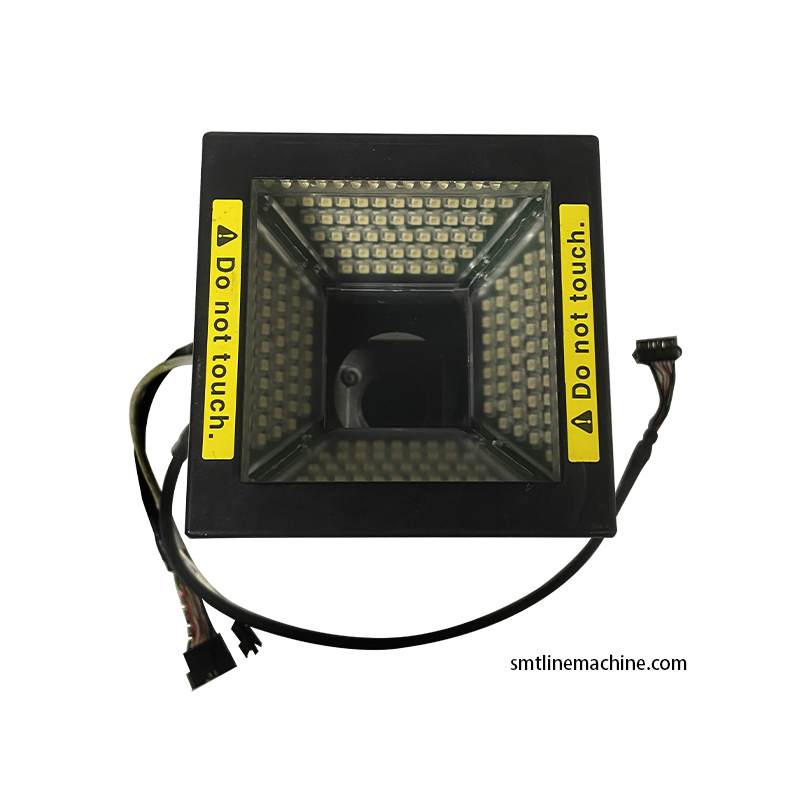

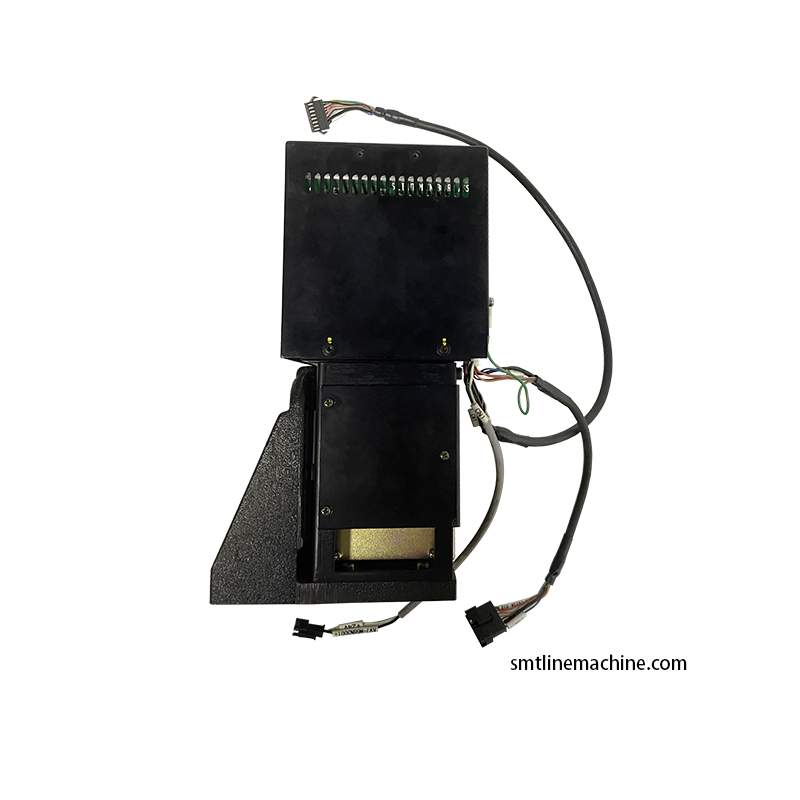

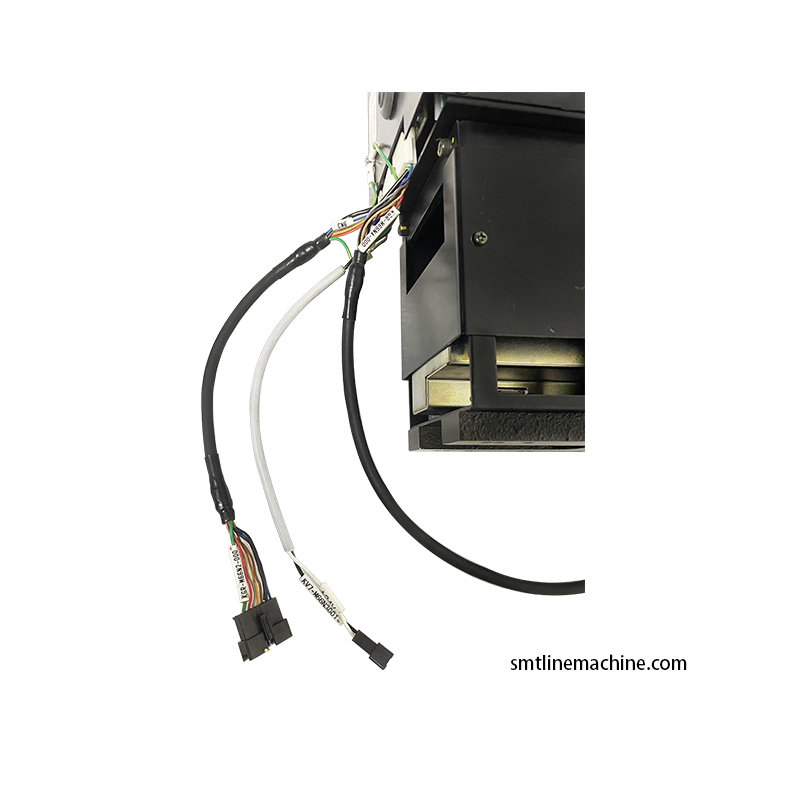

KGR-M72A0-50 Fine Pitch Inspection Vision Camera Original Vision Spare Part For YAMAHA YG88 YS88 Mounter
-
Highlight
YAMAHA YG88 fine pitch inspection camera
,YAMAHA YS88 vision spare part
,YAMAHA mounter original vision camera
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE- KGR-M72A0-50
-
Model NumberKGR-M72A0-50
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
KGR-M72A0-50 Fine Pitch Inspection Vision Camera Original Vision Spare Part For YAMAHA YG88 YS88 Mounter
YAMAHA Fine Pitch Inspection Vision Camera
KGR-M72A0-50 Fine Pitch Inspection Vision Camera Original Vision Spare Part For YAMAHA YG88 YS88 Mounter
This YS88 fine pitch camera is a factory original visual detection module designed for YAMAHA high-precision placement platforms. Equipped with high-resolution industrial lens and anti-interference signal transmission line, it captures clear contour data of tiny micro chips during high-speed mounting. As core YAMAHA vision spare parts, it effectively identifies pin offset and component deviation, ensuring stable visual recognition efficiency under long-day workshop operating environment with dust and oil mist.
Technical Specifications
| Part Number | KGR-M72A0-50 |
| Product Name | YAMAHA Fine Pitch Inspection Vision Camera For YG88 YS88 SMT Mounter |
| Applicable Equipment | YAMAHA YG88 YS88 high precision micro component placement machines for fine pitch chip production |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Mounted on the moving beam of YG88 series mounter, this SMT mounter vision module performs real-time image collection for 0402 tiny components and fine pitch ICs before placement. It transmits captured graphic data to the host image processing system to calculate component coordinate correction value automatically. The high precision placement lens minimizes recognition blind spots and reduces false detection faults that cause PCB production yield loss.
Core Functions
- High pixel industrial imaging lens captures clear outline of fine pitch components with extremely low recognition error
- Shielded signal cable blocks workshop electromagnetic interference to deliver stable jitter-free inspection images
- Original standard positioning holes allow direct installation without calibration compatible with full YG88 YS88 machine lineup
- Sealed dust-proof lens barrel prevents solder dust and oil from invading inner lens to extend service life of the vision module
CNSMT supplies brand new original KGR-M72A0-50 high precision placement camera matching YAMAHA YG88 YS88 mounters. Stable micro component image recognition capability optimizes fine pitch chip production quality and lowers unexpected downtime caused by vision failure. This industrial inspection lens maintains adequate stock to support fast global delivery for factory equipment maintenance and spare part storage.
Contact Information
Phone: +8613537875415 (Huang)
Email: Lizzy@smtlinemachine.com
Address: Xintian Industrial Area, Baoan, Shenzhen City, China
