YAMAHA YRM20 motherboard assy
,MOTHER BOARD ASSY for YAMAHA
,YAMAHA spare parts motherboard
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KME-M4510-011
-
Model NumberKME-M4510-011
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

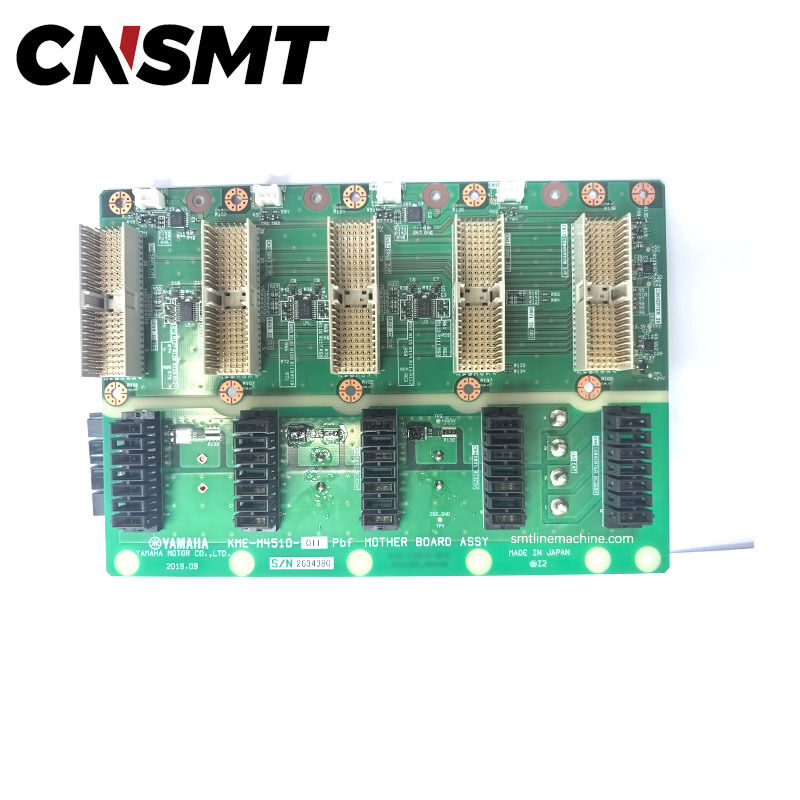

KME-M4510-011 MOTHER BOARD ASSY FOR YAMAHA YRM20

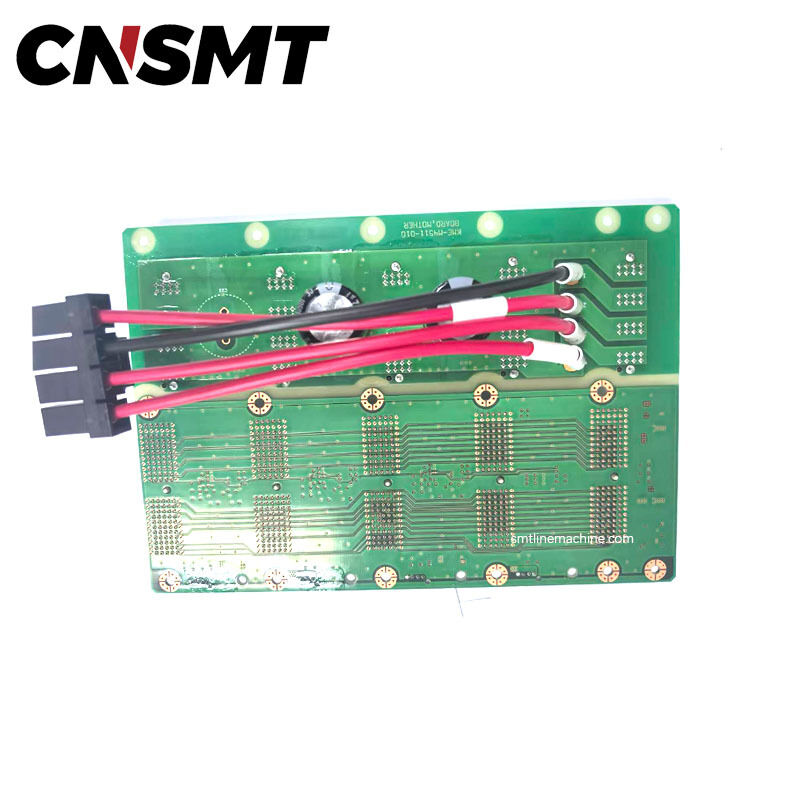

KME-M4510-011 MOTHER BOARD ASSY FOR YAMAHA YRM20
Product Specifications
| Part Number | KME-M4510-011 |
|---|---|
| Product Name | MOTHER BOARD ASSY (Backplane Board Assembly) |
| Compatible Equipment | YAMAHA YRM20 High-speed Rotary Head Modular Pick & Place Mounter |
| Category | Central Interconnect Backplane PCB For Full Control Cards |
Product Description
The KME-M4510-011 backplane motherboard serves as the framework core backplane inside the YRM20 electrical cabinet. All functional control cards including system unit board, servo master board, servo drive boards, vision board and converter board are plugged vertically into its dedicated slots. This assembly functions as the central hub for overall power distribution, high-speed bus interconnection and cross-board signal communication, which determines the overall stability of the machine control system.
