KMX-M9600-B/A/J00 YAMAHA YRM20/YRM10 A/B Type Nozzle Auto Changer Station
-
Highlight
YAMAHA nozzle auto changer station
,YRM20 YRM10 A/B type nozzle
,KMX-M9600-B/A/J00 YAMAHA spare parts
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KMX-M9600-J00
-
Model NumberKMX-M9600-B0
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

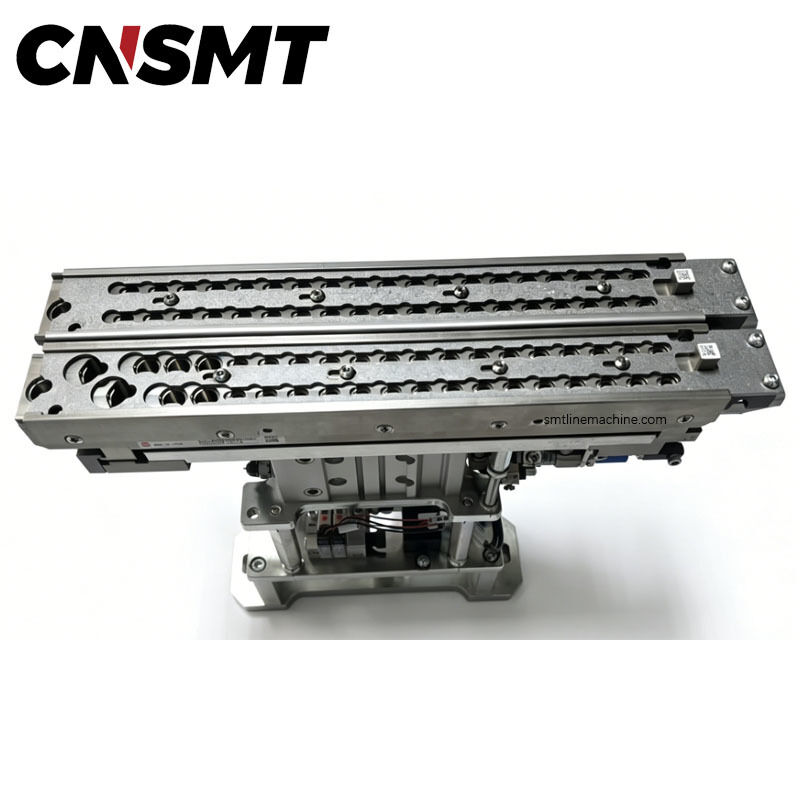

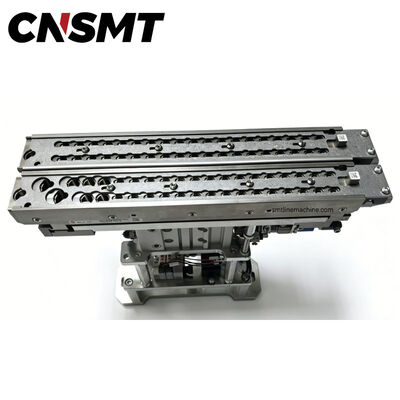

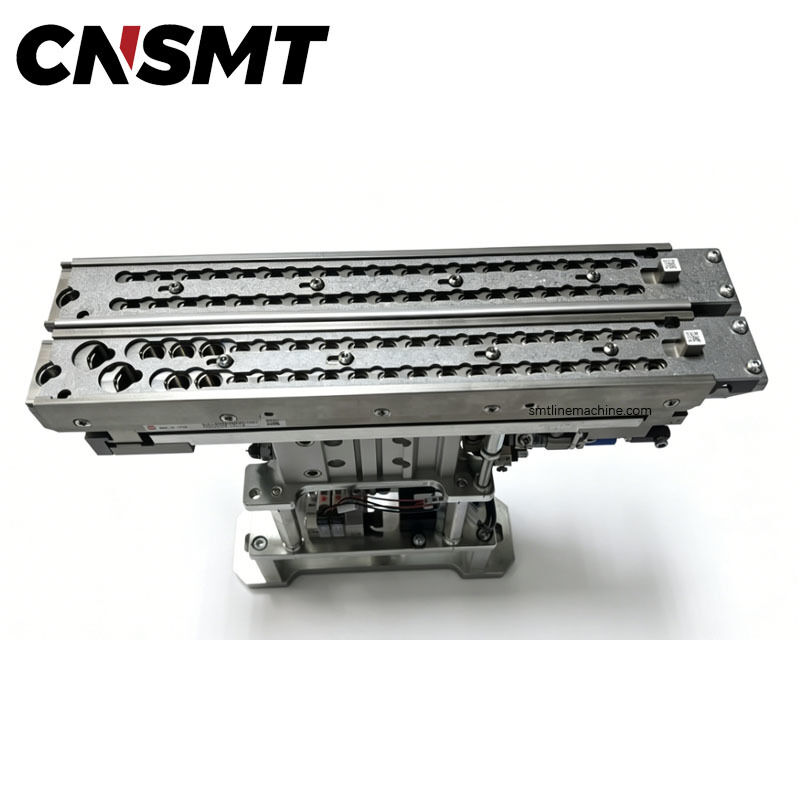

KMX-M9600-B/A/J00 YAMAHA YRM20/YRM10 A/B Type Nozzle Auto Changer Station
Original automatic nozzle switching unit designed for Yamaha YRM20 and YRM10 pick & place mounters. This assembly consists of Type A and Type B independent changer modules for automatic nozzle replacement during production.
- KMX-M9600-A10: Type A Nozzle Changer Station for small-size nozzles
- KMX-M9600-B20: Type B Nozzle Changer Station for large-size nozzles
Type A nozzle station stores and swaps tiny nozzles for micro component mounting (0201, 0402 chips). Type B nozzle station accommodates larger specification nozzles for big component placement work.
Automatic nozzle change design eliminates manual replacement and machine downtime, improving production changeover efficiency, reducing human error, and ensuring continuous stable operation of SMT production lines.
| # | Part Number | Description |
|---|---|---|
| 1 | KHN-M7713-10 | SPRING |
| 2 | KMX-M7702-00 | O-RING |
| 3 | KMX-M7703-00 | SPRING |
| 4 | KMX-M7704-10 | PIN |
| 5 | KMX-M7713-00 | SHAFT,NOZZLE 0402 |
| 6 | KMX-M7713-A0 | NOZZLE 8103A ASSY. |
| 7 | KMX-M7714-00 | SHAFT,NOZZLE 0603 |
| 8 | KMX-M7714-A0 | NOZZLE 8104A ASSY. |
| 9 | KMX-M7715-00 | SHAFT,NOZZLE 1005 |
| 10 | KMX-M7715-A0 | NOZZLE 8105A ASSY. |
| 11 | KMX-M7716-00 | SHAFT,NOZZLE 1608 |
| 12 | KMX-M7716-A0 | NOZZLE 8106A ASSY. |
| 13 | KMX-M7717-00 | SHAFT,NOZZLE 2012 |
| 14 | KMX-M7717-A0 | NOZZLE 8107A ASSY. |
| 15 | KMX-M7718-00 | SHAFT,NOZZLE 3216 |
| 16 | KMX-M7718-A0 | NOZZLE 8108A ASSY. |
| 17 | KMX-M7723-00 | SHAFT,NOZZLE 0603/1005 |
| 18 | KMX-M7723-A0 | NOZZLE 8004H ASSY. |
| 19 | KMX-M7724-00 | SHAFT,NOZZLE 1608/2012 |
| 20 | KMX-M7724-A0 | NOZZLE 8006H ASSY. |
| 21 | KMX-M7703-10 | SPRING |
| 22 | KMX-M7719-02 | BODY,NOZZLE 8109A |
| 23 | KMX-M7719-A1 | NOZZLE 8109A ASSY. |
| 24 | KMX-M7720-00 | BODY,NOZZLE 8110R |
| 25 | KMX-M7720-A0 | NOZZLE 8110R ASSY. |
| 26 | KMX-M7725-00 | BODY,NOZZLE 8011H |
| 27 | KMX-M7725-A0 | NOZZLE 8011H ASSY. |
| 28 | KMX-M7726-00 | BODY,NOZZLE 8012H |
CNSMT supplies original new, tested refurbished, and high-quality aftermarket KMX-M9600-A10 & KMX-M9600-B20 nozzle changer stations. All units undergo full function inspection before shipment with competitive pricing and fast global delivery.
