YAMAHA YRM20 SRV master board
,YAMAHA spare parts motherboard
,YRM20 motherboard assembly
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KME-M4530-B01
-
Model NumberKME-M4530-B01
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

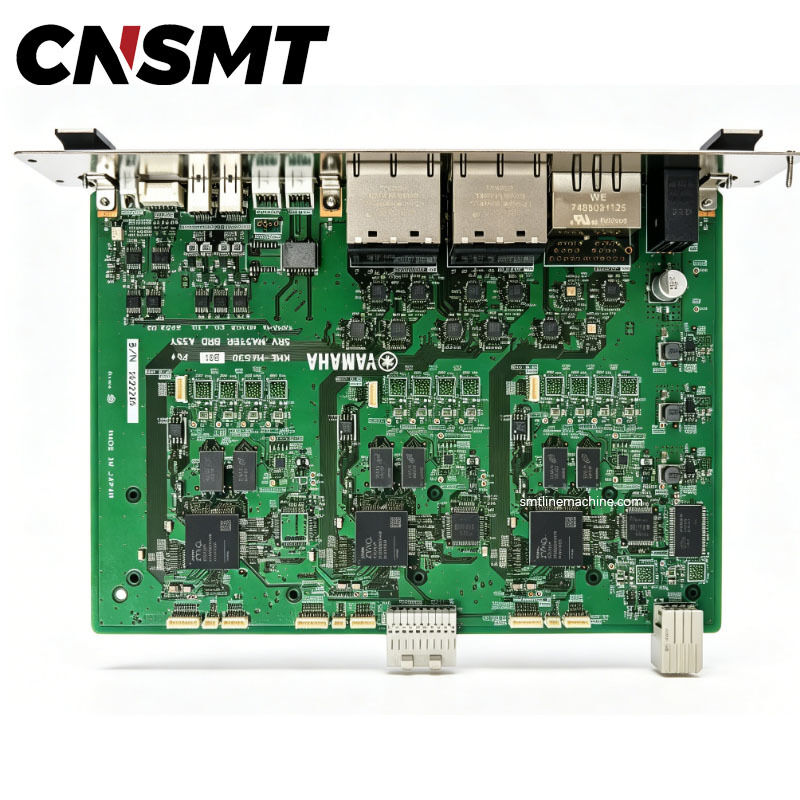

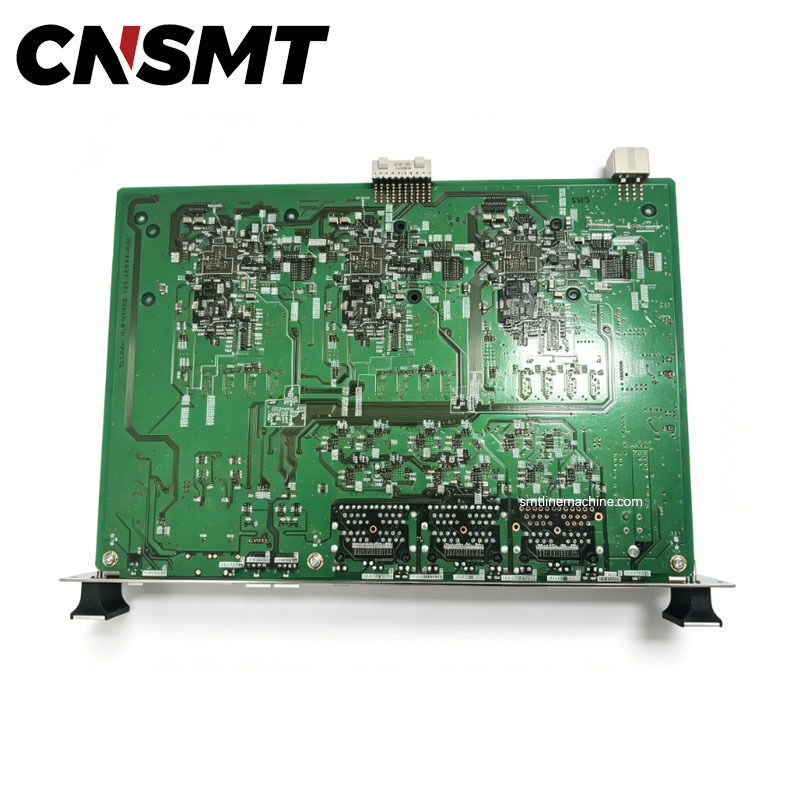

KME-M4530-B01 SRV MASTER BRD ASSY FOR YAMAHA YRM20
KME-M4530-B01 SRV MASTER BRD ASSY FOR YAMAHA YRM20
Part Number: KME-M4530-B01
Product Name: SRV MASTER BRD ASSY (Servo Master Board Assembly)
Compatible Machine: YAMAHA YRM20 High-speed Rotary Head Pick & Place Mounter
Product Category: Core Motion Control PCB Spare Parts for SMT Mounter
Product Name: SRV MASTER BRD ASSY (Servo Master Board Assembly)
Compatible Machine: YAMAHA YRM20 High-speed Rotary Head Pick & Place Mounter
Product Category: Core Motion Control PCB Spare Parts for SMT Mounter
Product Overview
The KME-M4530-B01 servo master board serves as the central motion control core for Yamaha YRM20 placement machines. Designed as a CPCI plug-in module, it installs directly on the machine backplane to coordinate all motion operations.
Key Functions
- Receives motion commands from system unit board and calculates interpolation trajectory
- Distributes bus control signals to all servo axes including rotary head Z/R axis
- Coordinates conveyor track, feeder driving axis, and positioning axes operations
- Establishes real-time data communication via multiple industrial Ethernet ports
- Collects encoder position, current, and load feedback data for high-precision closed-loop positioning
- Monitors abnormal operations including overload, step loss, and communication disconnection
- Synchronizes vision positioning, nozzle changer, and board transfer actions
Common Replacement Scenarios
- Servo initialization failure on startup
- Axis alarm and home position reset errors
- Severe placement offset and frequent component rejection
- Step loss at high operating speeds
- Servo bus communication errors
- Axis jitter or out-of-control movement
- Board aging, IC damage, or port breakdown
Supply Advantages
CNSMT stocks original new and fully tested refurbished KME-M4530-B01 servo master boards. All used boards undergo comprehensive testing including power-on aging tests, Ethernet port continuity verification, and servo linkage running inspections before shipment. We provide plug-and-play replacement solutions along with complete YRM20 series spare parts support.
Related Parts List
| No. | Part Number | Description |
|---|---|---|
| 1 | KMX-M5109-00 | 12.1TOUCH LCD |
| 2 | KMX-M4899-00 | SIG. TOWER ASSY. |
| 3 | KKE-M4899-10 | LIGHT 1 ASSY. |
| 4 | KKE-M4899-20 | LIGHT 1 ASSY. |
| 5 | KKE-M4899-30 | LIGHT 1 ASSY. |
| 6 | KKE-M4899-40 | LIGHT 1 ASSY. |
| 7 | KKE-M4899-50 | LIGHT 1 ASSY. |
| 8 | KKE-M4899-60 | LIGHT 1 ASSY. |
| 9 | KKE-M4899-70 | LIGHT 1 ASSY. |
| 10 | KKE-M4899-80 | LIGHT 1 ASSY. |
| 11 | KKE-M4899-90 | LIGHT 1 ASSY. |
| 12 | KKE-M4899-A0 | LIGHT 1 ASSY. |
| 13 | KKE-M4899-B0 | LIGHT 1 ASSY. |
| 14 | KMX-M1390-00 | LCD STAY ASSY. |
| 15 | KMX-M65N5-00 | HNS,ACTIVE |
| 16 | KMX-M65N5-10 | HNS,READY |
| 17 | KMX-M65N5-20 | HNS,START |
| 18 | KMX-M65N5-30 | HNS,STOP YM |
| 19 | KMX-M65N5-40 | HNS,ERR.CLR.YM |
| 20 | KMX-M65N5-50 | HNS,RESET |
| 21 | KMX-M65N5-60 | HNS,STOP CE |
| 22 | KMX-M65N5-70 | HNS,ERR.CLR.CE |
| 23 | KMX-M1385-A0 | ERR LIGHT ASSY. |
| 24 | KMX-M1385-B0 | ERR LIGHT ASSY. |
| 25 | KME-M4207-A0 | USB MEMORY ASSY. |
| 26 | KLW-M65NA-A0 | SELECT 1A ASSY. |
| 27 | KMX-M5136-00 | HNS EMG SW |
| 28 | KMX-M5183-00 | SEAL,CLAMP ON/OFF |
KME-M4530-B01 SRV MASTER BRD ASSY, Yamaha YRM20 servo master board, YRM20 main servo control board
Replacement KME-M4530-B01 servo master board for Yamaha YRM20 mounter, KME-M4530-B01 motion control main board assembly
SMT pick and place machine servo control board, CPCI servo master board, placement machine axis motion controller board
Yamaha YRM20 spare parts, YRM series mounter circuit board, Yamaha rotary head control board
Replacement KME-M4530-B01 servo master board for Yamaha YRM20 mounter, KME-M4530-B01 motion control main board assembly
SMT pick and place machine servo control board, CPCI servo master board, placement machine axis motion controller board
Yamaha YRM20 spare parts, YRM series mounter circuit board, Yamaha rotary head control board
