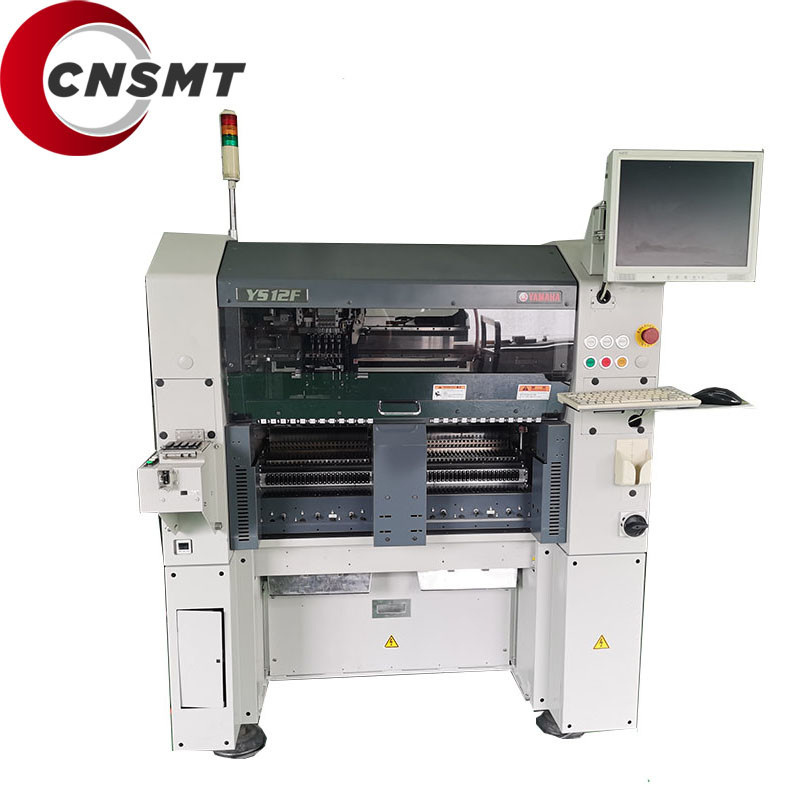

50NL/min Pressure Pick And Place Machine Fastest for Large-Scale Production

The Pick And Place Machine is a state-of-the-art automatic pick and place machine designed to provide high-speed and accurate placement of components on printed circuit boards. With a chip speed of up to 100,000 CPH (components per hour), this machine is considered one of the fastest pick and place machines on the market.

Featuring advanced alignment technology, the Pick And Place Machine offers the option of Fly Cam + Stage Cam alignment for precise component placement. This ensures that components are placed accurately and securely on the PCB, reducing the chances of errors or misalignments.

Designed to accommodate a wide range of PCB thicknesses, this pick and place machine supports PCBs ranging from 0.38mm to 4.2mm in thickness. This versatility allows for the processing of various types of PCBs, making it suitable for a wide range of electronic manufacturing applications.

The Pick And Place Machine operates at a pressure range of 0.5-0.7MPa (5-7kgt/cm2), with an air consumption rate of 350NL/min for the main nozzle and 50NL/min for the sub-nozzle. This efficient use of air pressure ensures optimal performance and accuracy during the component placement process.

Equipped with two gantry systems and a total of 10 mounting spindles, the Pick And Place Machine offers a high level of productivity, with the capability to achieve up to 100,000 CPH for optimum performance. This configuration allows for rapid and efficient component mounting, making it ideal for high-volume production environments.

• Product Name: YAMAHAYAMAH
• Alignment: Fly Cam + Stage Cam (Option)
• Product Category: SMT Pick And Place Machine
• Accuracy: ±22 μm @ cpk ≥ 1.0
• Pressure: 0.5-0.7MPa (5-7kgt/cm2) 350NL/min, 50NL/min

JUKI Pick And Place Machine, specifically the models KE2050M and KE2050CM, is a versatile and high-performance product designed for various Product Application Occasions and Scenarios in the electronics manufacturing industry.

As a leading brand in the industry, JUKI's SMT Pick And Place Machine is CE certified and originates from Japan, ensuring top-notch quality and reliability. The minimum order quantity is 1, and the price is subject to negotiation, making it accessible to both small-scale and large-scale production facilities.

The Payment Terms for this Desktop SMT Pick And Place Machine are flexible, accepting T/T, Paypal, and Western Union. With a Supply Ability of 10 units per day, customers can rely on timely delivery within 5-7 workdays. The Packaging Details come in a secure wooden box, ensuring safe transportation.

Under the brand YAMAHA this Fastest Pick And Place Machine operates at a pressure of 0.5-0.7MPa (5-7 kgf/cm2), with an air consumption rate of 350NL/min and 50NL/min. The precision of this machine is impressive, with an Accuracy of ±22 μm @ cpk ≥ 1.0, meeting stringent manufacturing requirements.

Thanks to its wide Component Range capability of handling components from 0201 to □22 mm (Fly) and up to L150 x 55 mm (Stage), this JUKI Pick And Place Machine is suitable for various production scenarios. Whether for small surface mount components or larger parts, this machine offers the flexibility needed in modern electronics manufacturing.

• On-site installation and setup assistance
• Training for operators and maintenance personnel
• Remote troubleshooting and diagnostic support
• Spare parts ordering and replacement services
• Software updates and technical documentation

Product Packaging: The SMT Pick And Place Machine is carefully packaged in a sturdy cardboard box to ensure safe shipping. The machine is securely cushioned with foam inserts to prevent any damage during transportation.

Shipping: Once the order is placed, our team will process and pack the SMT Pick And Place Machine within 1-2 business days. We use reliable shipping services to deliver the product to your specified address. You will receive a tracking number to monitor the status of your shipment.
