Detail:

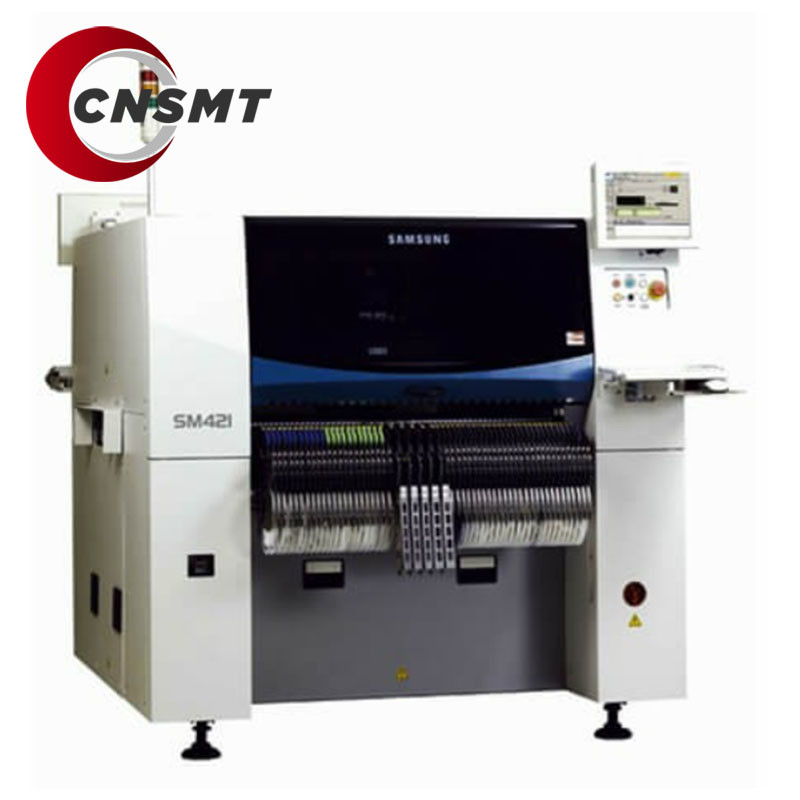

| Samsung SM421 Pick and Place Machine |
| Feeder: Max. 120 (8mm feeders) |
| 1650 (L) x 1690 (D) x 1485 (H) |
| PCB: 460 (L) x 400 (W) mm |
| Product description: Samsung SM421 Pick and Place Machine |
USED SAMSUNG SM421 PLACEMENT MACHINE.
Packaging & Delivery
Packaging Details
High - speed used surface chip mounter Samsung SM421 Pick and Place SMT Machine for circuit board placement package
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment.
Delivery Time:SMT Machine Within 7-20 working days after get payment
The SM421 uses the Samsung's patented On The Fly identification system, which fits quickly from
0603 tiny chips to 22mmIC components. It also features high pixel vision in the Stage Camera to
identify standard 42mm, 0.4mm precision micro-pitch components with a 45mm camera.
IC components can be mounted with high precision of 30 microns, and polygon recognition
algorithms are also supported. Components with complex shapes can be easily mounted.
The best performance at the same level, the production capacity of 20-40% higher than the same level.
New non-stop refueling feeder to improve efficiency, semi-electric operation, stability and high
reliability. Easy operation, programming line changing speed Fast. Offline programming,
Line balancing and other software functions are complete, with Chinese display less wearing parts,
low maintenance costs, low noise, low energy consumption and cost savings.
Samsung SM421 parameters
Mounting Speed: 21,000 CPH / Chip (IPC9850 Reference)
5,500 CPH / QFP (IPC9850 Baseline)
- Placement: ± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP
- Component Range: Max, 0402 (01005) Chip ~ □ 55mm
0603 (0201) Chip ~ □ 55mm (standard)
Chip Theoretical Speed 21,000 CPH / Chip
Mounting range 0603 tiny chip to □ 22mmIC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) x 400 (W) mm
Device Size 1650 (L) x 1690 (D) x 1485 (H)
- PCB:
460 (L) x 400 (W) mm
510 (L) x 460 (W) mm (option)
610 (L) x 510 (W) mm (option)
-IT and batch tracking system
- Feeder: Max. 120 (8mm feeders)

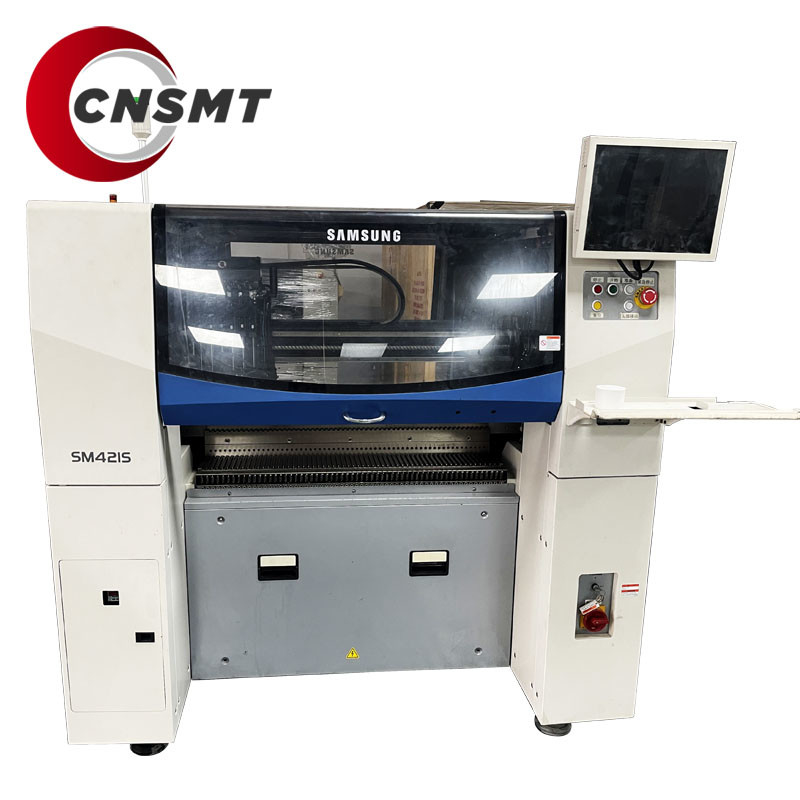

- Feeder: Max. 60 (8mm feeders) SM421S
- Dimensions: 1650 (L) x 1690 (D) x 1485 (H)
The SM421 uses the Samsung's patented On The Fly identification system, which fits quickly from
0603 tiny chips to 22mmIC components. It also features high pixel vision in the Stage Camera to
identify standard 42mm, 0.4mm precision micro-pitch components with a 45mm camera.
algorithms are also supported. Components with complex shapes can be easily mounted.
The best performance at the same level, the production capacity of 20-40% higher than the same level.
New non-stop refueling feeder to improve efficiency, semi-electric operation, stability and high
reliability. Easy operation, programming line changing speed Fast. Offline programming,
Line balancing and other software functions are complete, with Chinese display less wearing parts,
low maintenance costs, low noise, low energy consumption and cost savings.
Samsung SM421 parameters
Mounting Speed: 21,000 CPH / Chip (IPC9850 Reference)
5,500 CPH / QFP (IPC9850 Baseline)
- Placement: ± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP
- Component Range: Max, 0402 (01005) Chip ~ □ 55mm
0603 (0201) Chip ~ □ 55mm (standard)
- PCB:
460 (L) x 400 (W) mm
510 (L) x 460 (W) mm (option)
610 (L) x 510 (W) mm (option)
-IT and batch tracking system
- Feeder: Max. 120 (8mm feeders)
- Feeder: Max. 60 (8mm feeders) SM421S
- Dimensions: 1650 (L) x 1690 (D) x 1485 (H)
