YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval

YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval

    • YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval
    • YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval
  • YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval

    Product Details:

    Place of Origin: China
    Brand Name: YAMAHA YSM20
    Certification: CE
    Model Number: YAMAHA YS100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: VACUUM&Woodenbox
    Delivery Time: 1-2 work days
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 2SETS/day
    Contact Now
    Detailed Product Description
    Product Name: YAMAHA YS100 PICK AND PALCE MACHINE Dimensions: L1,665×W1,562×H1,445mm
    Weight: 1630kg Lead Time: 1-2days
    Application: YAMAHA SMT Certification: CE

    YAMAHA YS100 YSM20 PICK AND PLACE MACHINE Manufacturer, YAMAHA SMT CHIP PLACER



    CNSMT is your reliable yamaha smt pick and place machine supplier in China,our company located in beautiful city of shenzhen which near by shenzhen airport and HongKong airport,we can arrange pick up you when you plan to visit our factory to the airport.



    Currently, YAMAHA YS100 AND YAMAHA YSM20 PICK AND PLACE Machine are the most popular model in the world,as its high speed and stable working condition,many of customers choose these two model YAMAHA SMT PICK AND PLACE Machine.



    YAMAHA YS100 AND YAMAHA YSM20 PICK AND PLACE Machine both use electric feeder,such as :ss8MM FEEDER KHJ-MC110-00A,ZS8MM FEEDER KLJ-MC110-004 ,New and used both availble in our factory.

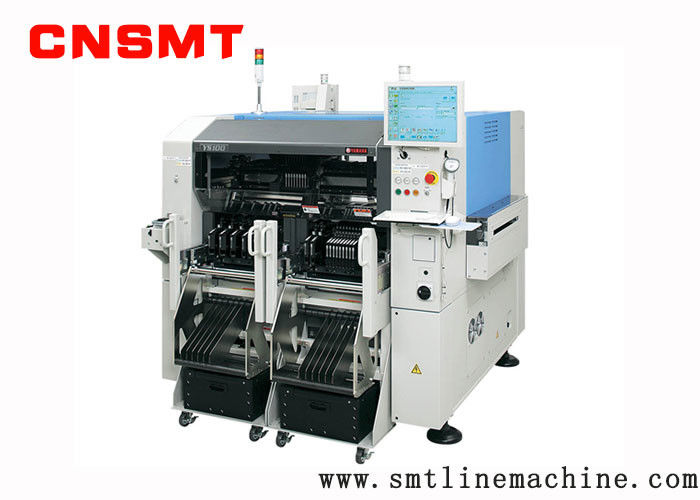

    YAMAHA YS100 SMT PICK AND PLACE MACHINE

    YAMAHA YS100 Target substrate is L50 × W50mm to L510 × W460mm
    YAMAHA YS100 Placement efficiency is (Condition) 25,000CPH (equivalent to 0.14 seconds / CHIP)
    YAMAHA YS100  Placement accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP
    Repeatability (3σ): ± 0.03mm / CHIP, ± 0.03mm / QFP
    YAMAHA YS100  Target components 0402 (mm series name) to 45mm components, SOP / SOJ, QFP, connectors, PLCC, CSP / BGA, long connectors (W45 × L 100mm or less) (Note 3) (Note 4) Component height 15mm Following (Note 5)
    YAMAHA YS100  Component types 126 types (/ converted to 8mm tape) (Note 1)
    87 types (/ converted to 8mm tape, when sATS is installed)



    YAMAHA YS100 SATS (auto tray) is option,if you dont need SATS tray,then price more cheaper than with it, and you can install manual IC tray if YAMAHA YS100 machine not with sATS,

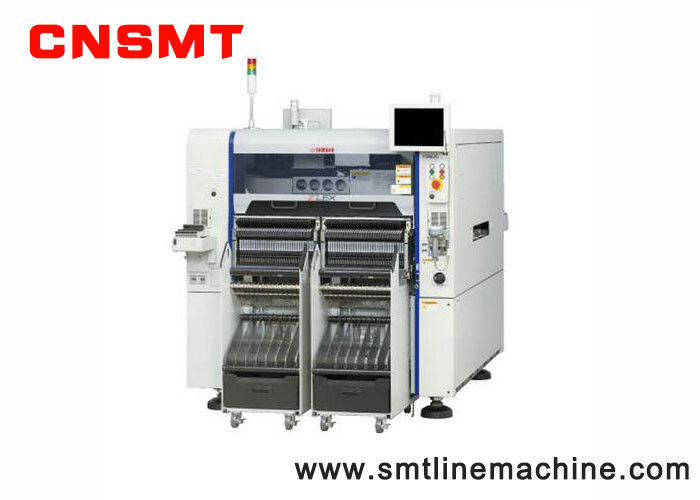

    YAMAHA YSM20 SMT PICK AND PLACE MACHINE specification:
    YAMAHA YSM20 Target substrate size: Two-stage conveyor model (only models with two beams on the X axis)
    YAMAHA YSM20 When transferring one substrate: L810 × W490 to L50 × W50
    YAMAHA YSM20 When transferring two substrates: L380 × W490 to L50 × W50
    YAMAHA YSM20 Monorail model: L810 × W490 ~ L50 × W50
    YAMAHA YSM20 Two-track model: L810 × W230 ~ L50 × W50
    YAMAHA YSM20 Placement capability: High-speed universal (HM) placement head × 2
    90,000CPH (under our best conditions)
    YAMAHA YSM20 Mounting accuracy: ± 0.035mm (± 0.025mm) Cpk ≧ 1.0 (3σ)
    YAMAHA YSM20 Mounting head, mountable components: High-speed universal (HM) mounting head: 03015 ~ 45 × 45mm L100mm, height below 15mm
    ※ Depending on the height and size of the component, an optional multi-vision camera may be required (optional configuration)
    Shaped (FM) placement head: 03015 ~ 55 × 55mm L100mm, height below 28mm
    YAMAHA YSM20 Number of feeders that can be installed: Fixed feeder racks: * More than 140 (equivalent to 8mm tape)
    YAMAHA YSM20 One-time refueling car: * More than 128 (converted by 8mm tape)
    YAMAHA YSM20 Pallet changer: 30 sheets (fixed type) 10 sheets (feeder type)
    YAMAHA YSM20 Power specifications: three-phase AC 200/208/220/240/380/400 / 416V ± 10% 50 / 60Hz
    YAMAHA YSM20 Air supply: above 0.45MPa, quiet and dry
    YAMAHA YSM20 Dimensions: L 1,374 × W 1,857 × H1,445mm (excluding projections)
    YAMAHA YSM20 Weight about 2,100kg



    YAMAHA YSM20 SMT PICK AND PLACE MACHINE is a high-end placement machine nowadays, CNSMT supply both used and new yamaha ysm20 and ys100 pick and place machine ,we have professional yamaha smt engineer for our aftersales service



    So please dont worry about aftersale, we have over 10years experience in the yamaha smt field,we export plenty of yamaha smt pick and place machines every year to all over the world,



    Noarmally ,we packing yamaha smt pick and place machine with vacuum and hard woodenbox before shipping,ensure that machine is all well reach to your place

    YAMAHA YS100 YSM20 SMT Pick And Place Machine , SMT Chip Placer CE Approval
    Business Scope:
    1. Buy and sells SMT pick and place machines (YAMAHA JUKI FUJI, SAMSUNG, PANASONIC, , SIEMENS, ASSEMBLON, Mirae, SONY, ...
    2.SMT Full-auto printer & semi-auto printer
    3.SMT reflow oven & wave solder machine
    4.SMT loader and unloader
    5.SMT conveyor
    6.AOI, SPI
    7.SMT peripheral equipment.
    8.Insert machine
    9.Machine spare parts such as feeders nozzles
    10.Full line solution service
