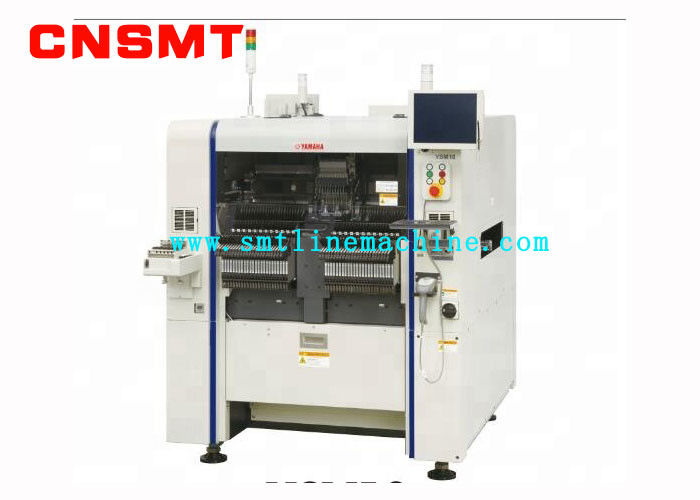

YAMAHA ysm10 Automatic SMT Pick and Place Machine YS24 120 feeder slots SMT full line solution supplier cheap price
YAMAHA ysm10 Automatic SMT Pick and Place Machine YS24 120 feeder slots SMT full line solution supplier cheap price
Specification
YSM10
Target substrate size
L510 x W460 mm ~ L50 x W50 mm
※With optional accessories, it can correspond to L610mm substrate
Mounting ability
HM head (10 nozzles) specifications
HM5 head (5 nozzles) specifications
46,000 CPH (under the company's conditions)
31,000 CPH (under the company's conditions)
Mountable component
03015 ~ W55 x L100mm (over W45mm for segmentation recognition), height less than 15mm
※ If the component height exceeds 6.5mm, or the component size exceeds 12mm x 12mm, you need to select multi-vision camera (optional configuration)
Mounting accuracy
Company conditions (when using standard components for evaluation)
±0.035mm (±0.025mm) Cpk≧1.0 (3σ)
Number of feeders that can be installed
Fixed feeder frame: *** more than 96 (converted by 8mm strip)
Tray: 15 kinds (when equipped with sATS15, JEDEC)
Power Specifications
Three-phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
Supply air supply
0.45MPa or more, clean and dry
Dimensions
L1, 254 x W1, 440 x H1, 445mm
Body weight
About 1,270kg
