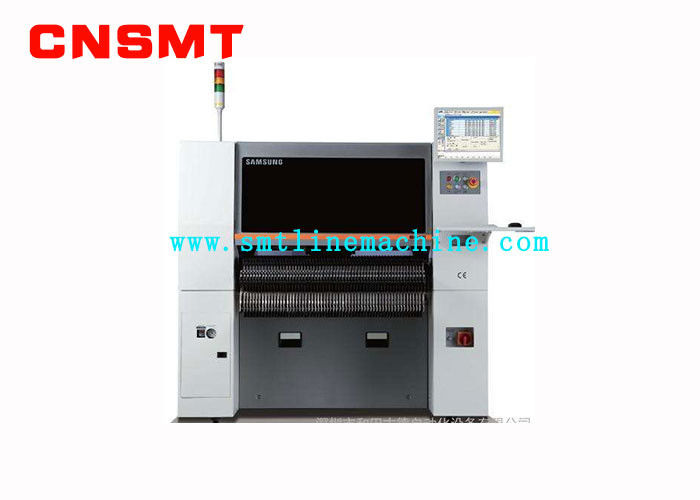

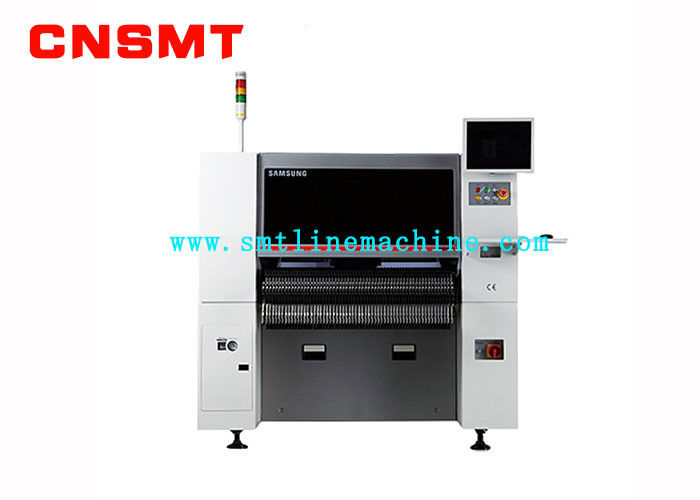

CNSMT Automatic SMT Pick and Place Machine SM471,SMT pcb assembly line Machine hanwa korea machine
CNSMT Automatic SMT Pick and Place Machine SM471,SMT pcb assembly line Machine hanwa korea machine
Specification
1. 78,000 CPH(Optimum)
2. 2 Gantry x 10 Spindles/Head
3. Applicable Parts : 0402 ~ 14mm(H12mm)
4. Electrically Driven High Speed and High Precision Feeder
- Allows mixed use with an SM pneumatically driven feeder
SMART Feeder
- The world's first feeder equipped with Auto Splicing and Auto Loading functions
| Model | SM471PLUS | SM481PLUS | SM482PLUS |
| Numbers of Spindles | 10 Spindles × 2 Gantry | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78000CPH(Optimum) | 40000CPH(Optimum) | 30000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
