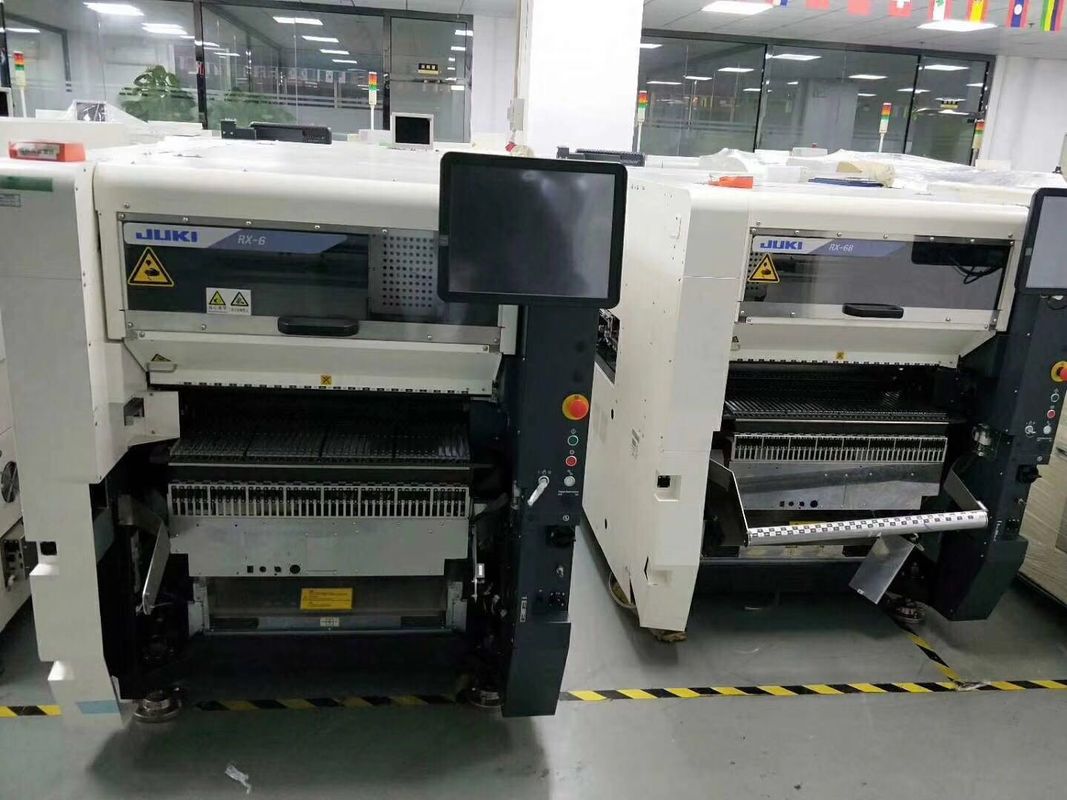

CNSMT SELL SMT JUKI RX-6 RX-6B RX-7 NEW PIck and place machine 6×6 nozzle headS
CNSMT SELL SMT JUKI RX-6 RX-6B RX-7 NEW PIck and place machine 6×6 nozzle headS
| Chip component: 42,000 CPH (best condition)*1 |
| IC component: 14,000 CPH*1*4 |
| Component size : 0402 (1005) chip ~ 50mm square component * 2 |
| 0402 (Inch 01005) chip ~ 50mm square component / 50 × 180mm * 3 |
| Substrate size: |
| Single track transmission: 50 × 50 ~ 610 × 590 / 905 × 590mm (2 transmissions) |
| Double track transmission: 50×50～360×250mm |
| Patch head specifications |
| 6 nozzle heads |
| 3 nozzle heads |
| Can correspond to dual track production |
| Space-saving design with a width of 1.25m |
| Standard equipped with suction/sMD monitor check function |
| Achieve higher quality *2*4 |
| By replacing the placement head, it is possible to construct an optimal production line that adapts to changes in production variety. |
| High-speed patching with no pause image recognition |
| Corresponding to ultra-high components, large components, large substrates |
| The new matrix tray server TR8S increases the component's ability and productivity. |
| *1 6×6 nozzle tip |
| *2 6 nozzle head |
| *3 3 nozzle head |
| *4 RX-6B: Option |
 |
High speed module placement machine | |||||
| 6×6 nozzle head | 6×3 nozzle heads | |||||
| Specification / model name | RX-6 | RX-6B | RX-6 | RX-6B | ||
| Substrate size | Single track transmission | 50×50 ～ 610×590 / 905×590mm(2 transfers) | ||||
| Double track transmission | 50×50 ～ 360×250㎜*1 | |||||
| Component height | 6mm specification | 6/12/20/25/33mm | ||||
| Component size | Laser recognition | 0402 (inch 01005) chip ~ 50mm square component | 0402(inch 01005)chip | |||
| ~ 33.5mm square component (3 nozzle tip) | ||||||
| 0402(inch 01005)chip | ||||||
| ~ 50mm square component (6 nozzle tip) | ||||||
| Image Identification | Standard camera*2 | 3mm ～ 33.5mm Square element | 3mm ～ 100mmSquare element 50×180mm | |||
| High resolution camera | 1.0×0.5mm ～ 20mmSquare element | 1.0 × 0.5 ~ 48mm square components, or 24 × 72mm | ||||
| (all options) | ||||||
| Component placement speed | Best condition*3 | 42,000CPH | 34,000CPH | |||
| (chip component) | IC*4 | 14,000CPH | 11,000CPH | |||
| Component placement accuracy | Laser recognition | ±0.04mm(Cpk≧1) | ||||
| Image recognition*2 | ±0.04mm | ±0.03mm | ||||
| Component mounting type | Up to 160 species | |||||
| (Converted to 8mm belt (when using electric double-track belt feeder)) | ||||||
| High speed module placement machine | ||||||
| 6×6 nozzle head | 6×3 nozzle heads | |||||
| Specification / model name | RX-6 | RX-6B | RX-6 | RX-6B | ||
| Image recognition component position compensation device (VCS) | Standard equipment | Option | Standard equipment | Option | ||
| Pickup/SMD Monitor Check | Standard equipment | Option | Standard equipment | Option | ||
| Automatic tape cutting device | Standard equipment | Option | Standard equipment | Option | ||
| Nozzle | Standard equipment | Option | Standard equipment | Option | ||
| Easy control nozzle | Standard equipment | Option | Standard equipment | Option | ||
| Virus countermeasure software whitelist antivirus software | Standard equipment | Standard equipment | Standard equipment | Standard equipment | ||
| ※1 Monorail mode Max 360X450mm |
||||||
| *2 RX-6B: Option. | ||||||
| *3 Monorail transport specifications | ||||||
| *4 The component mounting speed of the IC component is a rough value when 36 points are placed on the M-size substrate. When the square QFP component has an external dimension of 10 mm or less, the components are placed in front and rear, and all the nozzles are simultaneously sucked. | ||||||
