4feet Pcb Led Smt Machine , Yamaha YS12F Pick And Place Machine With Tray ITS TRAY AND MULTI CAMERA
4feet Pcb Led Smt Machine , Yamaha YS12F Pick And Place Machine With Tray ITS TRAY AND MULTI CAMERA
description

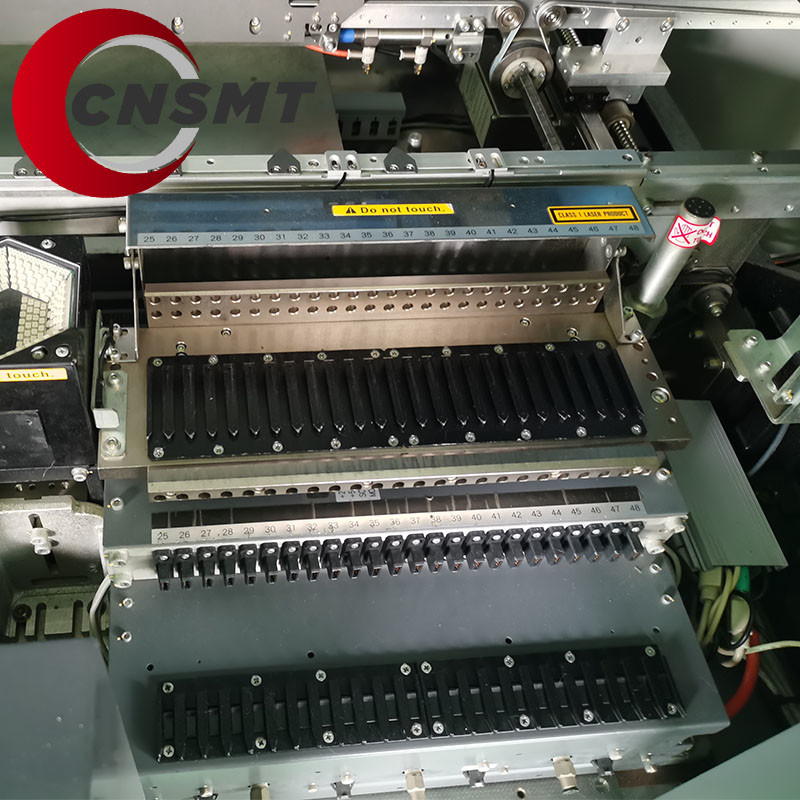

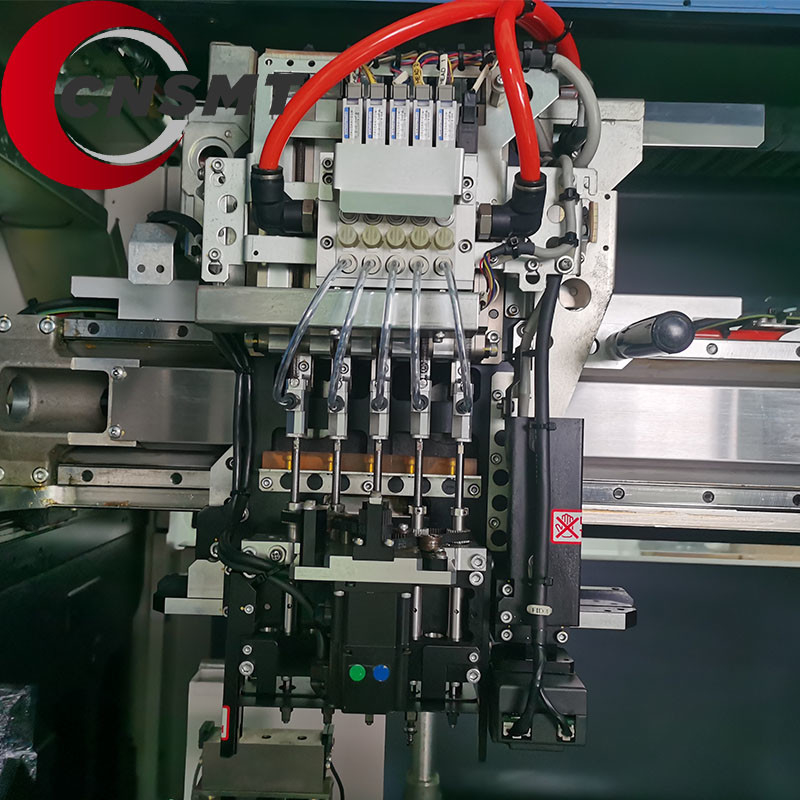

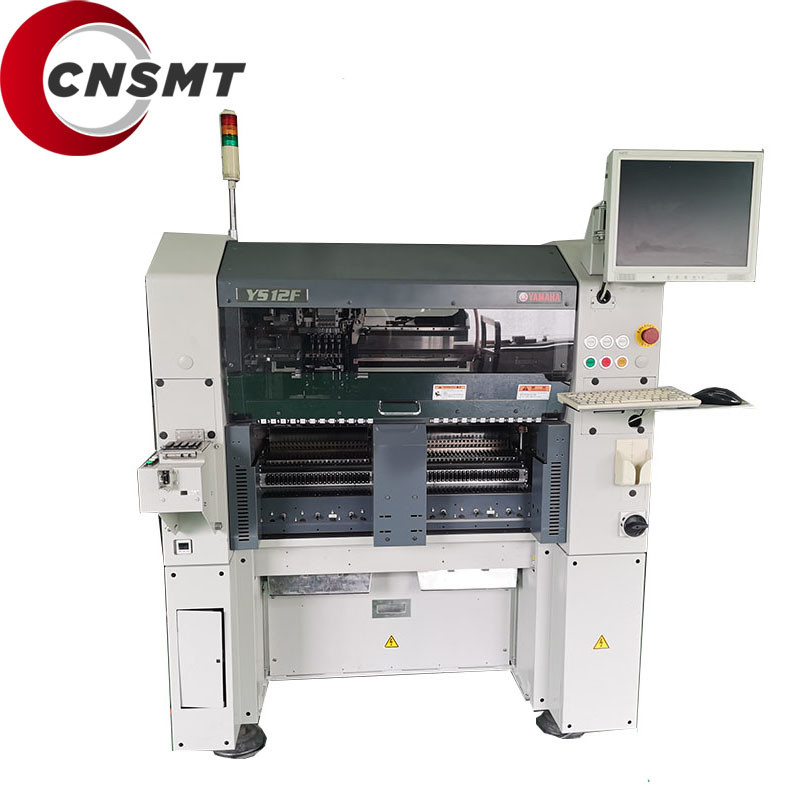

| Detailed introduction of YS12F placement machine: |
| Small high speed modular placement machine |
| Model YS12F (Model: KJJ-100) |
| Target substrate: 50mm*50mm--420mm*460mm(std) |
| Mounting accuracy Absolute accuracy: +/-50um/chip, +/-50um/QFP |
| Repeatability: +/-30um/chip, +/-30um/QFP |
| Mounting ability (optimal condition) 20kCPH (0.18 seconds) |
| Component supply form Tape reel, tray (when equipped with MT) |
| Object component 0402 (Metric name) --- 45X100mm Height 15mm or less, can support ball electrode components |
| Number of components: Tape reel: 47 types (maximum, 8mm reel) |
| Tray: 15 types (maximum, JEDEC tray, with sATS15) |
| Power Specifications Three Phase AC200/208/220/240/380/400/416V +/-10% 50/60 HZ |
| Supply air source 0.45Mpa or more, clean and dry |
| Dimensions (except for protrusions) L1, 254xW1, 440xH1, 445mm (host only) |
| When equipped with sATS15 L1, 254xW1, 755xH1, 445mm (L1, 254xW1, 440xH1, 445mm (when equipped with ATS15) |
| Weight about 1,250kg (host) |
| Approximately 1,370kg (when equipped with sATS15) |
90990-11J003 SCREW, PAN HEAD W/W 12
2 91312-04045 BOLT HEX,SOCKET HEAD 24
3 K44-M643E-00 PARTS, 3-2 2
4 KG2-M643A-00 PARTS, 3-1 2
5 KH1-M539M-41 PROTECTOR ACCES.1P 6
6 KH1-M6515-01 CIRCUIT PROTECTOR, 2P 1
7 KH1-M6516-01 CIRCUIT PROTECTOR, 1P 1
8 KH4-M6514-01 CIRCUIT PROTECTOR,3P 1
9 KH4-M6515-31 CIRCUIT PROTECTOR,2P 1
10 KHN-M6175-10 FAN MOTOR 6
11 KHN-M643A-00 TERMINAL,POWER 4
12 KHN-M643A-10 TERMINAL, POWER 6
13 KHN-M643E-00 END PLATE 2
14 KHN-M643E-10 END PLATE 6
15 KHN-M6513-11 CIRCUIT PROTECTOR,1P 4
16 KHN-M6513-21 CIRCUIT PROTECTOR,1P 2
17 KHN-M6561-00 POWER SUPPLY 1 1
18 KKE-M6513-00 CIRCUIT PROTECTOR,1P 1
19 KKE-M6561-10 POWER SUPPLY 1 1
20 KKX-M6513-00 CIRCUIT PROTECTOR,1P 2
21 KLF-M4187-20 FAN GUARD 120MM 6
22 KLF-M537F-00 SAFETY RELAY 1
23 KLF-M537G-00 CONTACTOR,1 2
24 KLF-M537G-50 CONTACTOR,1 2
25 KLF-M6511-10 MAIN BREAKER,1 1
26 KLF-M6561-00 POWER SUPPLY 1 1
27 KLA-M4506-00 HEAD I/O UNIT ASSY 1
28 KLA-M459X-01 BATT UNIT ASSY 4
29 KLA-M5802-48 HEAD SERVO UNIT ASSY 2
30 98902-03006 SCREW BINDING HEAD
KLF-M5119-01 TOUCH LCD ASSY 2
2 KKE-M4899-00 LIGHT 1 ASSY 1 405MM RYG
3 KKE-M4899-10 LIGHT 1 ASSY 1 455MM RYG
4 KKE-M4899-20 LIGHT 1 ASSY 1 555MM RYG
5 KKE-M4899-30 LIGHT 1 ASSY 1 655MM RYG
6 KKE-M4899-40 LIGHT 1 ASSY 1 755MM RYG
7 KKE-M4899-50 LIGHT 1 ASSY 1 855MM RYG
8 KKE-M4899-60 LIGHT 1 ASSY 1 405MM WBG
9 KKE-M4899-70 LIGHT 1 ASSY 1 455MM WBG
10 KKE-M4899-80 LIGHT 1 ASSY 1 555MM WBG
11 KKE-M4899-90 LIGHT 1 ASSY 1 655MM WBG
12 KKE-M4899-A0 LIGHT 1 ASSY 1 755MM WBG
13 KKE-M4899-B0 LIGHT 1 ASSY 1 855MM WBG
14 KLW-M669V-00 HNS,SWITCH ACTIVE 1 ACTIVE
15 KLW-M669V-10 HNS,SWITCH ACTIVE 1 READY
16 KLW-M669V-20 HNS,SWITCH ACTIVE 1 START
17 KLW-M669V-30 HNS,SWITCH ACTIVE 1 STOP
18 KLW-M669V-40 HNS,SWITCH ACTIVE 1 ERROR CLEAR
19 KLW-M669V-50 HNS,SWITCH ACTIVE 1 RESET
20 KLW-M669V-60 HNS,SWITCH ACTIVE 1 STOP (CE)
21 KLW-M669V-70 HNS,SWITCH ACTIVE 1 ERROR CLEAR (CE)
22 KLW-M669V-80 HNS,SWITCH ACTIVE 1 ACTIVE_Chinese
23 KLW-M669V-90 HNS,SWITCH ACTIVE 1 READY_Chinese
24 KLW-M669V-A0 HNS,SWITCH ACTIVE 1 START_Chinese
25 KLW-M669V-B0 HNS,SWITCH ACTIVE 1 STOP_Chinese
26 KLW-M669V-C0 HNS,SWITCH ACTIVE 1 ERROR CLEAR_Chinese
27 KLW-M669V-D0 HNS,SWITCH ACTIVE 1 RESET_Chinese
28 KLW-M669V-E0 HNS,SWITCH ACTIVE 1 STOP_Chinese (CE)
29 KLW-M669V-F0 HNS,SWITCH ACTIVE 1 ERROR CLEAR _Chinese (CE)
30 KGS-M4897-01 LIGHT,ERROR 2 S.T.D
31 KHG-M4896-01 LIGHT,ERROR 2 CE
32 LC1-M13H2-00 SWITCH,EMG ASSY 1
33 KGK-M5381-00 EMG PLATE 1
34 KKE-M6554-A0 MAIN SWITCH ASSY 1
35 KKX-M8596-A0 PRESSURE GAUGE 2
36 KLF-M4267-10 USB MEMORY 1 8GB
37 KLF-M4580-00 I/O CONV.BOARD ASSY 1
38 KLF-M3992-00 SWITCH,SELECT 2
39 KLF-M138J-01 BALL CHAIN 1
40 KLF-M138K-00 RING 1
41 KLF-M516A-00 TOUCH PEN
