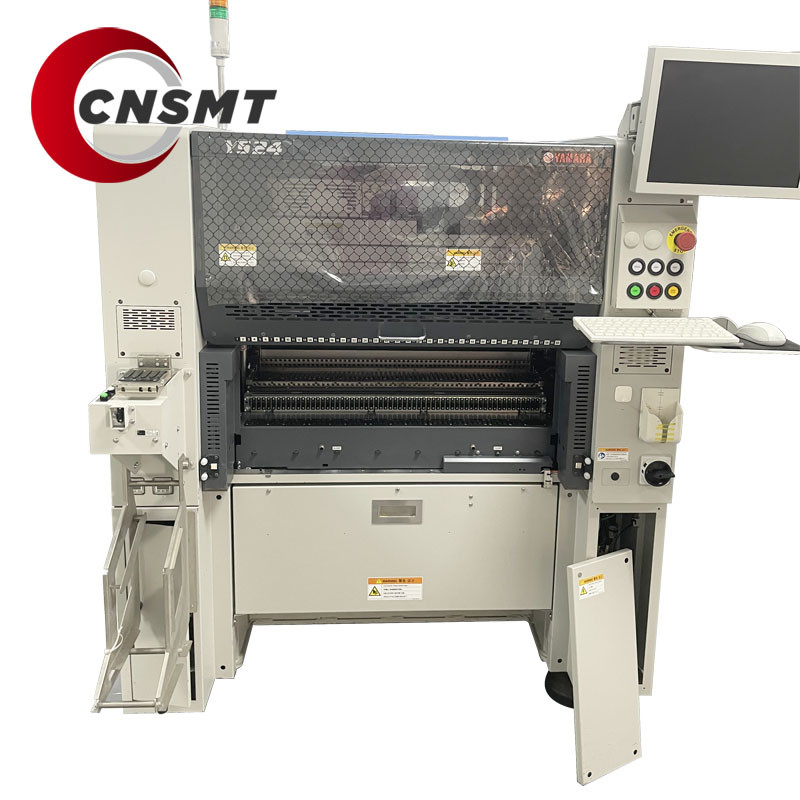

CNSMT Yamah YS24 Pick And Place Machine 0.05 sec./CHIP Optimum conditions YS24 Surface equipment
Specification:
| Applicable PCB | L50xW50mm – L700xW460mm |
| Mounting Capability | 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor) |
| Mounting Accuracy | +/-0.05mm (μ + 3σ), +/-0.03mm (3σ) |
| Applicable Components | 0402 to 32x32mm MAX (Height 6.5mm or less) |
| Component Types | 120 types (Max./8mm wide tape reel conversion) |
| Power Supply | Three phase AC 200/208/220/240/380/400/416 V +/-10% |
| Air Supply Source | 0.45MPa |
| External Dimensions | L1,254x W1,687x H1,445mm (Excluding protrusions) |
| Weight | Approx. 1,700kg |
| Specifications and appearance are subject to change without prior notice. | |
We also supply the below products:
| KKE-M1118-00 PLATE 18 1 | KKE-M1180-00 LEVELING BOLT ASSY 4 OK MG40111-2010/6/8 |
| 2 $NK-3N NYLON CLIP 12 | KGA-M1180-00 LEVELING BOLT ASSY 4 |
| 3 97602-05310 SCREW, PAN HEAD W/W 19 | 2 |
| 4 90990-11J003 SCREW, PAN HEAD W/W 14 | KHY-M1111-00 PLATE 11 1 OK MG60152-2010/7/9 |
| 5 KKE-M1122-00 PLATE 22 1 | KKE-M1111-00 PLATE 11 1 |
| 6 KKE-M1115-00 PLATE 15 1 | 3 KHY-M8504-00 REGULATOR 2 |
| 7 $NK-4N NYLON CLIP 6 | 4 $SL12-03 JOINT 2 |
| 8 KKE-M1128-00 PLATE, CONV. 1 | 5 $SLY10-03 JOINT 2 |
| 9 KKE-M1338-00 BRKT. MAIN SWITCH 1 | 6 $TL4-02 JOINT 2 |
| 10 | 7 |
| KKE-M1336-00 BRKT. REAR LEFT 1 (DS) | 90990-12J004 SCREW BIN. HEAD W/W 3 OK MG60152-2010/7/9 |
| KKT-M1336-00 BRKT. REAR LEFT 1 (SL, DL) | 90990-12J004 SCREW BIN. HEAD W/W 5 |
| 11 | 8 KG7-M8501-00 AIR FILTER 1 |
| KKE-M1337-00 BRKT. REAR RIGHT 1 (DS) | 9 KV8-M8502-00 MIST FILTER (MF400-A) 1 |
| KKT-M1337-00 BRKT. REAR RIGHT 1 (SL, DL) | 10 KV8-M8503-00 MODULE ADAPTER (8-4D) 1 |
| 12 KKE-M111M-00 PLATE, CLAMP 1 | 11 |
| 13 KGS-M1371-00 BRACKET, FIX 8 | KKE-M1125-01 PLATE 25 1 NG MG60153-2010/8/16 |
| 14 KKE-M1163-00 BRACKET 2, FAN 1 | KKE-M1125-00 PLATE 25 1 |
| 15 | 12 90990-42J006 JOINT 1 |
| KHY-M1162-01 BRACKET,FAN 1 OK MFX0104-2009/11/26 | 13 90990-42J008 JOINT 1 |
| KKE-M1162-00 DUCT 1 | 14 $SL12-03 JOINT 3 |
| 16 KKE-M11H5-00 PLATE 1 | 15 |
| 17 | KHY-M8501-00 EXHAUST VALVE 1 NG MG60153-2010/8/16 |
| KKE-M11H6-01 PLATE, FAN 1 1 FAN type NG MFX0027-2009/12/8 | KH5-M8501-00 EXHAUST VALVE 1 |
| KKE-M11H6-00 PLATE, FAN 1 2 FAN type | 16 $KM-22 MUFFLER 1 |
| 18 KKE-M1151-01 PLATE, SIDE 1 1 | 17 KHM-M1397-00 BRACKET, FDD 3 1 |
| 19 KKE-M1152-01 PLATE, SIDE 2 1 | 18 90K41-000540 LABEL, ALERT 1 |
| 20 KKE-M11F1-00 STAY C/R, R 1 | 19 91312-06012 BOLT HEX. SOCKET HEAD 2 |
| 21 KKE-M11F2-00 STAY C/R, L 1 | 20 92902-06200 WASHER PLAIN 2 |
| 22 KKE-M11F4-00 FILTER 2 | 21 91312-05010 BOLT HEX. SOCKET HEAD 2 |
| 23 KKE-M11F3-00 PLATE 2 | 22 91312-04008 BOLT HEX. SOCKET HEAD 4 |
| 24 KKE-M11F5-00 TAPE 2 | 23 98902-04006 SCREW BINDING HEAD 4 |
| 25 KKE-M11H1-00 PLATE, FAN 1 | 24 KM7-M8584-00 MANIFOLD 1 |
| 26 KKE-M11H3-00 DUCT, FAN 1 | 25 $UY8 JOINT 1 |
| 27 KKE-M11H4-00 DUCT, FAN 2 1 | 26 $TL8-01 JOINT 1 |
| 28 KKE-M1131-00 COVER, PU AXIS 1 | 27 $KM-11 MUFFLER 4 |
| 29 KKE-M1132-00 COVER, PU AXIS 2 | 28 91317-03025 BOLT HEX. SOCKET HEAD 2 |
| 30 92012-05010 BOLT, BUTTON HEAD 6 | 29 KKE-M8582-00 VALVE 1 |
| 31 90172-00J050 WASHER, EXTL. TOOTHED 6 | 30 $SL8-01 JOINT 2 |
| 32 90990-12J004 SCREW, BIN. HEAD W/W 10 | 31 |
| 33 90990-23J004 GROMMET 2 | KKT-M1123-00 PLATE 23 1 NG MG70048-2010/7/14 |
| 34 91312-04006 BOLT HEX. SOCKET HEAD 8 | KKE-M1123-00 PLATE 23 1 |
| 35 91312-04020 BOLT HEX. SOCKET HEAD 4 | 32 KKE-M111G-00 COVER, TERMINAL 1 |
| 36 91312-05006 BOLT HEX. SOCKET HEAD 1 | 33 |
| 37 91312-05008 BOLT HEX. SOCKET HEAD 7 | 91312-03030 BOLT HEX. SOCKET HEAD 4 DS, SL |
| 38 91312-05010 BOLT HEX. SOCKET HEAD 8 | 91312-03030 BOLT HEX. SOCKET HEAD 8 DL |
| 39 91312-05012 BOLT HEX. SOCKET HEAD 8 | 34 |
| 40 92902-04200 WASHER, PLAIN 4 | 91312-06010 BOLT HEX. SOCKET HEAD 8 DL, SL |
| 41 92902-05200 WASHER, PLAIN 14 | 91312-06010 BOLT HEX. SOCKET HEAD 4 DS |
| 42 97602-04308 SCREW, PAN HEAD W/W 2 | 35 KKE-M1339-00 BRACKET FL 1 |
| 43 98902-05010 SCREW, BINDING HEAD 16 | 36 |
| 44 91312-03006 BOLT HEX. SOCKET HEAD 4 | 90563-03J450 SPACER BOLT 2 DS |
| 45 KKE-M1114-01 PLATE 14 (I/O) 1 | 90563-03J450 SPACER BOLT 4 DL, SL |
| 46 KKE-M1126-00 PLATE 26 1 | 37 |
| 47 KKE-M111L-00 BRKT. 1 POWER SUPPLY 1 | 91312-03006 BOLT HEX. SOCKET HEAD 8 DS |
| 48 KKE-M111K-00 BRKT. 2 POWER SUPPLY 1 | 91312-03006 BOLT HEX. SOCKET HEAD 4 DL, SL |
| 49 KKE-M1151-11 PLATE,SIDE 1 1 UPS | 38 $KM-31 MUFFLER 2 |
| 50 KKE-M1153-10 PLATE,SIDE 3 1 UPS | 39 90172-00J050 WASHER, EXTL. TOOTHED 6 |
| 51 KJJ-M1155-00 BRACKET,UPS 1 UPS | 40 91312-05010 BOLT HEX. SOCKET HEAD 8 |
| 52 KHW-M1157-00 BRACKET 2,UPS 1 UPS | 41 92902-05200 WASHER, PLAIN 14 |
| 53 KHW-M1158-00 PLATE,UPS 1 UPS | 42 KV7-M8583-00 OPTION MANIFOLD ASSY 1 |
| 54 KHW-M1160-00 COVER,HARNESS 1 UPS | 43 KHW-M8582-40 VALVE 1 (Spare) |
| 55 KHW-M1161-00 BRACKET 3,UPS 1 UPS | 44 KHY-M8596-00 PRESSURE GAUGE 2 |
| 56 KV7-M1515-00 PLATE,RUBBER 1 UPS | 45 KHW-M8597-00 BRACKET, GAUGE 2 |
| 57 90990-12J004 SCREW BIN.HEAD W/W 18 UPS | 46 $SL4-M5 JOINT 2 |
| 58 92902-04200 WASHER PLAIN 5 UPS | 47 KG7-M8501-40 FILTER ELEMENT 1 |
| 59 91312-04006 BOLT HEX.SOCKET HEAD 8 UPS | 48 KV8-M8502-40 MIST FILTER ELEMENT 1 |
| 60 KKT-M1116-00 PLATE 16 | 49 KHW-M8582-40 VALVE 1 (Spare) |
| 56 KJJ-M4554-00 TERMINAL BOARD ASSY 2 DL, DS | 50 KHY-M11B0-00 AIR TAG 1 |
| 57 $KM-10 MUFFLER 1 | 51 |
| 58 | KKT-M1124-00 PLATE 24 1 SL, DL |
| 91312-04006 BOLT HEX. SOCKET HEAD 4 DL, DS | KKT-M1124-10 PLATE 24 1 DS |
| 91312-04006 BOLT HEX. SOCKET HEAD 8 DS | 52 KKT-M111H-00 COVER, TERMINAL 1 SL, DL |
| 59 KKE-M1129-00 PLATE 25-1 1 MG60153-2010/8/16 | 53 KKT-M112A-00 PLATE, TERMINAL 1 SL, DL |
| 60 91312-04005 BOLT HEX. SOCKET HEAD 4 | 54 KKT-M1129-00 PLATE,TERMINAL 2 DS |
| 61 KHY-M8850-00 PADLOCK ASSY | 55 KKT-M8582-00 VALVE 1 DL, DS |
