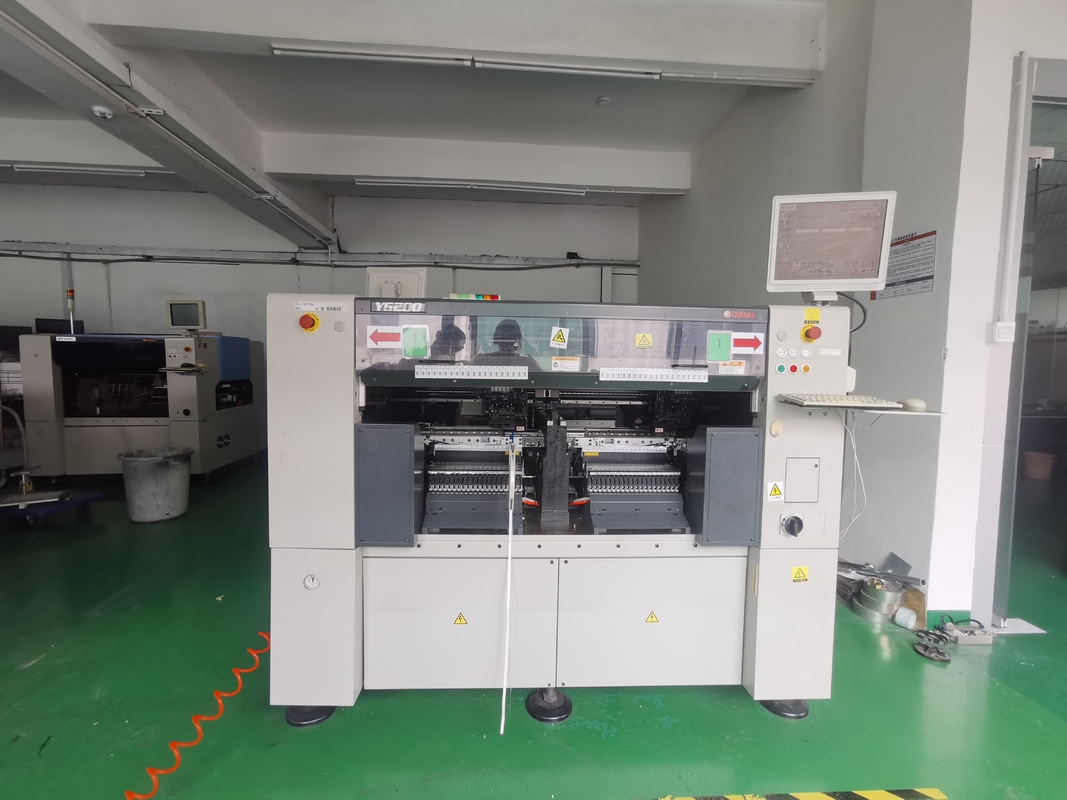

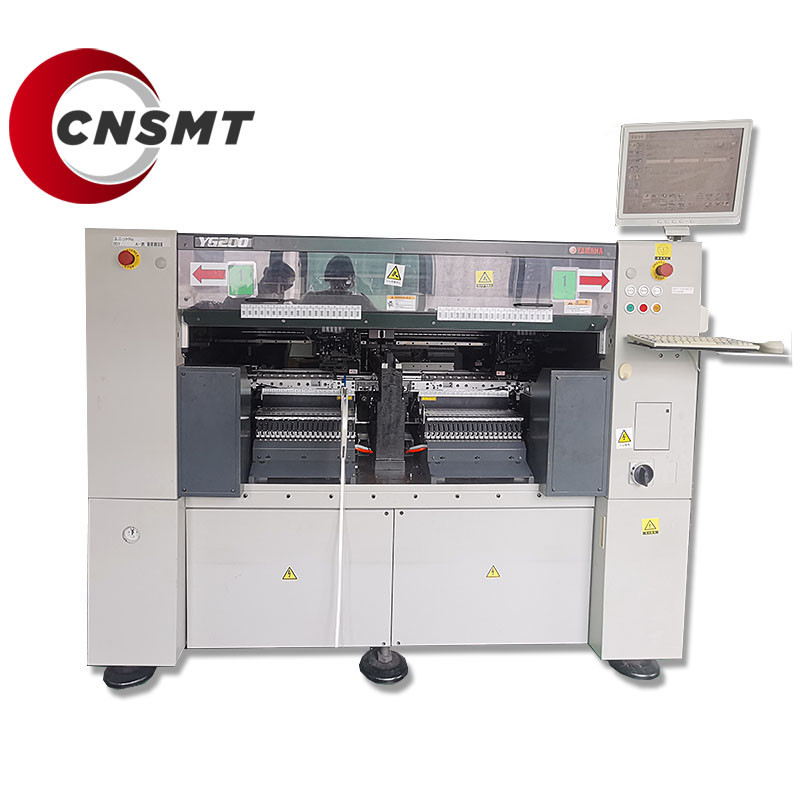

CNSMT YAMAHA YG200L YG200 Pick And Place Machine with 4TABLES total 24heads nozzles for chip component
Specification:
YAMAHA YG200 PICK AND PLACE MACHINE SPECIFICATION
1.Applicable PCB L330×W250mm to L50×W50mm
2.Through-put (Optimum) 45,000 CPH (0.08 sec/CHIP Equivalent)
3.Mounting accuracy (Yamaha's standard components)
Absolute accuracy (μ+3σ): ±0.05mm /CHIP
Repeatability (3σ): ±0.03mm/CHIP
4.Applicable components
0402(Metric base)to 14mm components
5.Height of components which can be mounted : 6.5mm or less
Alowable height on PCB surface before transport 6.5mm or less
6.Number of component types
80types (Max, 8mm tape reel conversion)
7.Power supply
3-Phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
8.Air supply source
0.55MPa or more, in clean, dry states
9.External dimension
L1, 950 × W1, 408 (End of cover) × H1, 450 mm (cover top)
L1, 950 × W1, 608 (End of guide for feeder carriage) × H1, 450 mm (cover top)
10.Weight Approx 2,080kg
Product Description:
We also supply the below products:
| KG7-M9101-00X PLATE 1 2 | KM0-M9190-00X BRKT., CONV. MOTOR ASSY. 1 |
| 2 KU0-M9102-00X PLATE 2 1 | 2 KM0-M9145-00X BRKT., CONVEYOR MOTOR 1 |
| 3 KU0-M9103-00X PLATE 3 1 | 3 KH2-M9105-10X PULLEY MOTOR 2 |
| 4 KH5-M9104-51X PLATE 4 2 | 4 KH2-M9110-10X BELT, PULLEY MOTOR 1 |
| 5 KG7-M9105-00X BRACKET, SPLINE 1 | 5 KH2-M9121-00X BEARING 1 SFB38-10 |
| 6 KG7-M9106-00X PLATE 6 2 | 6 KM0-M91B0-00X AUTO WIDTH ADJ. 1 |
| 7 KG7-M9107-A0X SHAFT GUIDE W 2 NFID-20VLUU, CS20h6 X 460 1998.06 M860009 | 7 KG7-M9111-01X PULLEY 1 2 P30-3M II-9 |
| 8 KG7-M9108-00X BRACKET, COLLAR 1 | 8 KG7-M9112-01X PULLEY 2 1 P30-3M II-9 |
| 9 KG7-M9110-01X COLLAR, W 2 SSWA17-3.0 1998.06 M810019 | 9 KG7-M9113-01X PULLEY 3 1 P30-3M II-9 |
| 10 KU0-M9118-00X PLATE, BRG 2 | 10 KG7-M9114-00X BELT, MOTOR W AXIS 1 73092X9 HD II |
| 11 KG7-M9119-00X BRG, 6200ZZ 2 | 11 KG7-M9115-00X BELT, W AXIS 1 73560X9 HD II |
| 11-1 90933-01J200 BEARING 2 2001.06.29 M160195 | 12 KM0-M9132-00X BALL, SCREW 2 W1404-195VH-LS |
| 12 91317-05020 BOLT HEX. S.H 2 2002.03 M070149 | 13 KM0-M9141-20X BRACKET, MOTOR W 1 |
| 13 KM8-M9121-00X FRAME, CONVEYOR FIXED 1 | 14 KM0-M655E-00X SENSOR, 1-2 1 GXL-8FUIB(ORG.W) |
| 14 KM8-M9122-00X FRAME, CONVEYOR MOVING 1 | 15 90K55-4W032W AC SERVO MOTOR 1 42 60W |
| 15 KG7-M9123-00X GUIDE 1 4 | 16 KG7-M9117-00X DOG, ORIGIN W 1 W=407 |
| 16 KG7-M9124-00X PLATE 1, GUIDE 1 | 17 KG7-M9117-01X DOG, ORIGIN W 1 W=350 |
| 17 KG7-M9125-01X PLATE 2, GUIDE 1 M660021 | 18 KG7-M9117-02X DOG, ORIGIN W 1 W=330 |
| 18 KG7-M9126-00X SET COLLAR 2 W390 | 19 KG7-M9117-03X DOG, ORIGIN W 1 W=250 |
| 19 KG7-M912A-00X BRACKET, SENSOR 2 | 20 KM8-M9117-00X DOG, ORIGIN W 1 W=307 |
| 20 KG7-M9127-00X STOPPER, LOCATE PIN 1 | 21 KG7-M9117-04X DOG, ORIGIN W |
| 21 KG7-M9128-00X DAMPER, W 4 | KM0-M9190-00X BRKT., CONV. MOTOR ASSY. 1 |
| 22 KG7-M9129-00X BELT 1, CONVEYOR 2 HAM-SP L3620 | 2 KM0-M9145-00X BRKT., CONVEYOR MOTOR 1 |
| 22-1 KM0-M9129-00X BELT 1, CONVEYOR 2 2001.10.1 | 3 KH2-M9105-00X PULLEY MOTOR 2 |
| 23 KG2-M9144-01X BRACKET 3, SENSOR 2 | 4 KH2-M9110-00X BELT, PULLEY MOTOR 1 |
| 24 KG7-M9133-00X PLATE, LOCATE PIN 2 | 5 KH2-M9121-00X BEARING 1 SFB38-10 |
| 25 KG7-M9135-00X PLATE, EDGE 2 4 | 6 KG7-M91B0-10X MANUAL WIDTH ADJ. 1 |
| 26 KG7-M9136-00X PLATE, EDGE 3 2 | 7 KG7-M9111-01X PULLEY 1 2 P30-3M II-9 |
| 27 KH2-M9121-00X BEARING 3 SFB38-10C 1997.06 M7600062 | 8 KG7-M9115-00X BELT, W AXIS 1 73560X9 HD II |
| 28 KM7-M91B2-00X BRACKET, SENSOR 1 | 9 KG7-M9137-00X NUT, SCREW 2 TMF16-3 |
| 28-1 KU0-M91B2-01X BRACKET, SENSOR 1 1998.05.20 M850073 | 10 KG7-M9109-00X HANDLE, CONVEYOR 1 PH 80 |
| 29 KH4-M4886-00X MOTOR ASSY 6 1 | 11 KG7-M9132-10X SCREW 1, W 1 TM16 |
| 30 KU0-M655F-10X SENSOR,1-3 1 1999.03 M910030 | 12 KG7-M9132-20X SCREW 2, W 1 TM16 |
| 30-1 KU0-M911D-00X SENSOR,SET POS 1 2002.09.13 M290051 | KM0-M711A-31X FLOATING NOZZLE(for Head1) 1 TYPE 31 |
| 31 KM0-M9182-00X PLATE, GUIDE 1 | 2 KM0-M711A-03X NOZZLE A 1 TYPE 31 |
| 32 KG7-M9183-00X BRACKET, BELT 1 | 3 KM0-M711C-02X NOZZLE C 1 TYPE 32-2 |
| 33 KM0-M9185-00X HOUSING, SHAFT 1 | 4 KM0-M711D-00X NOZZLE D COMP 1 TYPE 33 |
| 34 KG7-M9187-00X PULLEY 2, LOCATE 1 | 5 KM0-M711D-12X NOZZLE D 1 |
| 35 KG7-M9188-00X BELT 1 73474X6-HTD II | 6 KGB-M7742-C0X O-RING P4 1 O-RING P4 Type B |
| 36 KM8-M9189-00X GUIDE 1 RSH9ZMUU+580LM 1998.06 M860027 | 6-1 KG7-M711D-C0X O-RING 1 2001/10/01 |
| 37 KG7-M9190-00X HANDLE 1 HAK-40XR8-N | 7 KM0-M711E-00X NOZZLE COMP 1 Type 34 |
| 38 KU0-M9191-00X SHAFT 1 | 8 KM0-M711E-12X NOZZLE 1 |
| 39 KG7-M9192-00X PLATE, IDLER 1 | 9 KGA-M7752-00X O-RING P9 1 B-P9 |
| 40 KM0-M9193-00X LEVER, CLAMP 1 LEM-4X16-BK | 9-1 KG7-M711E-00X O-RING 1 2001/10/01 |
| 41 KU0-M655F-20X SENSOR,1-3 2 1999.03 M910030 | 10 KM0-M71AB-A0X NOZZLE AB 1 Type 35 |
| 41-1 KMO-M911E-00X SENSOR OUT 1 2002.09.13 M290051 | 11 KM0-M71MN-A0X CIRCLE NOZZLE 3A |
| 42 KV1-M9140-A0X PULLEY CONV. ASSY 12 2002.03 M070149 | KM8-M9601-01X HOLDER, ATC 1 |
| 43 KM0-M9103-00X SPLINE 1 1 | 2 KM8-M9602-00X PLATE, CLAMP 1 |
| 44 KG2-M9104-00X PULLEY 1,CONV. MOTOR1 1 | 3 KM1-M9603-01X PLATE, JOINT CYL.. 1 |
| 45 KG2-M9105-00X PULLEY 1, SPLINE 1 | 4 KM1-M9604-01X JOINT, CYL.. 1 |
| 46 KG2-M9108-00X COLLAR, CONVEYOR 1 | 5 KM1-M9605-02X CYLINDER, CLAMP 1 |
| 47 KG2-M9113-00X GUIDE, EDGE 1 2 | 6 KM1-M9606-01X GUIDE, PLATE CLAMP 2 |
| 47-1 KG2-M9113-01X GUIDE, EDGE 1 2 2000.07.17 M070114 | 7 KM1-M9607-01X PLATE, HOLDER 1 |
| 48 KG2-M9114-00X GUIDE, EDGE 2 2 | 8 KM1-M9608-01X PLATE, GUIDE 1 |
| 48-1 KG2-M9114-01X GUIDE, EDGE 2 2 2000.07.17 M070114 | 9 KM1-M9609-01X PLATE, BASE 1 |
| 49 KG2-M9141-00X SHOULDER BOLT 1 | 10 KM1-M9610-00X GUIDE 2 |
| 50 99009-15400 CIR, CLIP 1 | 11 KM1-M9611-02X CYLINDER, U/D 1 |
| φ15 | 12 KM1-M9612-00X JOINT, CYL. U/D 1 |
| 51 KU0-M9194-00X WASHER 1 | 13 KM1-M9613-01X PLATE, GUIDE STOP 2 |
| 52 KV7-M9140-A0X PULLEY CONV. ASSY 2 2000.07 M070149 | 14 KM1-M9614-01X BASE, ATC 1 |
| 53 KM0-M911A-00X SENSOR ENT 1 2002.09.13 M290051 | 15 KM1-M9615-00X ROD, ADJUST 1 |
| 54 92907-05600 WASHER PLAIN 1 | 16 KH5-M655A-A0X SENSOR, 1-1 10 |
| 55 95307-05600 NUT HEXAGON | 17 93604-06083 PIN, DOWEL 4 4 X 6 |
| 18 93604-14014 PIN, DOWEL 4 4 X 14 | |
| 19 KG7-M9608-00X NEEDLE PIN 4 1.5 X 13.8 | |
| 20 KM0-M9608-00X NEEDLE PIN 20 | |
| 21 95307-05700 NUT, HEX 4 | |
| 22 K40-M7133-00X DAMPER 2 | |
| 23 KH5-M655A-03X SWITCH OPTICAL ASSY 1 SPARE | |
| 24 KH5-M655A-02X FIBER |
