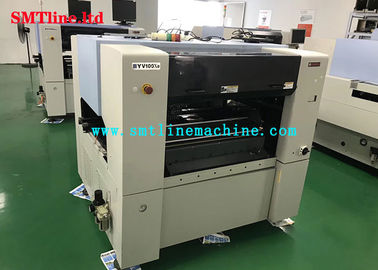

220V / 110V SMT YAMAH YV100XG YV100XE Pick And Place Machine support 1200mm pcb 4feets size led pcb
Specification:
| YAMAH YV100XG placement machine related parameters |
| I. Yamah medium speed placement machine manufacturing site (Japan) |
| II. YV100XG factory year 2000-2006; YV100XGP general year: 2005-2007 (now discontinued; market only used equipment for sale) |
| 3. This model belongs to the medium-speed multi-functional placement machine, which can be attached to the 2031.0402.0603.0805.1206.3528 and other larger chip components and IC.QFP.SOT.SOP.SOJ.PLCC.BGA. Components. |
| 4. The theoretical speed of this model is 0.18S per point, and the theoretical hour is 20000 points. The actual running speed is around 12000-13000 points per hour. |
| V. The maximum splicable PCB: max457x407mm. Minimum attachable PCB: min50x50mm |
| 6. At present, according to different customer needs, it can be changed into a 1.2-meter-long LED board. |
| 7. The thickness of the substrate can be attached to the PCB of 0.4mm-3.0mm |
| 8. The transfer direction of the substrate is generally from right to left, and the direction of the plate can be changed as needed. |
| Nine. There are generally 90 types of components, which are 8mm feeders. |
| X. In addition to the feeder can be attached, plated; tubular; can be attached in bulk (flexible performance) |
| XI. Refers to the 8mm feeder. |
| X. In addition to the feeder can be attached, plated; tubular; can be attached in bulk (flexible performance) |
| XI. Dimensions of the machine L1650xW1450x1450mm |
| Twelve. The incoming power can be connected to three-phase AC200V; AC380V; (0.6 square incoming line can be) |
| Thirteen. Weight: 1580KG, |
