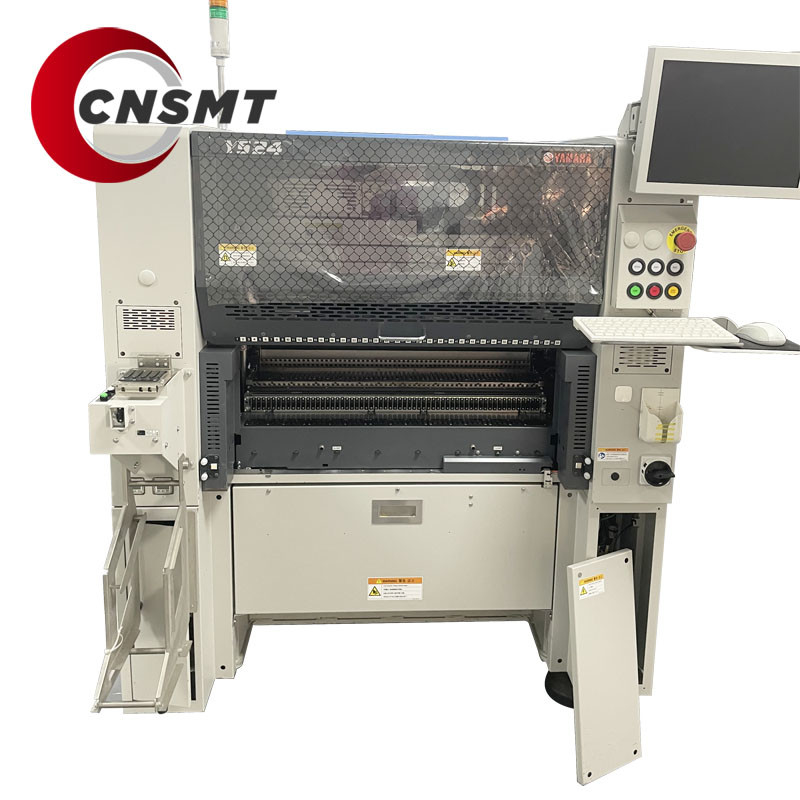

SMT YAMAHA YS24 YS24X HIGH speed pick and place surface mouter 72000cph ELECTRIC FEEDER
description
Yamaha YS24 laminating machine technical parameters
Object base board
L50 * W460mm W50mm ~ L700
SMT capacity
72,000CPH (0.05 seconds /CHIP: the best condition of the company)
SMT precision
Plus or minus 0.05 mm + 3 sigma (mu), plus or minus 0.03 mm (3 sigma)
models
Yamaha laminating machine YS24
The object element
0402 ~ 32mm MAX(height below 6.5mm)
Element types
120 types (maximum/converted to 8mm tape)
The power supply specifications
Three-phase AC 200/208/220/240/380/400/416 V + / - 10%
For air
Above 0.45MPa, clean and dry
Overall dimensions
L1,254 * W1,687 * H1,445mm(except the bulge)
The main body weight
About 1700 kg
Parameter specifications:
PCB cross-plate size: L50xWvalue="50" hasspace="False" negative="False" numbertype="1" TCSC ="0" w:st="on">50mm -- L700xWvalue="460" hasspace="False" negative="False" False" numbertype="1" TCSC =" 60bb4b1
Mounting speed: 72,000CPH (0.05 SEC /CHIP)
Mounting precision: +/-0.05mm
Component range: 0402-32 x 32mm MAX (Height: 6.5mm or less)
Number of feeder: 120 (Max./8mm wide tape reel conversion)
Power supply: Three phase AC 200/208/220/240/380/400/416 V + / - 10%
Pressure requirements: 0.45M**
Equipment size: L1254x W1687x H1445mm
Weight of equipment: 1,700kg
| KHJ-MC10C-00 SEAL,MAIN LABEL 1 |
| 2 KHJ-MC131-00 SPROCKET ASSY. 1 |
| 3 KHJ-MC13A-00 SHIM,SPROCKET 1 |
| 4 KHJ-MC13B-00 BUSH,SPROCKET 1 |
| 5 KHJ-MC13E-00 BOLT,EXTRA LOW HEAD 1 |
| 6 KHJ-MC141-02 TAPE GUIDE ASSY. 1 |
| 7 KHJ-MC144-00 LEVER,TAPE GUIDE R 1 |
| 8 KHJ-MC145-00 LEVER,TAPE GUIDE F 1 |
| 9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 |
| 10 KHJ-MC147-02 SPRING,TAPE GUIDE F 1 |
| 11 KHJ-MC15A-00 SHAFT 112 2 |
| 12 KHJ-MC165-00 MAGNET,TAIL 1 |
| 13 KHJ-MC167-00 COVER,MENBRANE 1 |
| 14 KHJ-MC1A4-00 COVER,ABS 1 |
| 15 KHJ-MC1AA-00 SWITCH,OPERATION 1 |
| 16 KHJ-M4664-00 ABS BOARD ASSY. 1 |
| 17 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1 |
| 18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION |
| 19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2 |
| 20 90115-02J003 BOLT HEX.SOCKET HEA |
Km1-m7165-00x GXL8HU IB sensor YAMAHA original product sensor
Km9-m7158-00x kj2-m7158-00x YV100II, YV112 original head sensor
Km9-m7158-00x km9-m7159-00x kj2-m7158-00x head sensor
Km9-m7158-b0x km9-m7158-c0x sensor YV100II head sensor
Km9-m7165-00xpart nr.: 5322 132 00037 YAMAHA sensor
Km9-m7165-00x YAMAHA sensor km9-m7158-00x YAMAHA limit sensor
Kmo-m655f-10x SENSORYV180xg YV100xtg stop sensor TAKEX dz-7232d
Ku0-m655f-20x ds4r-50pn YAMAHA laminator output plate sensor original sensor
Ku0-m655f-20x kga-m911a-00x YAMAHA YV100XG YV100X plate outlet sensor
Kv0-m655f-20x in and out of the plate sensor YV100II sensor ds4r-50pn original installation brand-new
Kv7-m1372-00x SST835LYAMAHA safety gate sensor Japan bamboo original installation brand-new
Kv7-m654f-00x KV8-M653F-A0X KV8-M653G-A0XOMRON head up and down sensor
Kv7-m654f-00x SENSOR YV100XG head rod passes the SENSOR head up and down SENSOR head
Kv7-m654g-00x SENSOR YAMAHA original upper and lower sensors OMRON e2s-q22b
K88-m653f-e0x k88-m653f-a0x head sensor OMRON E2S Q22
K88-m653h-a0x SENSOR 5 ASSY 1 E2S small flying nozzle SENSOR
K88-m7114-a0x YAMAHA YTF widens the origin sensor YTF deflector
The TAKEX um-tr50tv airfield sensor the airfield station position sensor YV100X airfield sensor
SUNX ex-23d-pn ex-23p collimator YAMAHA laminating machine sensor
OMRON E3X- da41-n OMRON fiber amplifier YAMAHA sensor
The original factory of YAMAHA laminator flight head suction nozzle changeover sensor k88-m653h-004 k88-m653h-aox
YAMAHA original sensor 7383 anti-radiation sensor um-tr-7383vfpn um-tl-7383f
