Product Details:
|
| Product Name: | YAMAHA YS12 Pick And Place Machine | MODEL: | YS12 |
|---|---|---|---|
| Weight:: | 2000KG | Delivery Time:: | IN Stork |
| Packing:: | Vacuume Woodenbox | CONdition: | Working |
| Price: | Negotiation | PAYMENT TERM: | T/T, Paypal, Westernunion Are All Allowed |
| High Light: | led pick and place machine,smt pick and place equipment |
||

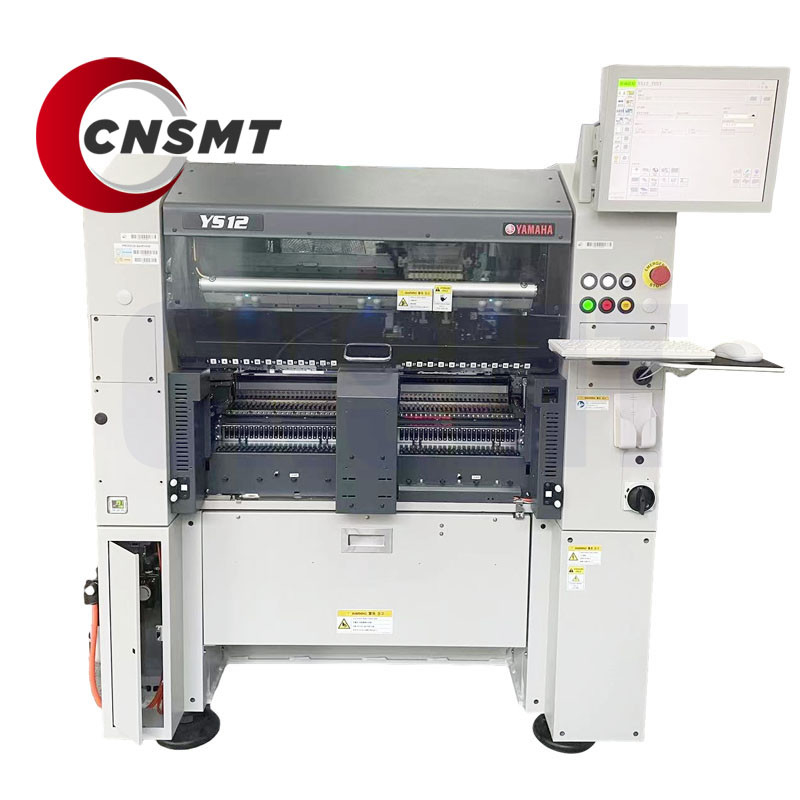

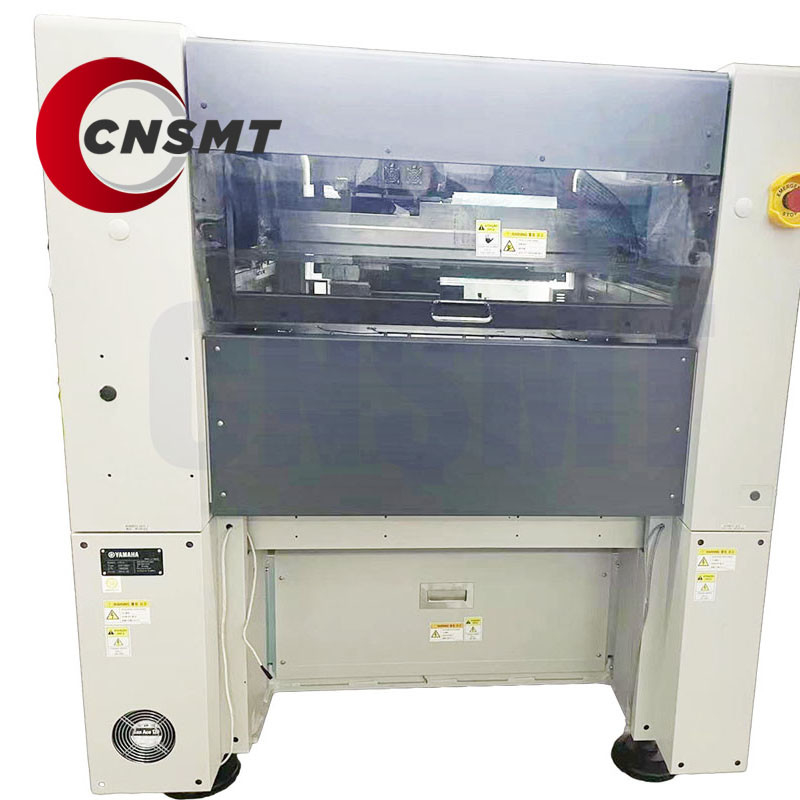

SMT YAMAHA YS12 HIGH speed machine led pick and place surface mouter 36000cph
description
1. Small high-speed module laminating machine YS12 (model: khy-000)
10 binding head
Side vision recognition system
Use a convenient small one - time refueling vehicle
36000CPH (0.10s /CHIP)
0402 ~ 32 x 32 mm components
L size substrate (L510 * W460mm)
Number of component types: material tape disc: 120 (maximum, 8mm tape disk); Pallets: 1 (maximum, JEDEC pallets, with MT)
Dimensions: L1,254 * W1,440 * H1,445mm
Weight: about 1,250kg
Hand pallet (MT)
Built-in tape cutting machine
The CE marking
Support LED package
1. Object substrate: L50 * W50mm ~ L510 * W460mm
2. Mounting efficiency: 36,000CPH (0.1 second /CHIP equivalent)
3. Mounting precision (standard components of the company)
4. (it is a kind of person who lives in a stable environment.
5. (3 corners) : 0.03mm/CHIP
6. Object component: 0402(name of mm system)
7. Component types: 120 (converted to 8mm tape)
8, power supply specifications: three-phase AC 200/208/220/240/220/240/416 V + 10% for 50/60 Hz

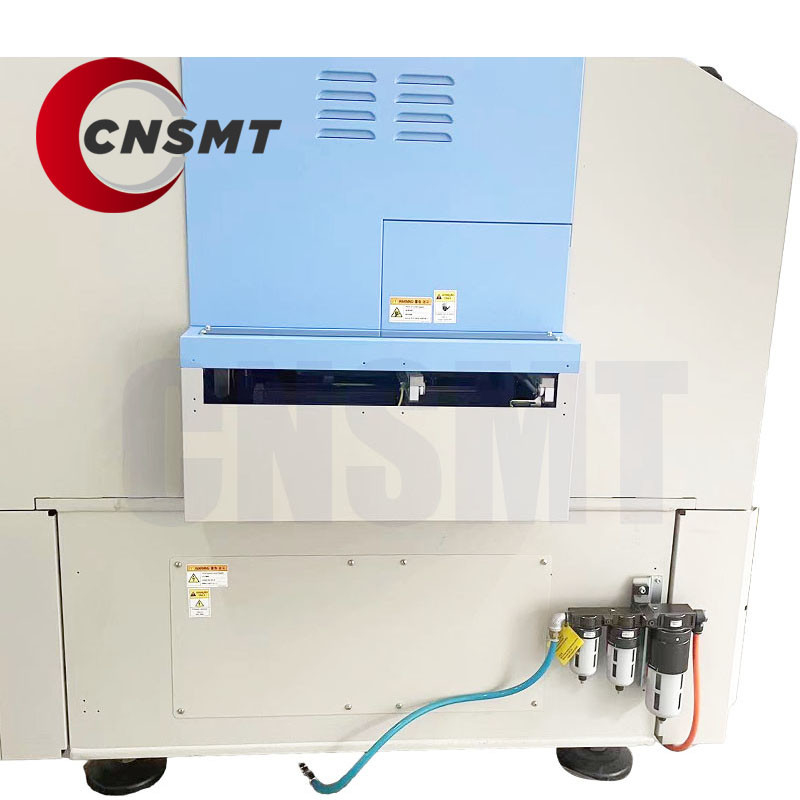

9. Air supply: over 0.45mpa, clean and dry
10. External dimensions (note 2) :
L1, 254 * W1,440 * H1,450mm(above cover)
L1, 464(extended conveyor end) * W1,542(whole batch of replacement platform rail end) * H1,450mm(above cover plate)
11. Main weight: about 1,340kg
| KHJ-MC101-01 BODY,FEEDER 1 |
| 1-1 KHJ-MC101-02 BODY,FEEDER 1 (2008/4/25) NG |
| 1-2 KHJ-MC101-03 BODY,FEEDER 1 (2008/6/25) NG |
| 2 KHJ-MC110-00 MOTOR,FEED 1 |
| 3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1 |
| 4 KHJ-MC10C-00 SEAL,MAIN LABEL 1 |
| 5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8 |
| 6 KHJ-MC134-00 GEAR,IDLE F1 1 |
| 7 KHJ-MC135-00 GEAR,IDLE F2 1 |
| 8 KHJ-MC136-01 GEAR,IDLE F3 1 |
| 9 KHJ-MC137-00 GEAR,IDLE F4 1 |
| 10 KHJ-MC138-00 GEAR,DRIVEN 1 |
| 11 KHJ-MC139-00 SHAFT,IDLE GEAR 1 3 |
| 12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1 |
| 13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3 |
| 14 KHJ-MC13F-00 SCREW,STAD 2 |
| 15 KHJ-MC161-01 BOX,TOP TAPE 1 |
| 15-1 KHJ-MC161-02 BOX,TOP TAPE 1 (2008/5/14) NG |
| 16 KHJ-MC162-01 COVER,TOP TAPE BOX 1 |
| 16-1 KHJ-MC162-02 COVER,TOP TAPE BOX 1 (2008/5/14) NG |
| 16-2 KHJ-MC162-03 COVER,TOP TAPE BOX 1 (2008/7/18) NG |
| 17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1 |
| 17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG |
| 17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1 (2008/11/14) NG |
| 18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6 |
| 19 KHJ-MC16J-00 SCREW,FLAT HEAD 2 |
| 20 KHJ-MC16U-00 TAIL COVER ASSY. 1 |
| 21 KHJ-MC106-00 PLATE,UNDER 1 |
| 22 90166-02JA03 SCREW,PAN HEAD 2 |
| 23 91317-03006 BOLT HEX.SOCKET HEAD 3 |
| 24 91317-03008 BOLT HEX.SOCKET HEAD 2 |
| 24-1 91312-03010 BOLT HEX.SOCKET HEAD 2 (2008/4/11) OK |
| 24-2 Delete (2008/4/25) |
| 25 98707-03006 SCREW,FLAT HEAD 3 |
| 26 KHJ-MC16W-00 PLATE,P/O TOOTH 1 1 (2008/4/11) |
| 26-1 Delete (2008/5/7) |
| 27 90112-2AJ006 BOLT HEX.SOCKET HEAD 2 (2008/4/25) |
| 28 KHJ-MC16U-S0 PARTS, TAIL COVER 1 |
| 29 KHJ-MC162-S0 PARTS, BOX COVER |
