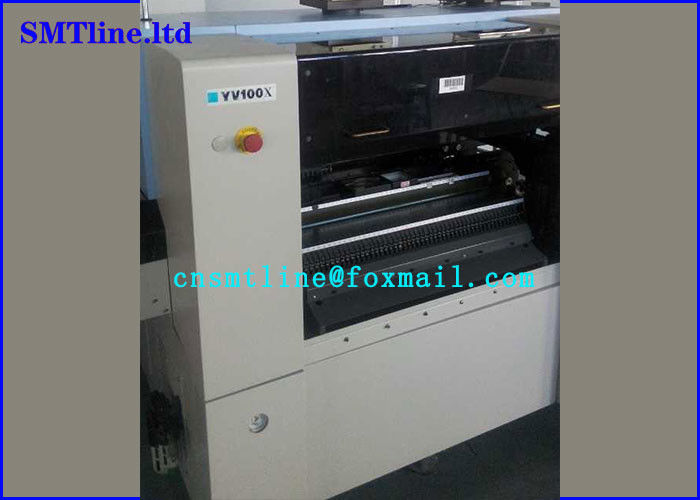

YAMAHA YV100X SMT Pick And Place Machine 18000cph 90 Feeders CE Certification

SMT YAMAHA YV100X PICK AND PLACE MACHINE 18000cph 90feeders From shenzhen CN company

SUPPORT 1.2M LED PCB SYSTERM

description

I. construction of yamaha medium speed patch mechanism (Japan)
2. YV100X year of manufacture 1999-2004; The general year of YV100XE is: 2004-2006 (now it is out of production; Only used equipment is on the market
Three. This model belongs to the medium speed multi-function placement machine, applicable 0402.0603.0805.1206.3528 again big some of the patches of SMT components and IC. QFP. SOT. SOP. SOJ. PLCC. BGA. Connected components of the opposite sex etc.
The theoretical speed of this model is 0.20s per point and 18000 points per hour. The actual operating speed is about 10,000 to 12,000 points per hour.
Agreeable technology
5. Maximum PCBS: max457x407mm. Minimum PCBS: min50x50mm
6. Currently, according to different customer requirements, it can be changed to paste 1.2 meter long LED and other boards.
7. The substrate thickness can be pasted with a PCB of 0.4-3.0mm
8. The transmission direction of the baseboard is generally from right to left, and the incoming direction can be changed as required.
9. Generally, 90 types of components can be placed, indicating 8mm feeder.
10. Except those feeders which can be attached, disc mounted; Tubular; In bulk
Xi. There are 90 types of 1000 - domain network, which refer to 8mm feeder.
10. Except those feeders which can be attached, disc mounted; Tubular; In bulk
11. The external dimension of the machine is L1650xW1450x1450mm
12. Three phase AC200V can be connected to the power supply; AC380V; (just 0.6 square in)
Xiii. &n dongshun technology 0.55MPA
15. Weight: 1580KG

In 1984: YAMAHA IM (intelligent machine) business successfully developed "placement machine," began in JAPAN's domestic sales in 1987: YM4600S, YM6000S, YM6000T in JAPAN "NEPCON JAPAN" exhibition, sale YM1000D: 1988 YAMAHA SMT machine OEM "" in overseas sales began in 1989: "vision of" technology - YM3000V began selling 1990: "The Hyper" series - YM66S YM84S, YM100VP began selling in 1993: "all visual identification methods" devices, the start of the sales in 1994: YV112 YVL80 began selling 1995: YV120 began selling 1995: YV112II began selling 1995: YV100, YVL88, YV86D, YV100D began selling 1997: Equipment - all visual identification way YV100II, YVL88II, YV64, YV112III and YV64D began selling 1997: cumulative produced 5000 sets "Yamaha SMT equipment in 1998:" the cumulative production of 2000 sets of "" SMT equipment in 1999: "module type high speed machine" -- YV100X, YV88X, YV100XT and HSDX began selling 2000: Yamaha IM company purchase famous Japanese placement machine manufacturer - Japan denon company (Tenyru, Japan), and to set up a new company - I Pulse, Japan2000 years: "module type high speed machine" -- YV180X and "precision high-speed printing presses" - - to start selling 2001 YVP: cumulative produced 10000 sets of SMT equipment in 2001: "Module type high speed machine" YV100Xg, YV88Xg, YV100XTg, YV180Xg and HSDXg began sales in 2002: "modular minicomputers" - THREE YT16 "M" and "lead-free precision high-speed printing presses" - YVP - Xg to start selling in 2003: "Hybrid Placer" SEMI and SMT SMT equipment - Cube began sales in 2004: "module type ultra-high speed machine" - YG200 began selling 2004: "Module type ultra-high speed dispensing machine" - YGD to start selling in 2005: "module type high speed machine" - YG100 began selling in 2005: "modular AOI" - YGI began selling in 2005: "module type ultra-high precision multi-function machine" - YG88 began selling in 2007: "module type high-speed placement machine" - YG300 began selling in 2008: "module type high-speed placement machine" - YG12 began selling in 2009: "module type high precision multi-function machine" - YG12F began selling 2009: "Module type high-speed placement machine" - YS24 & YS24X began selling in 2012: "high density module placement machine" - YSM40 new listed in 2013: "high speed dispensing machine" - YSD listed in 2014: "high-performance small printer" - YCP10 and "efficient module placement machine"
