Highlight
YAMAHA Head I/O Board
,KV8-M4570-014 I/O Board
,100X100XNG Head Board
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KV8-M4570-014
-
Model NumberKMG-KV8-M4570-014
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

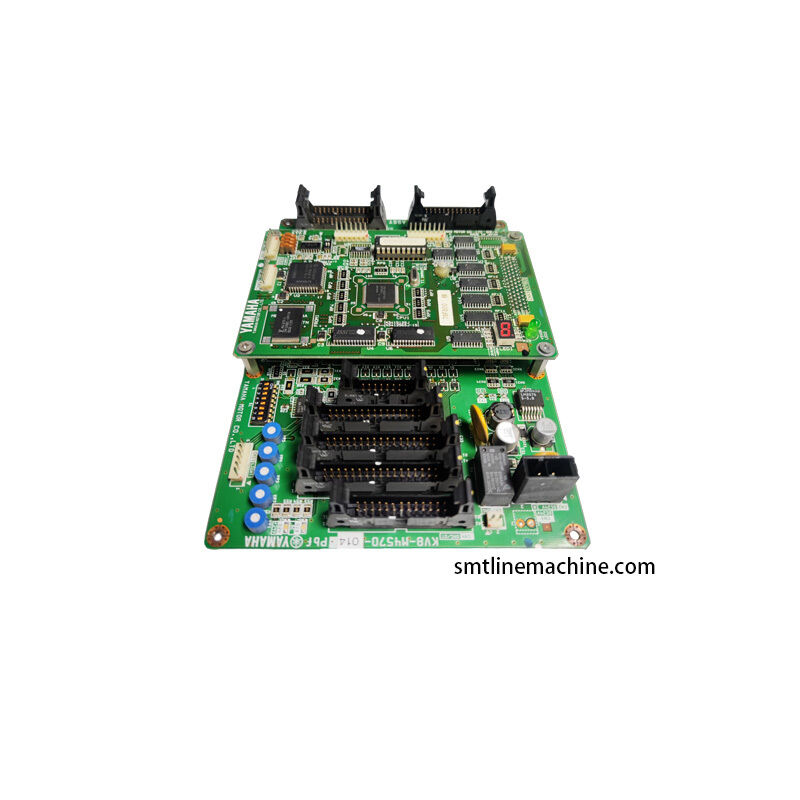

Part No. KV8-M4570-014 100X100XNG Head I/O Board

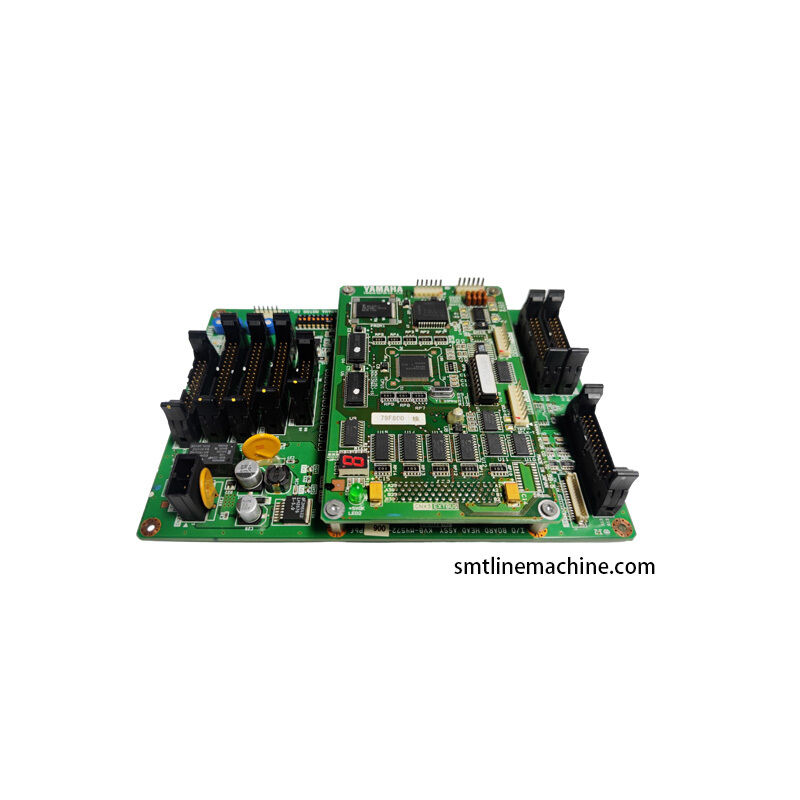

Part No. KV8-M4570-014 100X100XNG Head I/O Board
KV8-M4570-014 IO board is specially designed for YAMAHA 100X100XNG placement head. It transmits signals and controls circuits to connect nozzles, cylinders and sensors, ensuring normal signal output during mounting. Features stable circuit design and full compatibility with original equipment, making it an essential spare part for machine maintenance.
Core Functions
Signal Transfer & Control for Placement Head
KV8-M4570-014 matches YAMAHA 100X100XNG placement head. As the head IO mainboard, it uniformly transmits all electrical signals from sensors, cylinders and nozzle vacuum detection modules.
Coordination of Head Components
It receives commands from the main machine to control nozzle switching, vacuum on/off and cylinder movements, while feeding back detection signals including component presence and nozzle position to ensure smooth mounting operations.
Fault Warning & Signal Feedback
It collects real-time status data of all head parts and sends them back to the machine system. A faulty board leads to unswitchable nozzles, vacuum errors, frequent component dropping and head alarms. It is the core electronic control component of the placement head.
CNSMT specializes in manufacturing KV8-M4570-014 IO boards for YAMAHA 100X100XNG placement heads. As the core electronic control part, it stably transmits sensor and vacuum signals to guarantee smooth mounting processes. Our products match original standards with factory-direct favorable prices and sell well worldwide. We provide complete pre-sales consultation and after-sales maintenance to quickly solve electronic control failures on production lines.
