YAMAHA Motor B table part
,Motor B table spare part
,YAMAHA 90K65-332G74PU part
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KMG-90K65-332G74PU
-
Model NumberKMG-KLW-90K65-332G74PU
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

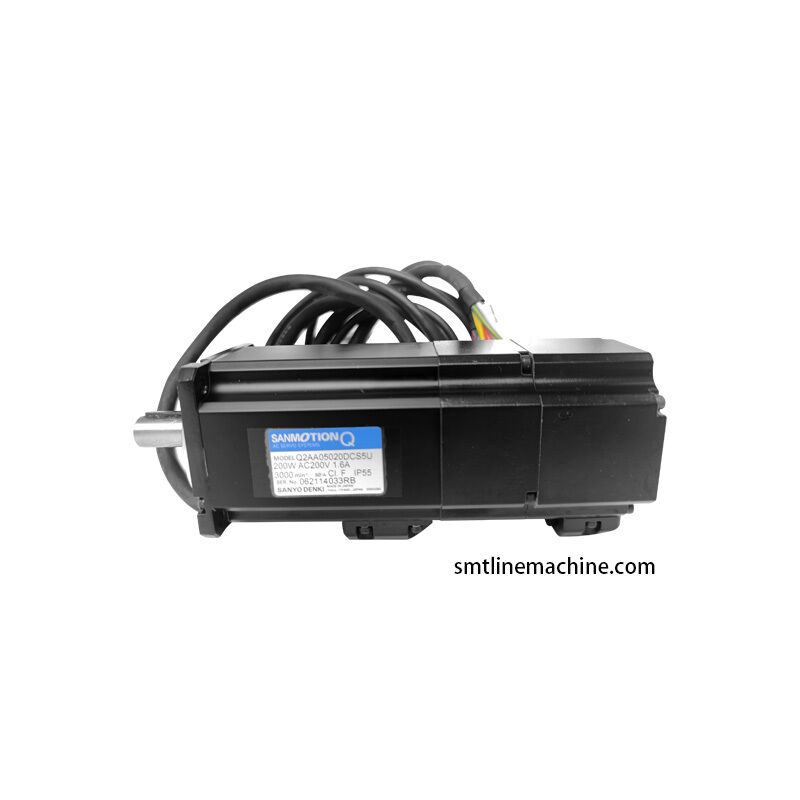

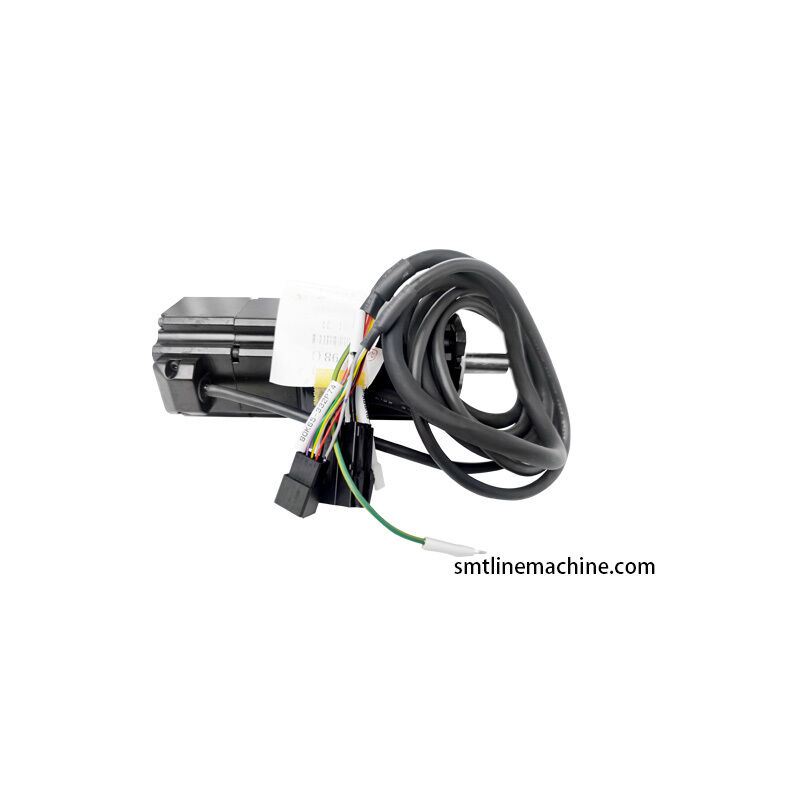

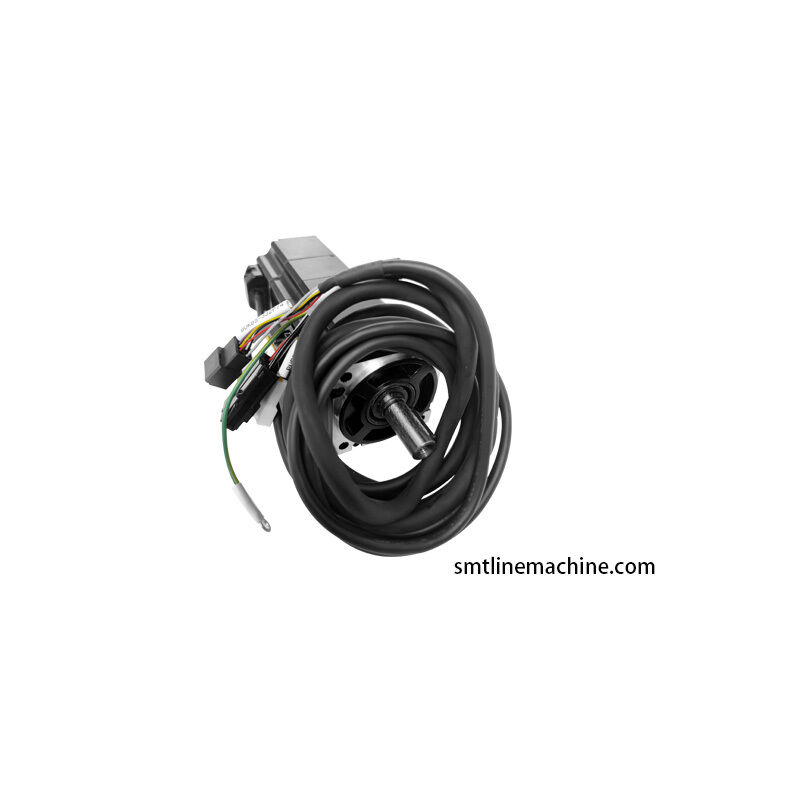

Motor B Table Part No. 90K65-332G74PU
Motor B Table Part No. 90K65-332G74PU
Core Functions
PCB Platform Lifting Drive
Drives the vertical lifting of the B-table under the machine to complete PCB feeding, supporting lifting and positioning. It fits circuit boards tightly to the mounting station and ensures consistent nozzle mounting height.
Precise Closed-Loop Height Control
The built-in encoder feeds back real-time position data, adjusting table height with micron-level precision. Compatible with thin, thick and special-shaped PCBs, it avoids misalignment, component crushing and poor mounting defects.
Stable Bearing for High-Speed Production Lines
Supports frequent lifting and lowering cycles with steady torque to bear full PCB loads. The PU shaft is wear and impact resistant, reducing abrasion on gears and transmission parts for 24-hour non-stop mass production.
Functions
- PCB B-table Lifting Drive Controls vertical movement of B-table to load, lift and position PCBs, keeping uniform mounting height for nozzles
- Micron Closed-loop Height Adjustment Built-in encoder provides real-time position feedback. Fits thin, thick & special-shaped PCBs, preventing offset, component damage and poor soldering
- Heavy-duty Continuous Loading Handles frequent lifting cycles with stable torque for full PCB loads. PU shaft resists wear and impact to protect gears and transmission assemblies
Advantages
- Ultra-precise positioning: Closed-loop servo control minimizes mounting defects and boosts yield rate
- Long service life: Wear-resistant PU shaft cuts replacement frequency of transmission parts & maintenance cost
- Wide compatibility: Works with all standard, thick and irregular circuit boards
- Stable mass production: Supports 24h non-stop high-frequency operation without servo alarms
- Perfect fit: OEM part No.90K65-332G74PU, fully compatible with YAMAHA YS/YSM series pick and place machines
CNSMT specializes in manufacturing 90K65-332G74PU B-table servo motors compatible with YAMAHA YS/YSM pick-and-place machines. Adopting micron closed-loop control and wear-resistant PU shaft, the motor delivers stable performance for all types of PCB production lines. Our reliable spare parts sell well worldwide with factory-direct competitive prices. We provide complete pre-sales consultation and after-sales maintenance service to quickly resolve equipment failures and help electronics manufacturers cut costs and boost productivity.
