YAMAHA YSM10 servo board
,YAMAHA head servo board
,YSM10 servo board spare part
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-KMG-M5802-4C
-
Model NumberKMG-M5802-4C
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

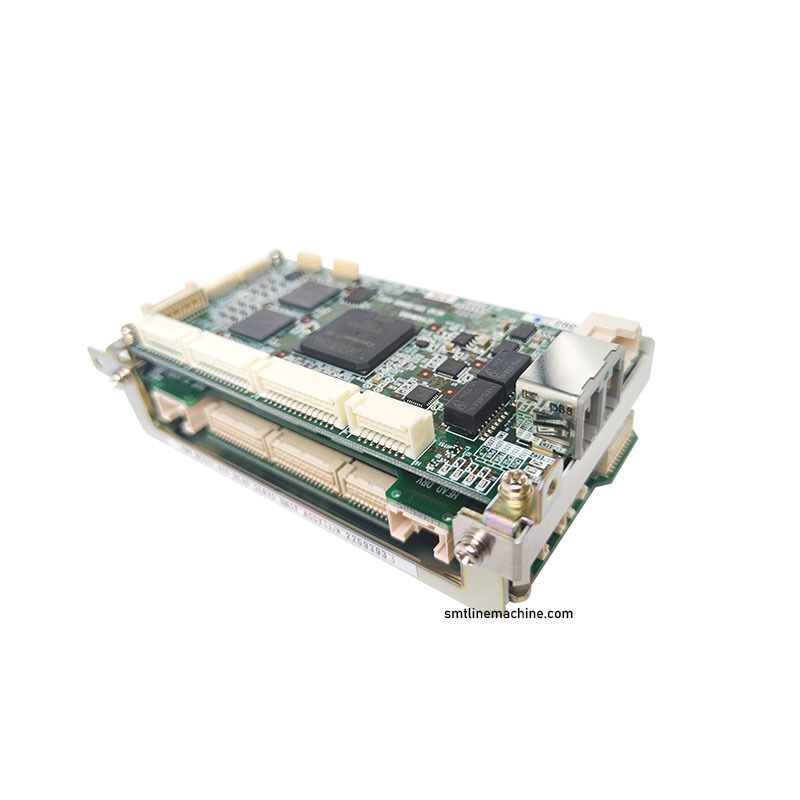

KMG-M5802-4C YAMAHA YSM10 head servo board

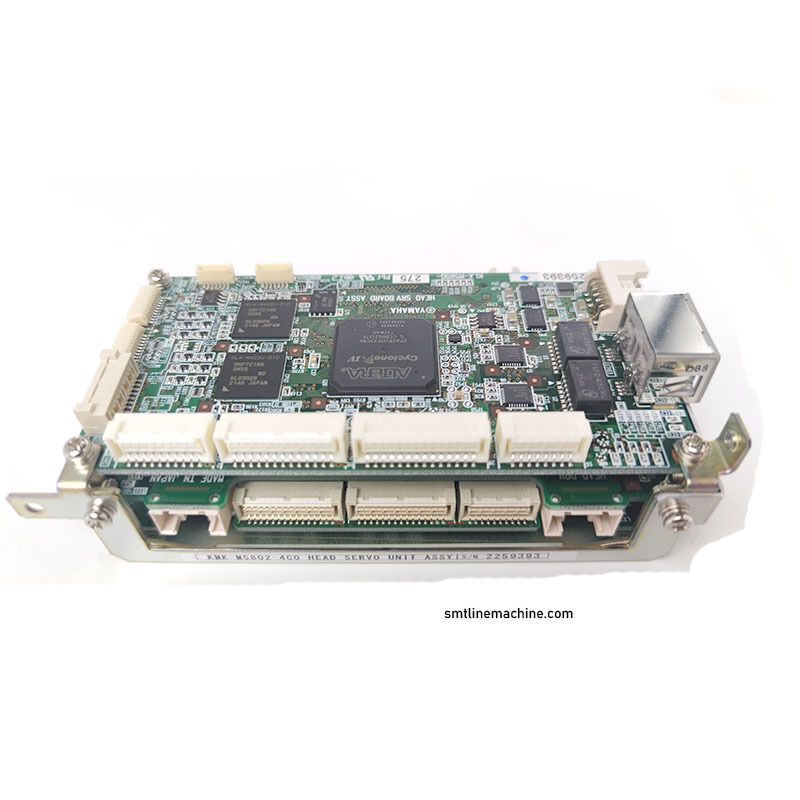

KMG-M5802-4C YAMAHA YSM10 Head Servo Board
Genuine Yamaha YSM10 mounter head core servo control board, designed for high-speed placement machines in the YSM10 and YSM20R series. This essential component integrates servo drive, position closed-loop control, high-speed communication, and I/O signal processing circuits to ensure precise multi-axis movement control for high-speed, high-precision mounting operations.
Equipped with status indicator lights, the board supports self-diagnosis and alarm output functions, guaranteeing long-term stable equipment operation and reliable performance in demanding manufacturing environments.
Yamaha YSM10 Parts Information
Head Servo Board
Part Numbers: KMG-M5802-4A0 / KLA-M5890-071 / KLW-M5802-460
Description: Head Servo Board, Multi-axis motion control PCB for HM5 placement head
HM5 Head Components
| KLW-M7107-A1 | Head Nozzle Shaft |
| KHY-M7105-00 | Nozzle Holder |
| KLF-M7152-00X | Blow Valve |
| KLF-M7153-00X | Operation Valve |
| KLW-M715A-00X | Muffler |
Main Control & Drive Boards
| KMG-M3800-000 | Maintenance Parts Set |
| KMG-M755S-00 | Scan Light Board Assembly |
| KHY-M652G-10X | ANC Control Board |
Mechanical Transmission Parts
| KMG-M2678-00X | Y-axis Cable Duct |
| KMG-M91A3-00X | Conveyor Belt |
| KKE-M9118-00 | Collar Bracket |
Consumable Wear Parts
| KLW-M7155-00X | Filter Cap |
| KG7-M7137-A0 | Leaf Spring |
| 91312-04005 | Hex Socket Bolt |
