| Product Name: Temperature Tester | ||||||

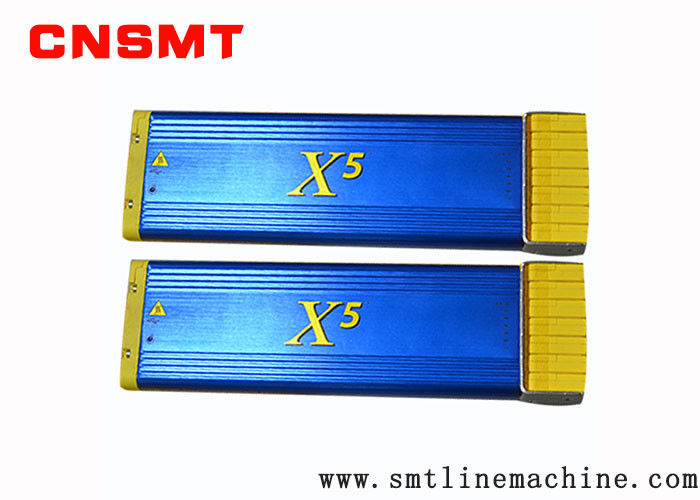

| Model: KIC x5 | ||||||
| Number of channels: 7/9/12 channels | ||||||
| Brand: KIC USA Internal measuring range: 0 °C to 85 °C | ||||||
| Measurement accuracy: ±0.5C Resolution: 0.1°C | ||||||
| Uses: Reflow oven temperature tester Processing customization: Yes | ||||||
| Hardware performance: | ||||||
| 1. Support all WINOOWs software platforms and USB-Key encryption. | ||||||
| 2, the new dual power supply mode: 7 (AAA) battery, USB power supply (Note: plug in the computer USB terminal, you can supply power). | ||||||
| 3, KIC 5th generation technology, listed in 2012. | ||||||
| 4, 24 months hardware warranty period. | ||||||
| Software features: | ||||||
| 1, the new Profiling Software software platform. | ||||||
| 2, standard curve merge function, using automatic comparison technology to avoid the omission of manual comparison. | ||||||
| 3, standard SPC & Cpk, using automated SPC limit map, and Cpk capacity calculation. | ||||||
| 4, standard process curve optimization, automatic preset temperature setting function (Navigator Power-Key) | ||||||
| Process curve optimization mode: (no actual test required) | ||||||
| • The most beautiful process (process center) or manual change of temperature to predict process changes. | ||||||
| • Fastest speed (production speed) or manual speed change to predict process change results. | ||||||
| • Minimum power consumption (minimum power) or manual change in temperature and speed to predict process change results. | ||||||
| X5 main technical parameters: | ||||||
| System accuracy: | ±0.5℃ | |||||
| Resolution: | 0.1℃ | |||||
| Internal operating temperature: | 0C to 85℃ | |||||
| Sampling frequency: | 0.1 to 10 per second | |||||
| data point: | 224,640 | |||||
| PC connection: | USB 2.0 (Std-A/Mini-B) | |||||
| Power requirements: | (3) AAA batteries or USB cable when connected to a computer | |||||
| Wireless Receiver Frequency (RF): | 433.92MHz | |||||
| Thermocouple compatibility: | Type K, Standard | |||||
| 7, 9, 12-channel: | ||||||
| size: | (L x W x H mm) | |||||
| 7-channel: | 206.0 x 60.0 x 17.0 | |||||
| 9-channel: | 206.0 x 75.0 x 17.0 | |||||
| 12-channel: | 206.0 x 98.0 x 17.0 | |||||

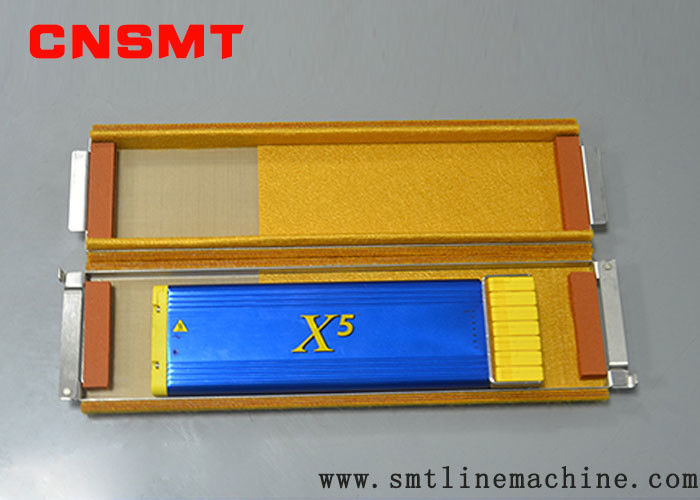

| Insulation sleeve: | ||||||
| Insulation jacket temperature parameter table (maximum heat resistance at specified temperature, expressed in minutes) | ||||||
| SIZE | 150°C | 200°C | 250°C | 300°C | 350°C | |
| Configuration | ||||||
| 302.0×75.0×23.0 | 17.5 | 12 | 9 | 7.7 | 6.5 | |
| Anti-scalding stainless steel insulation sleeve | ||||||
| 7 channels | ||||||
| 312.0×90.0×23.0 | 18.1 | 13.1 | 10.1 | 8.4 | 6.7 | |
| Anti-scalding stainless steel insulation sleeve | ||||||
| 9 channels | ||||||
| Anti-scalding stainless steel spacer | 323.0×113.0×23.0 | 17.7 | 12 | 8.9 | 7.4 | 6.1 |
| 12 channels | ||||||
| Minimum computer configuration: | ||||||
| System minimum requirements | ||||||
| Dual core / 1GHz processor PC, 2G memory | ||||||
| 2G hard disk storage | ||||||
| 1024 × 768 video resolution / 16 bits | ||||||
| 1 available USB port (for data download) | ||||||
| 1 available USB port (for software key) | ||||||
| Microsoft Windows XP, Vista or 7 (32-bit or 64-bit) |
CNSMT KIC X5 furnace temperature tester Reflow oven wave soldering temperature curve tracking and recording
CNSMT KIC X5 furnace temperature tester Reflow oven wave soldering temperature curve tracking and recording
Specification:
