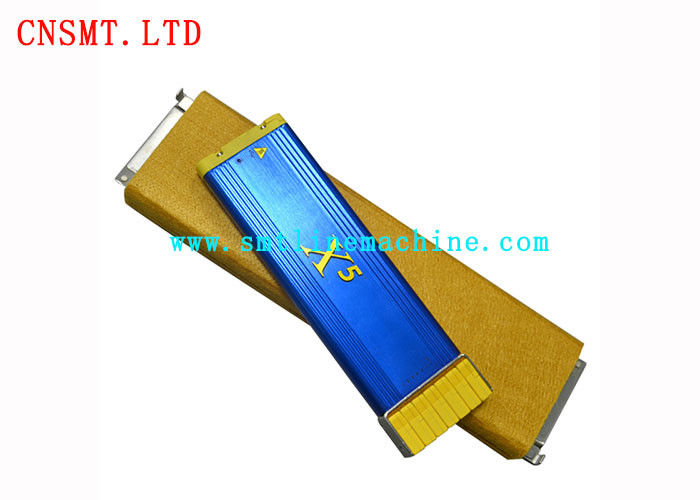

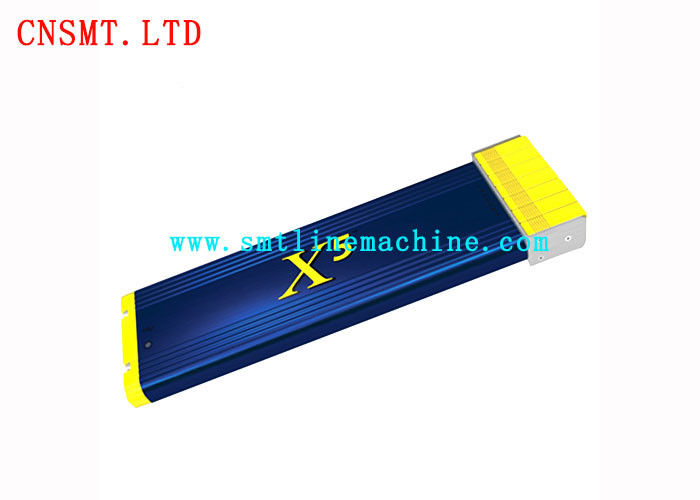

7 9 12 Channel Reflow Oven Temperature Profile KIC-X5 Reflow Soldering Wave Solder Furnace Temp Tracker

7 9 12 Channel Reflow Oven Temperature Profile KIC-X5 Reflow Soldering Wave Solder Furnace Temp Tracker

  • High Light

    heller reflow oven

    ,

    lead free reflow ove

  • Brand
    SMT
  • MODEL
    KIC-X5
  • Weight
    2.3kg
  • Lead Time
    1-2days
  • Packing
    BOX
  • PAYMENT TERM
    T/T, Paypal, Westernunion Are All Allowed
  • Delivery Term
    Exw Fob Cif...
  • SIZE
    L*W*H(206 Mm *70 Mm *17 Mm)
  • Place of Origin
    CHINA
  • Brand Name
    SMT
  • Certification
    CE
  • Model Number
    KIC-X5
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    vacuum woodenbox
  • Delivery Time
    5-7 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100pcs/day

7 9 12 Channel Reflow Oven Temperature Profile KIC-X5 Reflow Soldering Wave Solder Furnace Temp Tracker

KIC K2 reflow soldering wave soldering special furnace temperature tester 7 and 9 channel tracker

KIC K2 reflow soldering wave soldering special furnace temperature tester 7 and 9 channel tracker


Specification:



System accuracy: ±0.5℃
Resolution: 0.1℃
Internal operating temperature: 0C to 85℃
Sampling frequency: 0.1 to 10 per second
data point: 224,640
PC connection: USB 2.0 (Std-A/Mini-B)
Power requirements: (3) AAA batteries or USB cable when connected to a computer
Wireless Receiver Frequency (RF): 433.92MHz
Thermocouple compatibility: Type K, Standard
7, 9, 12-channel:
Size: (L x W x H mm)
7-channel: 206.0 x 60.0 x 17.0
9-channel: 206.0 x 75.0 x 17.0
12-channel: 206.0 x 98.0 x 17.0
Insulation sleeve:

Insulation sleeve temperature parameter table
(Maximum heat resistance at specified temperature, expressed in minutes)

  SIZE(mm) 150°C 200°C 250°C 300°C 350°C
Match
Set
  302.0×75.0×23.0 17.5 12 9 7.7 6.5
Anti-scalding stainless steel insulation sleeve, 7 channels
  312.0×90.0×23.0 18.1 13.1 10.1 8.4 6.7
Anti-scalding stainless steel insulation sleeve, 9 channels
  323.0×113.0×23.0 17.7 12 8.9 7.4 6.1
Anti-scalding stainless steel insulation sleeve, 12 channels

Minimum computer configuration:
System minimum requirements
Dual core / 1GHz processor PC, 2G memory
2G hard disk storage
1024 × 768 video resolution / 16 bits
1 available USB port (for data download)
1 available USB port (for software key)
Microsoft Windows XP, Vista or 7 (32-bit or 64-bit)



KGT-M2611-00X FRAME R, Y AXIS 1
2 KGT-M2612-00X FRAME L, Y AXIS 1
3 KGT-M2613-00X FRAME C, Y AXIS 1
4 KV7-M2671-03X SCREW BALL Y AXIS 2
5 KV7-M2604-00X SUPPORT UNIT 2
6 KG2-M9173-00X LOCK NUT 2
7 KV7-M264A-01X HOLDER SET, Y AXIS 2
7-1 KGT-M264A-00X HOLDER SET, Y AXIS 2 2004.02.20 M420117
8 KV7-M2243-00X HOUSING, BRG. X 2
8-1
Delete
2004.02.20 M420117
9 KV7-M2244-00X COVER, BRG. HOUSING 2
9-1
Delete
2004.02.20 M420117
10 KV7-M2645-00X BRG., ANGULAR 2
10-1 90933-01J000 BEARING 4 2004.02.20 M420117
11 KV7-M2646-00X COIL SPRING 12
11-1
Delete
2004.02.20 M420117
12 KV7-M2647-00X OIL SEAL 4
12-1
Delete
2004.02.20 M420117
13 KV7-M2648-00X SPACER 6
14 KGT-M2652-00X BRACKET, STOPPER 6
15 KGT-M2654-00X PLATE, DUMPER 6
16 KV7-M2651-00X DAMPER, STOPPER 6
17 KV7-M2653-00X PIN, PARALLEL 6
18 KGT-M2666-R0X HOLDER R, NUT Y AXIS 1
19 KGT-M2666-L0X HOLDER L, NUT Y AXIS 1
20 KGT-M2682-00X DOG, ORG 2
21 KGT-M2683-00X DOG, 2ND LIMIT 4
22 KGT-M2691-00X BRACKET, SENSOR 2
23 KGA-M260A-00X SENSOR, ORG (L=300) 2
24 KGA-M260B-00X SENSOR, OT (L=300) 2
25 90K63-611404 AC SERVO MOTOR 2
26 KGT-M2676-S0X Y-AXIS GUIDE SET 2
27 KM5-M2611-00X COUPLING, Y-AXIS: LCD 2
28 KV7-M2661-00X NYLOCK BOLT (M12X50) 26
29 KV7-M2662-01X NYLOCK BOLT (M6X30) 16
30 91314-04010 BOLT HEX. SOCKET HEAD 18
30-1 91314-04010 BOLT HEX. SOCKET HEAD 6 2004.02.20 M420117
31 91317-04014 BOLT HEX. SOCKET HEAD 8
32 91317-04030 BOLT HEX. SOCKET HEAD 12
32-1
Delete
2004.02.20 M420117
33 KV7-M2663-00X NYLOCK BOLT (M5X16) 60
34 91317-05018 BOLT HEX. SOCKET HEAD 8
35 91317-06018 BOLT HEX. SOCKET HEAD 16
36 92907-12600 WASHER PLAIN



7 9 12 Channel Reflow Oven Temperature Profile KIC-X5 Reflow Soldering Wave Solder Furnace Temp Tracker 0
