smt samsung sm411 feeders calibration Jig smt feeder calibrator smd pick and place machine
Quick Detail

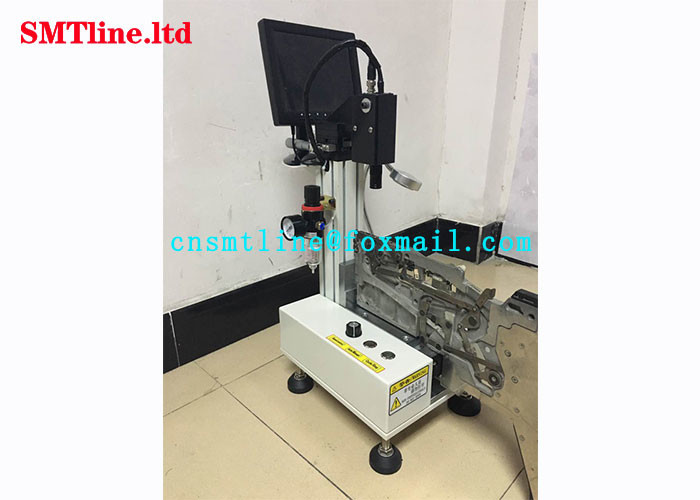

SAMSUNG SM FEEDER Calibrator
1. The structure of the whole machine is simple, easy to operate and optimized. And use high-precision gears to ensure position stability and significantly improve work efficiency.
2, accurate detection. Picking position, height, and lever height can be accurately measured. Can better grasp the quality of the situation.
3. It adopts 12’ color LED display, LED lamp illumination and 50× magnification CCD camera, which makes the structure more compact and beautiful. Effectively reduce eye fatigue and improve job quality.
4, easy to operate, and can simulate the placement machine, automatic continuous observation of the location of the material, you can more clearly grasp the continuous operation of FEEDER quality, thus more effectively control the rate of throwing.
5, choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG and so on.
Features and features:
1. Accurate X-Y-Z axis adjustment;
2. Axis camera that can be adjusted directly;
3, built-in 220V DC power supply;
4, cross scale cursor;
5, automatic and stepping function;
6, super bright LED display;
7, accurate feeder control fixture;
8. Accurate 8*2mm/12*4mm/16*8mm and 24*8mm Feeder Control Belts
Feature
| Product Name: | SMT Stencil Cleaning Wiper Paper Roll |
| Used for: | smt assembly full line |
| Warranty: | 1 Year |
| Shipment | by air or sea |
| Delivery Time: | 1-2Days |
| Our Main Market | Whole of the world |
Packaging details:foam and carton
Delivery time:Within 1~3 working days
Shipment
1. We ship to world wide
2. Most orders ship within 1~7days after payment
3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
4.100%T/T before shipment, after we shipped the goods, we will email you the shipping information
We also supply other smt samsung pick and place machine spare parts
1. Samsung equipment
CP series CP40. CP45.CP45NEO. CP60 CP63
SM series of SM310.SM320, SM321, SM421, SM411, SM431, SM471, SM481, SM482, DECAN
2. Samsung Feeder
CP Series: CP8MM-CP88MM
SMN Series: SMN8MM (SM8 * 2 and SM8 * 4) - SMN88MM
SME series: SME8-SME88 universal machine configuration and IC tray IC cabinet vibration towers
3. nozzle
TN nozzle model TN030 TN040 TN065 TN140 TN220 TN400 TN750 TN1100
CN nozzle type CN020 CN030 CN040 CN040 CN140 CN220 CN400 CN400N CN750 CN1100
Shaped nozzle, special nozzle, can also be customized according to customer needs
4. Solenoid valve
SM head solenoid valve HP14-900037 VAOIPEP34B-1U
SM head solenoid valve HP14-000250 / J6702048A VAOIPEP34B-1U
MAC new SM head solenoid valve HP14-000163 VALVE, SOLENOID-MAC
SM head vacuum solenoid valve VQD1151W-5LO
CP45 head solenoid valve J6719038A SY3140R-5LOU
SM Vacuum Generator Solenoid Valve J6702021A HP14900026 K180-4E1-21-DC24V
SM Vacuum head solenoid valve VAOIPEP34A-1U HP14-000250
HP14-900072 SOLENOID_VALVE_DV3120 J67022067A
5. Maintenance oil
Rail maintenance oil, THK, tri-flow (nozzle maintenance oil), WO-520 (nozzle cleaning agent), white oil, high temperature chain oil
6. Samsung placement machine he used accessories: Samsung CP45 teaching box, Feida cylinder, signal lines and so on. CP45 / CP40 tank chain, CP45MARK3 board, flight camera,Fixed camera, head solenoid valve. Filter, filter cotton, CP45 feeder cylinder. Conveyor belt, vacuum solenoid valve, safety door support rod, reflective lens, fiber optic cable, spiral tube, edge light cylinder, baffle cylinder, Maintenance of special oil (NSK AS2.PS2.EP2), a variety of belts and O-ring, Feeder placed cars, feeder accessories: pressure cover, reel, inner cover, cover, beak, spring, Pin, etc.
Our products are sold all over the world, you can rest assured.
