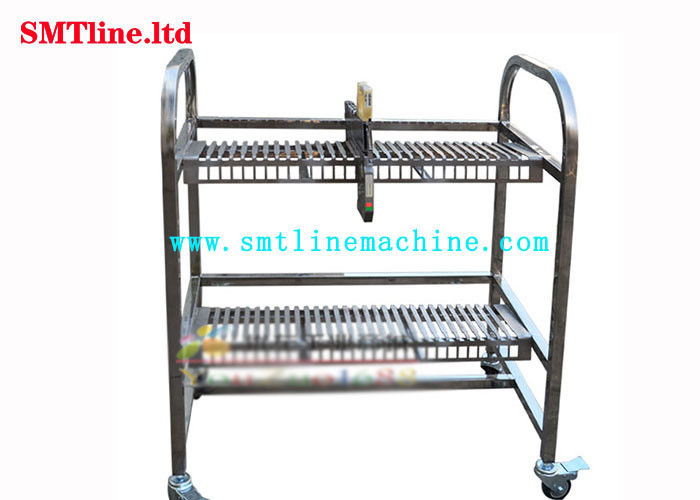

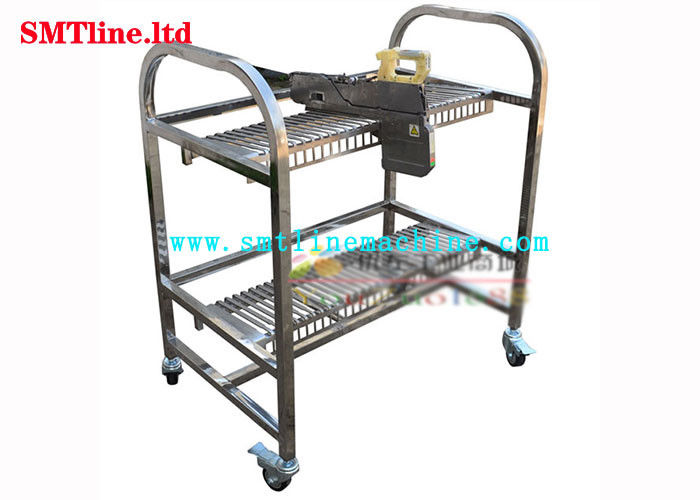

Hitachi electric feeder cart Stainless steel Feeder placed car factory direct sales
Hitachi electric feeder cart Stainless steel Feeder placed car factory direct sales
Specification:
Uses: It is used to place Feida, Feida to prepare materials in advance, and fly-to-turn storage to improve production efficiency. Widely used in the SMT production workshop Feida's turnover and placement, stable placement, free access, free to move, fixed
Material: Made of imported stainless steel, the body is light and sturdy and durable. 4 3-inch universal casters, two with brakes, two movable, easy to move;
Quality: It is welded by advanced mechanical equipment, replacing the traditional manual welding method, the cutting surface is fine, the welding is not welded, neat, no burrs, the frame will never be deformed after filling the Feida, the whole is sturdy, light and strong. ,durable;
Technology: The steel plate is punched and made into the Feida positioning plate. The base positioning groove made of anti-static special hard rubber plate is mounted on the panel. It is exactly the same as the Feida placement principle of the FEEDER platform of the placement machine, achieving perfect four-point positioning. The top is made of large arc to avoid acute angle. The design is divided into upper and lower layers. After being installed, Feida is stable and beautiful. It is equipped with a grounding chain to effectively prevent static electricity.
Feida car features: Feida car is made of imported stainless steel material, the body is firm, lightweight, durable and flexible. The whole Feida placement platform adopts manual welding process, and installs anti-static towline, which can be moved freely with brake device. It can be divided into two layers, each of which can hold 30 feeders, and the whole vehicle can hold 60 feeders. It is widely used in the turnover and placement of FEEDER in the SMT production workshop. It is stable and easy to access, greatly increasing the work efficiency.
Storage: A total of two floors, each floor can hold 30 Feida, the whole car can put 60 Feida.
K87-M4360-00X BACK PLATE ASSY 1 |
2 K87-M236E-00X GUIDE PLATE 1 |
3 K87-M236F-00X GUIDE PLATE 1 |
4 K87-M119P-10X SPRING (84D) 1 |
5 K87-M2390-00X WIND ROLLER 1 ASSY 1 |
6 K87-M2394-10X GEAR |
7 K87-M2395-00X FLANGE 1 |
8 K87-M2396-00X ROLLER AXIS 1 |
9 K87-M2397-00X PLANE WASHER 3 |
10 K87-M239A-00X WIND ROLLER 2 ASSY 1 |
11 K87-M239E-00X GUIDE PLATE 1 |
12 K87-M439E-00X CONNECT ARM 1 |
13 K87-M239G-10X GEAR |
14 K87-M239H-00X LEVER METAL ASSY 1 |
15 K87-M239L-00X INDEX LEVER ASSY 1 |
16 K87-M439N-00X SPRING 1 |
17 K87-M2199-00X DRIVE GEAR ASSY 1 |
18 K87-M119J-00X THRUST WASHER 1 |
19 K87-M239U-00X SUB LEVER ASSY 1 |
20 K87-M239X-00X INDEX GEAR 1 |
21 K87-M239Y-00X PLANE WASHER |
22 K87-M111N-00X SCREW,CIRCULAR HEAD + 6 |
23 K87-M11BE-00X PLANE WASHER 4 |
24 K87-M23BJ-00X SCREW,FLAT HEAD + 3 |
25 K87-M11B2-00X SCREW,FLAT HEAD + 4 |
26 K87-M23BL-00X SCREW,TRUSS HEAD + |
27 K87-M11BC-00X SCREW,FLAT HEAD + 2 |
28 K87-M23BN-00X SCREW,IT + 1 |
29 K87-M11B9-00X CIRCLIP E |
K87-M43D0-00X REEL HOLDER ASSY 1 |
2 K87-M43D1-00X REEL PLATE ASSY 1 |
3 K87-M43D3-00X TAPE SIZE STICKER 1 |
4 K87-M11D7-00X CIRCLIP E 1 |
5 K87-M23DA-00X INDICATOR LEVER ASSY 1 |
6 K87-M43DD-00X REEL BRAKE LEVER 1 |
7 K87-M23DE-00X SPRING |
K87-M5310-00X BODY ASSY 1 |
2 K87-M1112-00X KNOCK PIN (FRONT) 1 |
3 K87-M116H-00X THRUST WASHER 1 |
4 K87-M5323-00X CAP 1 |
5 K87-M532D-00X COIL SPRING 1 |
6 K87-M5320-00X SUB LEVER ASSY 1 |
7 K87-M11B9-00X CIRCLIP E 4 |
8 K87-M532J-00X METAL 1 |
9 K87-M532L-00X PRESSURE RING 1 |
10 K87-M532K-00X CLAMP ELEMENT 1 |
11 K87-M532M-00X U NUT 1 |
12 K87-M53BP-00X SCREW,FLAT HEAD + 3 |
13 K87-M23B6-00X SCREW,FLAT HEAD + 5 |
14 K87-M531F-00X PUSH PIN 1 |
15 K87-M531B-00X PUSH PIN 1 |
16 K87-M531G-00X BACK STOPPER 1 |
17 K87-M531A-00X BACK STOPPER AXIS 1 |
18 K87-M5319-00X BACK STPPER SPRING 1 |
19 K87-M531E-00X STOPPER PIN 1 |
20 K87-M431G-00X LEVER ASSY 1 |
21 K87-M231F-00X PLATE 1 |
22 K87-M2316-00X THRUST WASHER 2 |
23 K87-M2317-00X CAP 1 |
24 K87-M5315-00X MAIN ARM 1 |
25 K87-M531C-00X HOOK 2 |
26 K87-M531D-00X SPRING 1 |
27 K87-M238D-00X SUB ARM 1 |
28 K87-M23B4-00X SCREW,SET 2 |
29 K87-M111V-00X SCREW,SET (84D) |
K87-M2313-00X KNOCK PIN (REAR) 1 |
2 K87-M5330-00X CLAMP LEVER ASSY 1 |
3 K87-M2335-00X CLAMP ROLLER 1 |
4 K87-M11D7-00X CIRCLIP E 1 |
5 K87-M5342-00X GUIDE AXIS 1 |
6 K87-M533A-00X GUIDE AXIS 2 |
7 K87-M5340-00X TAPE GUIDE ASSY 1 |
8 K87-M534A-00X LOCK LEVER ASSY 1 |
9 K87-M534F-00X SCREW, TRUSS HEAD + 2 |
10 K87-M23BG-00X ELBO CONNECTOR 1 |
11 K87-M53BH-00X HOS |
K87-M2381-00X CYLINDER 1 |
2 K87-M5382-00X CYL CONNECTOR 1 |
3 K87-M1184-00X CONNECT PIN 1 |
4 K87-M5384-00X MOVE PLATE 1 |
5 K87-M2385-00X METAL 1 |
6 K87-M2386-00X PLANE WASHER 1 |
7 K87-M2387-00X PLANE WASHER 2 |
8 K87-M5389-00X SET PLATE ASSY 1 |
9 K87-M238C-00X FASTEN PLATE 1 |
10 K87-M23B7-00X SCREW, TRUSS HEAD 2 |
11 K87-M43B8-00X SPEED CONTROLER 1 |
12 K87-M11B9-00X CIRCLIP E 3 |
13 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3 |
14 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3 |
15 K87-M23BC-00X PLANE WASHER 6 |
16 K87-M111S-00X SCREW FLAT HEAD + 2 |
17 K87-M538C-00X POSITION PLATE |
K87-M5360-00X BACK PLATE ASSY 1 |
2 K87-M536V-00X GUIDE PLATE 1 |
3 K87-M536F-00X PLATE 1 |
4 K87-M536T-00X ROLLER 7 |
5 K87-M536S-00X ROLLER AXIS 2 |
6 K87-M536R-00X PLATE 1 |
7 K87-M536W-00X ROLLER SHAFT ASSY 1 |
8 K87-M536X-00X ROLLER SET PLATE 1 |
9 K87-M536Y-00X ROLLER SHAFT 1 |
10 K87-M536J-00X ROLLER 1 |
11 K87-M21BN-00X SCREW NUT 4 |
12 K87-M21BM-00X SPRING LOCK WASHER 4 |
13 K87-M536P-00X SPRING 1 |
14 K87-M5390-00X WIND ROLLER 1 ASSY 1 |
15 K87-M5394-00X ROLLER 1 |
16 K87-M5395-00X GEAR 1 |
17 K87-M2395-00X FLANGE 1 |
18 K87-M5397-00X ROLLER AXIS 1 |
19 K87-M2397-00X PLANE WASHER 3 |
20 K87-M539A-00X WIND ROLLER 2 ASSY 1 |
21 K87-M5394-00X ROLLER 1 |
22 K87-M539C-00X GUIDE PLATE 1 |
23 K87-M539D-00X CONNECT ARM 1 |
24 K87-M539E-00X GEAR 1 |
25 K87-M239H-00X LEVER METAL ASSY 1 |
26 K87-M239L-00X INDEX LEVER ASSY 1 |
27 K87-M539M-00X SPRING 1 |
28 K87-M2199-00X DRIVE GEAR ASSY 1 |
29 K87-M119J-00X THRUST WASHER 1 |
30 K87-M239U-00X SUB LEVER ASSY 1 |
31 K87-M239X-00X INDEX GEAR 1 |
32 K87-M239Y-00X PLANE WASHER |
33 K87-M5399-00X FLANGE 2 |
34 K87-M111N-00X SCREW,SEMICIRCULAR HEAD + 4 |
35 K87-M11BE-00X PLANE WASHER 4 |
36 K87-M23BJ-00X SCREW,FLAT HEAD + 9 |
37 K87-M11B2-00X SCREW,FLAT HEAD + 4 |
38 K87-M11BC-00X SCREW,FLAT HEAD + 2 |
39 K87-M53BS-00X SCREW,SEMICIRCULAR HEAD + 2 |
40 K87-M111W-00X SCREW,SEMICIRCULAR HEAD + 2 |
41 K87-M55BJ-00X SCREW,TRUSS HEAD 1 |
42 K87-M23BN-00X SCREW,IT + 1 |
43 K87-M11B9-00X CIRCLIP E 1 |
