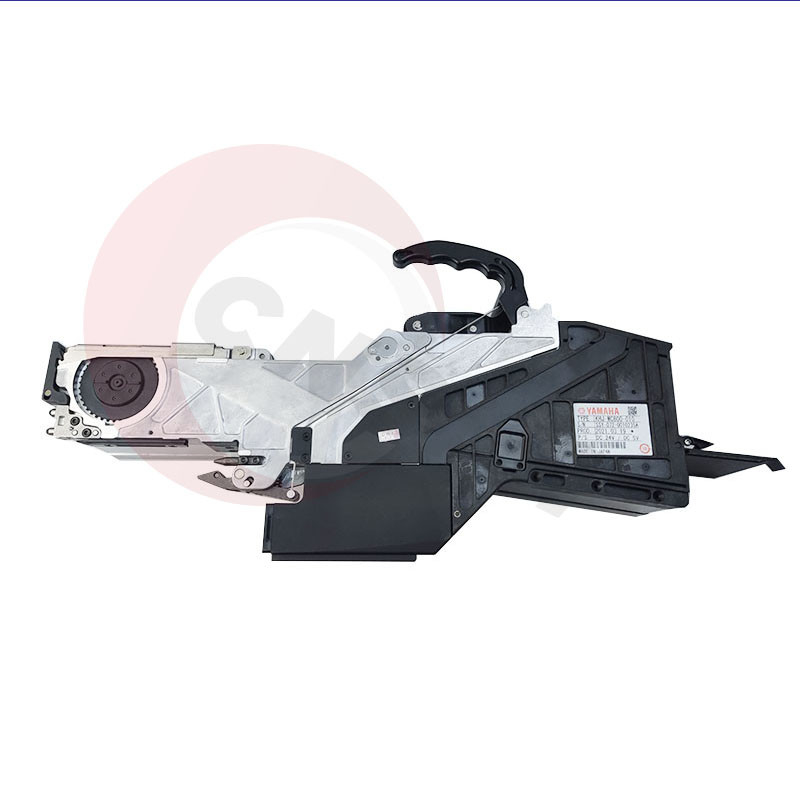

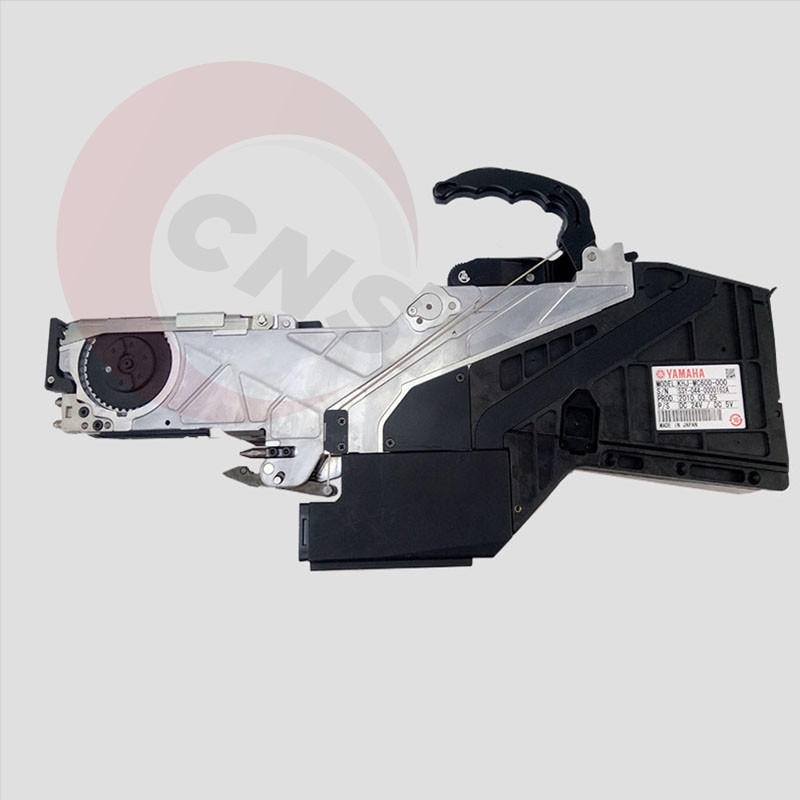

KHJ-MC500-000 YAMAHA YS12 YS24 SS32MM 44mm56mm Electronic feeder also can rent above 30days
Quick Detail
| KHJ-MC100-000 KHJ-MC100-003 YS |
| KHJ-MC200-000 YAMAHA12/16mm SS12MM |
| KHJ-MC400-000 KHJ-MC400-002 24MM |
| KHJ-MC500-000 YAMAHA32mm |
| KHJ-MC600-000 KHJ-MC600-001 |
| KHJ-MC700-000 SS 56MM FEEDER |
| VISKER YAMAHA YAMAHA |
| YAMAHA YV100X YV100XG |
| YAMAHA YS12 YS24 |
| KW1-M5500-014 KW1-M5500-01x CL32MM FEEDER |
| KW1-M6500-000 015 YAMAHA CL44MM FEEDER |
| KW1-M7500-015 YAMAHA CL56MM |
| Product Name: | yamaha ss32mm 44mm 56mm feeder |
| Used for: | yamaha ys12 ys24 yg12 pick and place Machine |
| Warranty: | 1 Year |
| Shipment | by air |
| Delivery Time: | 1-2Days |
| Our Main Market | Whole of the world |
for YAMAHA ys12 SURFACE MOUTER
ys24 ysm20 ysm40 Full line high speed pick and place machine
Advantage
| Our advantages | |
| 1 | 15 years experience on SMT Full Line Solution |
| 2 | 10years export experience |
| 3 | Professional after-sales team |
| 4 | over 3times inspect before shipment |
| 5 | Above 10times exhibition experience |
| 6 | Independent research and development peripheral Machines |
| 7 | Our business include SMT pick and place machines, printing presses, reflow welding, wave solder machine, loader and unloader, conveyor, AOI, SPI, and peripheral equipments |
| 8 | We also buy Used Machines And spare parts |
Descrition
KHJ-MC201-00 BODY,FEEDER 1
2 KHJ-MC202-00 COVER,FEEDER SIDE 1 1
3 KHJ-MC20C-00 SEAL,MAIN LABEL 1
4 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
5 KHJ-MC210-00 MOTOR, FEED 1
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC238-00 GEAR,DRIVEN 1
11 KHJ-MC239-00 SHAFT,IDLE GEAR 1 3
12 KHJ-MC23B-00 BUSH,SPROCKET 1
13 KHJ-MC23C-00 PLATE,PUSHER GEAR 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC13F-00 SCREW,STAD 4
16 KHJ-MC13P-00 SPACER,F3 1
17 KHJ-MC23G-000 SHAFT,GEAR DRIVEN 1
18 KHJ-MC206-00 PLATE,UNDER 1
19 KHJ-MC261-00 BOX,TOP TAPE 1
20 KHJ-MC262-00 COVER,TOP TAPE BOX 1
21 KHJ-MC165-00 MAGNET,TAIL 1
22 KHJ-MC266-00 BLOCK,P/O TOOTH 1 1
23 KHJ-MC16J-00 SCREW,FLAT HEAD 11
24 KHJ-MC26L-00 PLATE,GUIDE 1 1
25 KHJ-MC26M-00 PLATE,GUIDE 2 1
26 KHJ-MC26N-00 PLUNGER 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 3
28 KHJ-MC26U-00 TAIL COVER ASSY. 1
29 90166-02JA03 SCREW,PAN HEAD 2
30 98707-03006 SCREW,FLAT HEAD 3
31 99480-03010 PIN,PARALLEL 3
32 KHJ-MC26U-S0 PARTS, TAIL COVER 1
33 KHJ-MC262-S0 PARTS, BOX COVER
KHJ-MC20C-00 SEAL,MAIN LABEL 1
2 KHJ-MC132-00 SPROCKET 1
3 KHJ-MC23A-00 SHIM,SPROCKET 1
4 KHJ-MC23E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC241-00 TAPE GUIDE ASSY. 1 Fig1
5-1 KHJ-MC241-01 TAPE GUIDE ASSY. 16 1 Fig2 (2008/5/16) NG
5-2 KHJ-MC241-02 TAPE GUIDE ASSY. 16 1 Fig3 (2008/11/18) OK
5-3 KHJ-MC241-03 TAPE GUIDE ASSY. 16 1 16mm Use (2009/2/23) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC245-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC245-01 LEVER,TAPE GUIDE F 1 (2009/2/23) NG
8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/2/23) NG
10 KHJ-MC167-00 COVER,MENBRANE 1
11 KHJ-MC16J-00 SCREW,FLAT HEAD 11
12 KHJ-MC26K-00 COVER,MENBRANE 2 1
13 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14 KHJ-MC1AA-00 SWITCH,OPERATION 1
15 KHJ-MC24D-00 PLATE,GUIDE 12 1
16 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
17 98707-03006 SCREW,FLAT HEAD 5
18 92A08-03303 SET SCREW M3X3 5
19 99480-04022 PIN,PARALLEL 2
20 KHJ-MC24J-00 TAPE GUIDE ASSY.12 1 Fig2 (2008/5/17)
20-1 KHJ-MC24J-01 TAPE GUIDE ASSY.12 1 Fig3 (2008/11/18) OK
20-2 KHJ-MC24J-02 TAP
