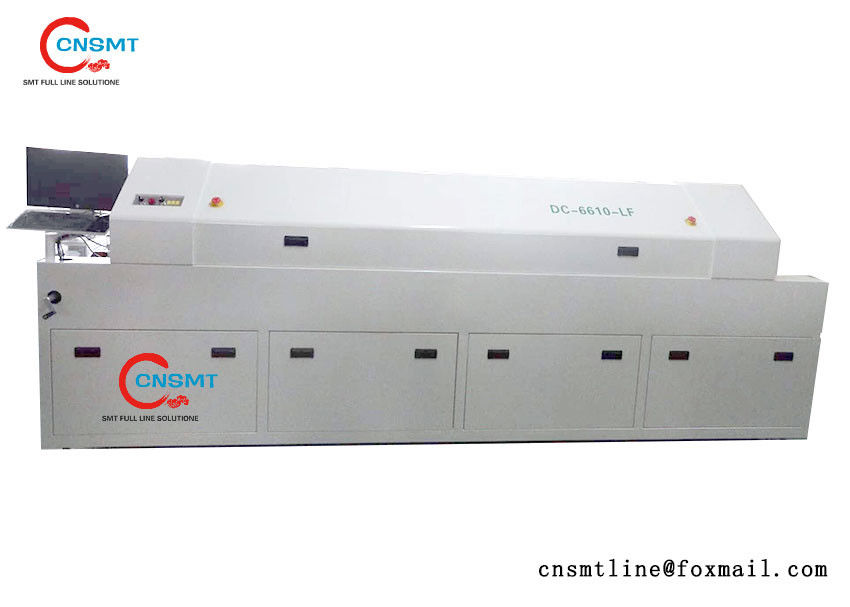

220V / 110V SMT LED Wave Soldering Machine PLC Controlling With 6 Heat Zone
Brand | Cnsmt | MODEL | Dc6510 |
---|---|---|---|
Weight | 2000KG | Lead Time | IN Stork |
Packing | Woodenbox | CONdition | Working |
POWER | 220V 110V | PAYMENT TERM | T/T, Paypal, Westernunion Are All Allowed |
High Light | heller reflow oven,table top reflow oven |
SMT Reflow Oven LED wave Soldering Machine With 6 Heat Zone from cnsmt
Product Feature:
Brand LCD computer and PLC controlling system, temperature accuracy is ±1℃; the reflow oven can continue manufacture offline and when computer crashes unexpectedly; that can ensure system more stable and reliable.
Windows menu screen shot, powerful functions and simple operation.
Equipped with tension device in mesh system, smooth transmission, no shock, no deformation and those will make PCB running stably.
t is synchronous chain transportation structure (which can connect automatic pick and place machine online) in the machine, that will ensure accurately width adjustment and long using life.
Automatic lubrication system is designed in the reflow oven; filling time and amount can be set and then lubricate transmission chain automatically according to setting.
All heating zones are controlled by computer and PID, Every temperature zone can be set and started independently.
Mesh/Chain transmission system is controlled by computer, it is closed loop; all kinds of PCBs can be manufactured at same time.
Sound and light malfunction alarm system is applied in GLICHN reflow oven.
There is leakage protection to ensure operators and machine safe.
Build-in UPS and automatic delay system are designed in the reflow oven, which will avoid damage PCB and reflow ovens when power off or over heating.
Hot air circulation heating technology from HELLER has been applied, fast air vents improve greatly hot air flow, warm up will be fast and time is 20 min; high thermal compensation, it is suitable for high temperature soldering and curing.
Separate temperature sensors have been designed in every temperature zone, which is used to monitor and compensate temperature balance at real time. (Separate temperature sensors is optional)
To protect operators set, password can be set in operation system; software can save current temperature and speed setting and relate temperature curves, all data and reports can be printed.
Equipped with online temperature measurement system for three temperature zones, it can measure and monitor real temperature at any time.
Urgent cooling system is designed in reflow oven, with magnifying focus urgent cooling, the speed rate is up to 3.5~6℃/s; outside force cooling device can make soldering effect. (Force air cool system is standard design)
Special fan structure and abnormal heating wires design are used in the reflow oven; no noise, no vibration, high heating exchange, it is little temperature difference between BGA bottom and PCB boards. It is best for lead free soldering.
Specification:
Model | R50CD | R50MD (Meter)) | R40CD | R40MD |
Heating parameters | ||||
Heating zones | Upper 5/lower 5 | Upper 5/lower 5 | Upper4/lower 4 | Upper 4/lower 4 |
Length of heating zone | 1730mm | 1730mm | 1400mm | 1400mm |
Conveyor parameters | ||||
PCB width | Chain 300mm, mesh 350mm | |||
Conveyor chain width range | 50-300mm | |||
PCB direction | L→R or (R→L) | |||
Chain fixing | Front fix(back fix is optional) | |||
Conveyor height | Mesh 880±20mm,Chain 900±20mm | |||
PCB Enter the plate height | Mesh ≤ 50mm,Chain ≤30mm | |||
Transmission method | mesh and chain | |||
Conveyor speed | 0-2000mm/Min | |||
Controlling parts | ||||
Power supply | 5wires 3phase 380V 50/60Hz | |||
Start power | 12KW | 12 KW | 10KW | 10KW |
Work power | Approx.4KW | Approx.4.5KW | Approx.5KW | Approx.6KW |
Warm up time | About 20 min | |||
Temperature range | Room Temper ature-400℃ | |||
Temperature control | Computer/Meter PID closed-loop controlling, SSR drive | |||
Machine control | Computer/Meter | |||
Temp accuracy | ±1℃ | |||
Temp deviation | ±2-3℃ | |||
Cooling | Air cool | |||
Alarm | Abnormal temperature (over high/low) | |||
Three color light | Three colors light: | |||
Machine size | ||||
Weight | Approx. 410Kg | Approx.400Kg | Approx.360Kg | Approx.350Kg |
Machine size (mm) | L3100*W750*H1400 | L3100*W750*H1400 | L2600*W750*H1400 | L2600*W750*H14 |
