CNSMT SUPPLY YAMAHA YV100X YV100XG YV100XGP YV180XG YV88XG dual and single head pick and place machine

  • CNSMT SUPPLY YAMAHA YV100X YV100XG YV100XGP YV180XG YV88XG dual and single head pick and place machine
Place of Origin China
Brand Name CNSMT
Certification CE
Model Number yv100
Minimum Order Quantity 1
Price negotiation
Packaging Details Woodenbox
Delivery Time 1-2 work days
Payment Terms T/T, Western Union,paypal
Supply Ability 10pcs/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Yv100 Dimensions 1450x1450x1600mm
Voltage 110V/220V Weight 1560.0257Kg
Lead Time 1-2days Application Smt Pick And Place Machine
High Light

smt assembly machine

,

smt aoi machines
Leave a Message
Product Description

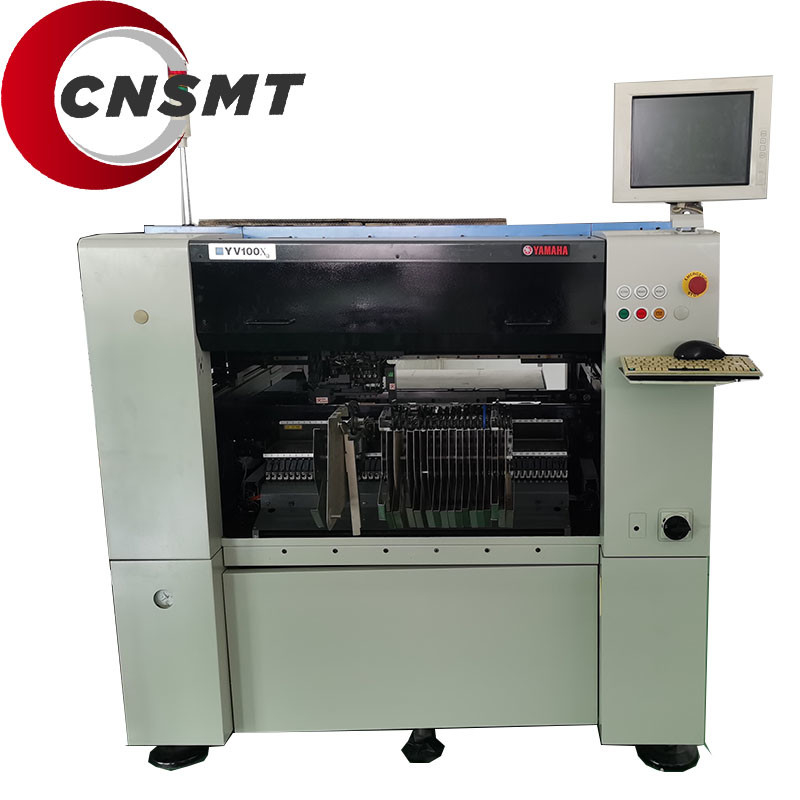

CNSMT SUPPLY YAMAHA YV100X YV100XG YV100XGP YV180XG YV88XG dual and single head pick and place machine

CNSMT SUPPLY YAMAHA YV100X YV100XG YV100XGP YV180XG YV88XG dual and single head pick and place machine



1. High-speed high-precision multi-function modular placement machine
2.0.18 seconds / CHIP super high speed placement (optimal conditions) 16200CPH (grain / hour)
3. In IPC9850 state, the patch speed is up to 16200CPH (equivalent to 0.22 seconds / CHIP)
4. Mount 0603 components, the whole process accuracy is up to ±50 microns, the repeatability is up to ±30 microns
5. Wide range of applications, from 0201 (imperial) micro components to 31mm QFP large components
6. Use 2 high resolution multi-vision digital cameras
7. Continuously identify the entire solder ball of the CSP/BGA component, including the judgment of the defect of the solder ball.
8. Optional YAMAHA patented flight change nozzle can effectively reduce machine idle loss
9. The best choice for universal popularity
10. The Y-axis is driven by high-power servo cymbals and high-rigidity screw rods at the left and right ends. This newly developed fully fixed dual-drive technology improves acceleration and drives through coordinated synchronization at both ends, improving the acceleration function. Reduced positioning time.
Substrate size M type: L460*W335(MAX)-L50*W50(MIN)
L type: L460*W440(MAX)-L50*W50(MIN)
Mounting accuracy Absolute accuracy (μ+3σ): ±0.05mm/chip, ±0.05mm/QFP
Placement speed 0.18 seconds / CHIP 1.7 seconds / QFP, 1608 / CHIP: 16200CPH
Mountable components 0603-31mm components, SOP/SOJ/QFP/connector/PLCC/CSP/BGA
Dimensions 1650*1408*1900
Host weight 1600KG


Company Information:

Shenzhen SMTLINE Technology Co., Ltd. was established in June 2005
1.registered capital of 6 million yuan and more than 60 employees.
2.The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
3.Our company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.
4.The sales volume of products reached more than 200 units in half a year.
5.Our philosophy: integrity, strength first, wholeheartedly for the customer.
6.Our company adhering to the customer first, service-oriented business philosophy,
benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.



Business Scope:
1.Buy and sells SMT pick and place machines(YAMAHA JUKI FUJI,SAMSUNG,PANASONIC,,SIEMENS,ASSEMBLON,Mirae, SONY,...
2.SMT Full-auto printer&semi-auto printer
3.SMT reflow oven& wave solder machine
4.SMT loader and unloader
5.SMT conveyor
6.AOI, SPI
7.SMT peripheral equipment.
8.Insert machine
9.Machine spare parts such as feeders nozzles
10.Full line solution service
