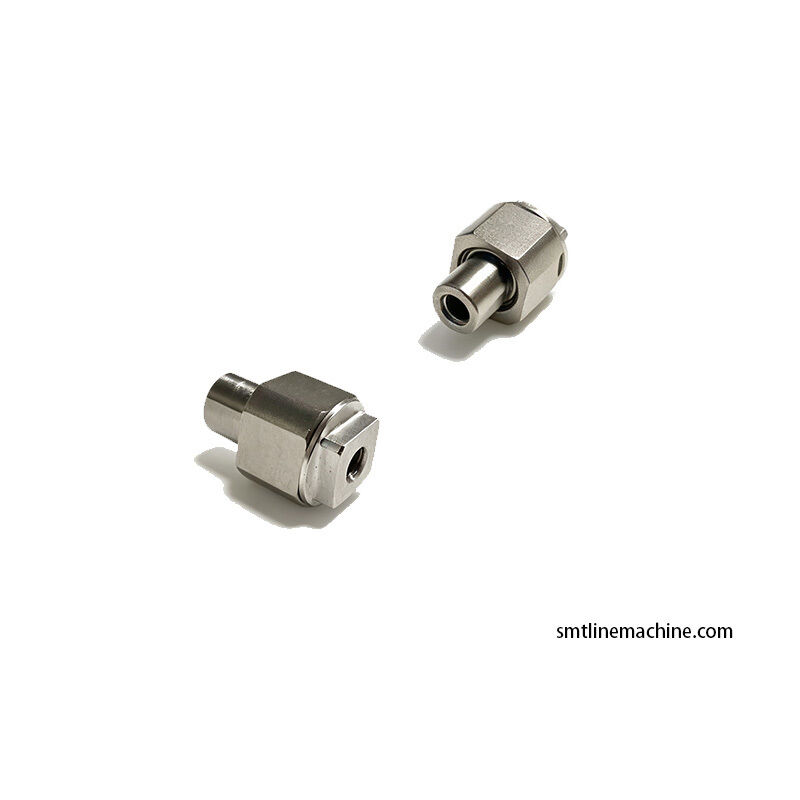

AM03-007198A Hanwha Head-R Joint Assy for SM482PLUS SMT Placement Machine
-
Highlight
Hanwha Head-R Joint Assy
,SM482PLUS SMT placement machine part
,Samsung spare parts with warranty
-
Place of OriginKOREA
-
Brand NameHANWHA
-
CertificationCE-AM03-007198A
-
Model NumberAM03-007198A
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union
AM03-007198A Hanwha Head-R Joint Assy for SM482PLUS SMT Placement Machine
AM03-007198A Hanwha Head-R Joint Assembly for SM482PLUS SMT Placement Machine
AM03-007198A is a compatible joint assembly for the right placement head of Hanwha SM482PLUS SMT placement machine. This precision mechanical assembly features minimal transmission clearance, strong operational rigidity, and excellent fatigue and wear resistance.
Technical Specifications
| Part Number | AM03-007198A |
|---|---|
| Product Name | Hanwha Head-R Joint Assembly |
| Applicable Equipment | Hanwha SM482PLUS SMT Placement Machine |
| Brand | HANWHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Mounted on the right placement head of SM482PLUS placement machine, this rotary transmission joint drives nozzle shaft rotation to achieve component angle correction. It transmits rotary power while ensuring placement angle precision and absorbs impact from high-speed motion. Used for replacement when joints exhibit wear clearance, abnormal noise, or angle deviation to stabilize placement quality.
Core Functions
- Transmit rotary driving force to drive nozzle spindle rotation and adjust component angle
- Precision fit structure controls rotary angle error and prevents component placement skew
- Absorb impact during high-speed rotation start and stop cycles, reducing vibration and abnormal noise to protect head mechanism
- Direct replacement for worn assemblies, repairing angle deviation and jamming faults to minimize downtime
Product Overview
AM03-007198A Hanwha Head-R Joint Assembly for SM482PLUS is a precision core transmission spare part for the right placement head. It facilitates nozzle shaft rotation and component angle correction for the placement head, featuring high rigidity and minimal transmission clearance while resisting deformation under long-term high-speed operation. Replacing worn joint assemblies can resolve placement angle offset, head abnormal noise, and poor mounting defects, maintaining high-speed placement accuracy of SMT lines as a critical maintenance spare part.
